| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | DZCR400-16 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | about 20~30 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 100 sets per month for this multi-layer plate and frame filter |
| Filter Area: | 2 | Plate And Frame Diameter: | 400mm |
|---|---|---|---|
| Filter Plate And Number Number: | 16 | Filtrating Pressure: | 0.15Mpa |
| Motor Power: | 1.1kw | Filter Medium: | Filter Cloth,filter Paper,filter Membrane Etc. |
| Filter Plate Material: | Stainless Steel | Filter Plate Shape: | Round |
| Filter Plate Structure: | Thread-like Structure | Sealing Type: | Silicone Rubber Seals |
| Feeding Device: | Pump | Filter Cake Discharge Method: | Manual |

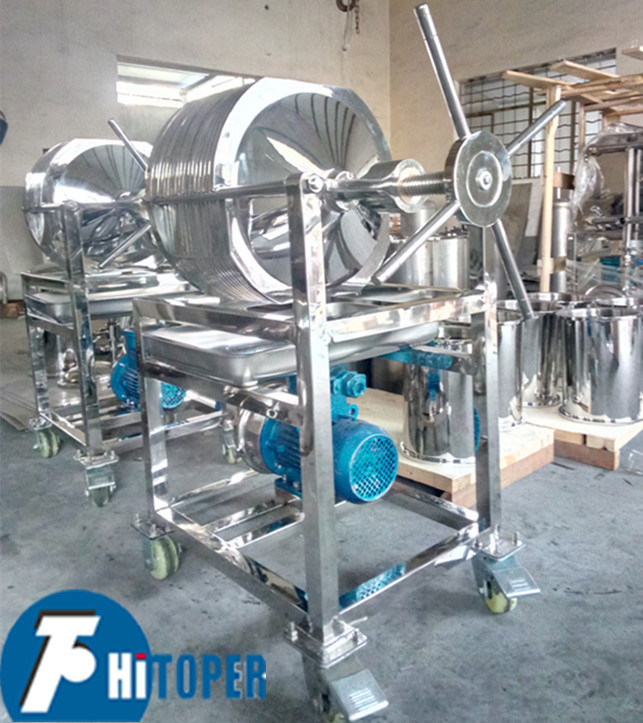

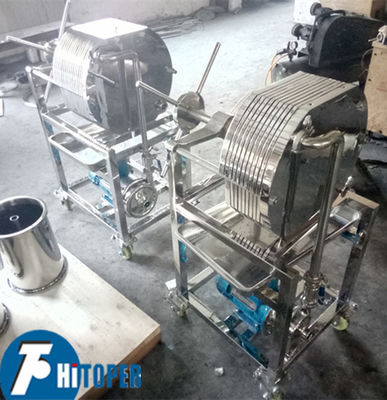

Durable Plate and Frame Filter Suitable for Juice Treatment and Various Suspension Filtration Applications in Multiple Industries
This multi-layer plate and frame filter is used for various suspension of solid-liquid separation with a wide range of applied in food, chemical, environmental protection, water treatment, electronic, textile, electroplating and other related industries.
This filter is made with high quality 304 or 316L stainless steel material. The structure is closed, and uses the two-sided trawl doors, can make return washing process, makes the membrane without the residue to separate the thick and thin filtration, according to needs of flow capacity, to increase or reduce layers such characteristics.
Suspension goes into the filter room with the help of a pump , due to pressure, the filtrate through the filter layer and the membrane or other filter, is discharged out of fluid discharge outlet, the residues were kept in the room formed by plate and frame, to achieve solid-liquid separation.
Technical parameters:
|
Model |
Layer |
Filter area ( m2) |
The size of filter material (mm) |
Filter precision (μm) |
Filtration pressure (MPa) |
Water flow (t/h) |
Motor power (KW) |
Overall dimension (mm) (L×W×H) |
| DZCR-100 | 10 | 0.078 | Ф100 | 0.8 | 0.15 | 0.8 | 0.55 | 600×300×600 |
| DZCR-150 | 10 | 0.17 | Ф150 | 0.8 | 0.15 | 1.5 | 0.75 | 650×380×650 |
| DZCR-200 | 10 | 0.34 | Ф200 | 0.8 | 0.15 | 2 | 1.1 | 650×400×700 |
| DZCR-300 | 10 | 0.7 | Ф300 | 0.8 | 0.15 | 4 | 1.1 | 700×500×800 |
| DZCR-400 | 10 | 1.25 | Ф400 | 0.8 | 0.15 | 6 | 1.1 | 900×600×1000 |
| DZCR-400 | 16 | 2 | Ф400 | 0.8 | 0.15 | 9 | 1.5 | 1000×600×1000 |
| DZCR-400 | 20 | 2.5 | Ф400 | 0.8 | 0.2 | 10 | 1.5 | 1100×600×1000 |
| DZCR-400 | 32 | 4 | Ф400 | 0.8 | 0.3 | 13 | 2.2 | 1320×600×1000 |
Features:
1. The filter is made of SUS304 or SUS316L stainless steel material, corrosion-resistant durability.
2. Plate is with thread-like structure, according to different filter media and the production process(initial filter, semi-filter, fine filter) to replace a different filter material (direct use sterile filtration membrane to achieve the purpose).
3. All parts of the machine sealed use silicone rubber seals, high temperature, non-toxic, no leakage, good sealing performance.
Toper's service for the customer:
1. We provide our customer with a suitable filter machine in accordance with all kinds of essential information such as the material name, handling capacity, solids content, filtering temperature, and the PH value, etc.Based on customer requirements, we can offer a planar graph to help our clientele have a further understanding of equipment construction.In addition, we can provide customers with sewage treatment solutions, and also undertake turn-key projects.
2. During the make-to-order manufacturing process, we can timely inform customers of the equipment production schedule. Also, we can send the related photos to our clients.Once the equipment is completed, we will send the photos of final products to our customers. Then, we inform customers that their cargos are ready to be delivered.
3. After receiving an order, we will deliver an equipment installation drawing to our customer in advance. Then, our customer can timely arrange space required by the equipment.In accordance with customer requirements, we can dispatch engineers to assist customers in installing and testing the equipment. Also, our engineers offer training courses for operators.We pay a visit to our customers at regular intervals, so as to know the equipment operation. Based on different situations, we offer a suggestion to guarantee smooth operation of the equipment.
