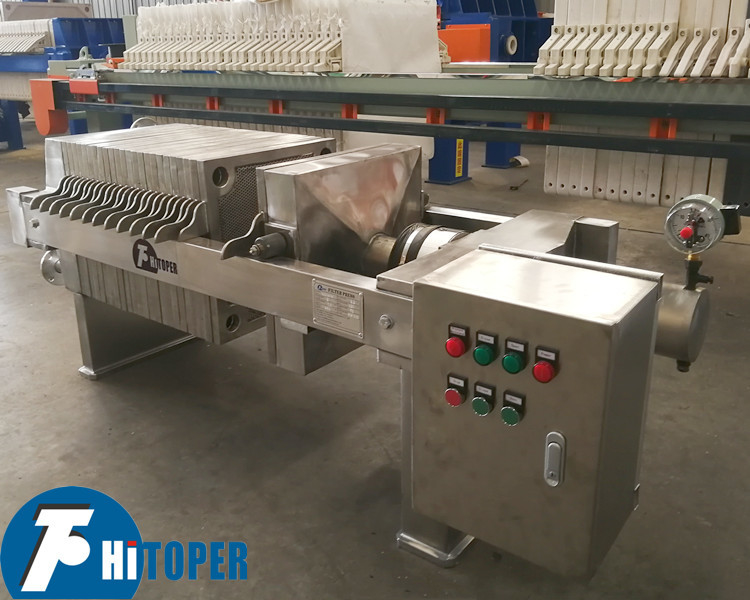

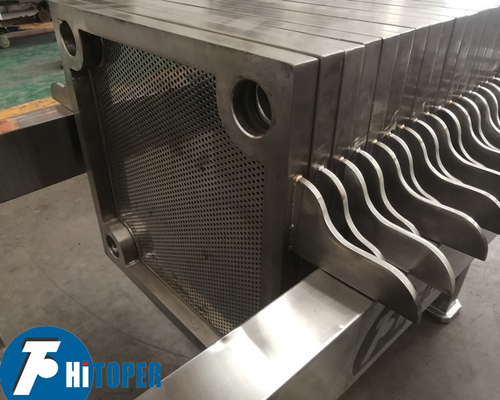

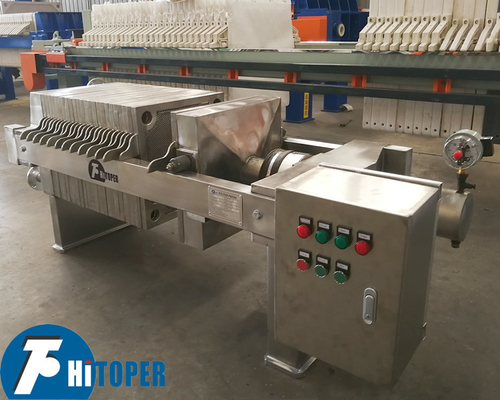

450x450mm SS304 Plate Food Oil Industry Used Hydraulic Compress Separator

450x450mm SS304 Plate Food Oil Industry Used Hydraulic Compress Separator

    • 450x450mm SS304 Plate Food Oil Industry Used  Hydraulic Compress Separator
    • 450x450mm SS304 Plate Food Oil Industry Used  Hydraulic Compress Separator
  • 450x450mm SS304 Plate Food Oil Industry Used  Hydraulic Compress Separator

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: BAY5/450-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD7950/SET
    Packaging Details: Export standard wooden package.
    Delivery Time: 15 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 100 sets per month for this industrial filter press
    Contact Now
    Detailed Product Description
    Filter Area: 5 Square Meter Filter Plate: 450x450mm
    Chamber Volume: 75 Liters Plate Number: 14 Pieces
    Filtrating Pressure: 0.6Mpa Cake Discharge: Manually
    Power: 2.2kw Press Type: Hydraulic System
    Material Of Plate: SS304

    450x450mm SS304 Plate Food Oil Industry Used Hydraulic Compress Separator



    Stainless Steel Filter Press is used for the solid-liquid separation of all kinds of suspension, widely applied to mine, food, environmental protection, light industry, medicine, chemical industry, metallurgy, petroleum industry, etc. Especially suitable for the fine filter and sterile filtration of large quantities of beer, liquor, wine, edible oil and other liquid drink.





    Operation principle:

    The work principle and structure characteristics of stainless steel plate and frame filter press: Suspension is pumped into every recessed chamber by feeding pump, Under the pressure of filter press, filtrate infiltrates through filter layer and filter cloth and outflows from outlets. Solids are kept in frame plate to accomplish solid-liquid separation.



    Advantages of liquid filter press

    1.Good sealing and no leakage

    2.Inodorous and atoxic

    3.Long performance life

    4.Acid an Alkaline resistance

    5.High temperature resistance





    Applicaion:



    It is suitable for variety suspension's solid-liquid separation. It is widely used in food, environmental protection, light industries, medicine, chemical industry, metallurgy, oil and other industries. It is especially suitable for large quantities of beer, liquor, wine, cooking oil and other liquid beverage fine filter or sterilization filter.



    Technical parameter:



    Type

    Filter area

    (m2)

    Filter plate size

    (mm)

    Filter cake thickness

    (mm)

    Filter chamber volume

    (L)

    Filter plate number

    (PCS)

    Filtrating pressure

    (MPa)

    Motor power

    (KW)

    Weight

    (Kg)

    Dimension (mm)

    (L×W×H)

    XY4/450-30U 4 450×450 30 60 9 0.6 2.2 860 1950×700×900
    XY6/450-30U 6 91 14 910 2200×700×900
    XY8/450-30U 8 121 19 960 2450×700×900
    XY10/450-30U 10 151 24 1010 2700×700×900
    XY12/450-30U 12 182 29 1060 2950×700×900
    XY15/450-30U 15 225 36 1130 3300×700×900
    XY16/450-30U 16 243 39 1160 3450×700×900
    XY15/630-30U 15 630×630 226 18 1725 2640×900×1100
    XY20/630-30U 20 297 24 1993 3940×900×1100
    XY30/630-30U 30 452 37 2360 3590×900×1100
    XY40/630-30U 40 595 49 2788 4300×900×1100
    XY30/800-30U 30 800×800 460 23 2170 3700×1400×1300
    XY40/800-30U 40 595 30 2450 4300×1400×1300
    XY50/800-30U 50 748 38 2700 4840×1400×1300
    XY60/800-30U 60 902 46 2980 5440×1400×1300
    XY70/800-30U 70 1056 54 3250 6040×1400×1300
    XY30/870-30U 30 870×870 460 23 2580 3180×1200×1300
    XY40/870-30U 40 595 30 2925 3570×1200×1300
    XY50/870-30U 50 748 38 3318 4110×1200×1300
    XY60/870-30U 60 902 46 3712 4550×1200×1300
    XY70/870-30U 70 1056 54 4106 4990×1200×1300
    XY80/870-30U 80 1210 62 4561 5430×1200×1300





    450x450mm SS304 Plate Food Oil Industry Used  Hydraulic Compress Separator





    All of our products as below:



    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press

    15. SS type three-foot upper discharge centrifuge

    16. SD type three-foot and filter bag hoist discharge centrifuge

    17. PD type filter bag hoist discharge centrifuge

    18. Centrifuge of up discharge, three foot, clean series SSB, SB

    19. SX type manual top discharge centrifuge

    20. PS type manual top discharge centrifuge

    21. SGZ type automatic scraper bottom discharge centrifuge

    22. PGZ type scarper bottom discharge centrifuge

    23. LW series decanter centrifuge

    24. Tubular centrifuge

    25. Multi-layer stainless steel frame filter

    26. Bag filter

    27. Diatomite filter

    28. Filter plate

    29. Filter cloth

    30. Vacuum disc filter
