| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | BAY5/450-25 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD7950/SET |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 100 sets per month for this industrial filter press |
| Filter Area: | 5 Square Meter | Filter Plate: | 450mm Of Square One |
|---|---|---|---|
| Chamber Volume: | 75 Liters | Plate Number: | 14 Pieces |
| Filtrating Pressure: | 0.6Mpa | Cake Discharge: | Manually |
| Power: | 2.2kw | Press Type: | Hydraulic System |
| Material Of Plate: | SS304 |

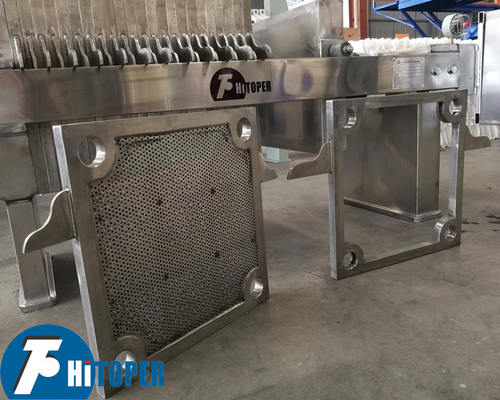

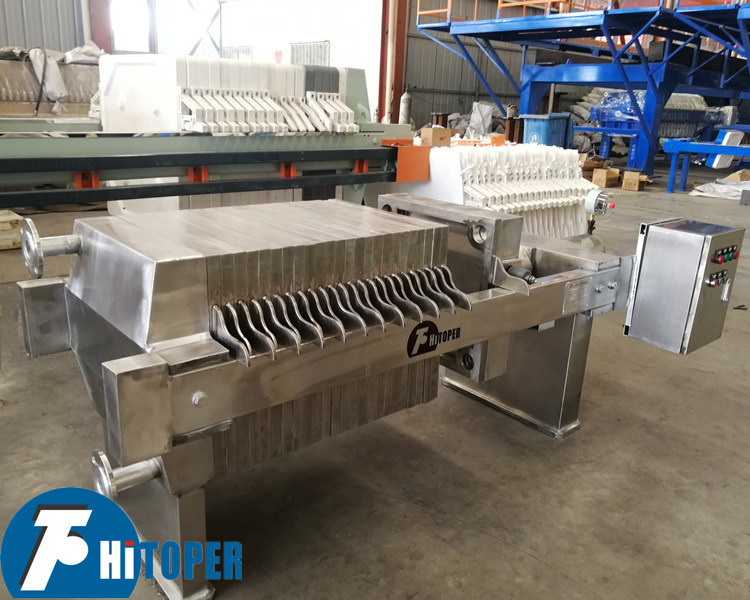

450*450mm SS304 filter plate chamber type separator press used in food industry
Our company produces various models of recessed filter press and plate & frame filter press, hydraulic filter press, membrane filter press and full-automatic filter press and various spare parts. And small filter presses are better used for small capacity and space-limited customers and pilot plant, also have received their best reputation.
Filter plate of these small filter presses are made of SS304 through mold pressing, high in strength, light in weight, corrosion resisted, non-poisonous and odorless. All devices of these hydraulic filter presses including feed pump, hydraulic power pack, plate shifting device, valves and conveyors are guided by the logic in PLC, and make them work more efficiently.
Applicaion of this filter press:
Chemicals: dyes, pigments, titanium dioxide, manganese, caustic soda, soda ash, chlor-alkali salt mud, white carbon black, saponin, graphite, bleach, Synaptic powder phosphor, sodium hydrosulfite, potassium chlorate, sulfuric acid
Medicine: antibiotics (chlortetracycline, erythromycin, spiramycin, Jinggangmeisu Midecamycin, tetracycline, berberine, oxytetracycline), calcium phytate, traditional Chinese medicine inositol, growth derived sand, organic phosphorus glucoamylase.
Food: rice wine, white wine, fruit juice, beverage, beer, yeast, citric acid, vegetable protein, plant density sweetener, glucose, stevioside, malt sugar, starch, rice flour, corn syrup, gum, carrageenan, monosodium glutamate, spices, sauce, liquid, oral liquid, soy milk, seaweed.
Metallurgy: gold, silver, copper, iron ore, rare earth powder, not to send mine.
Refining: white oil, sesame oil, light oil, glycerin, mechanical oil, vegetable oil.
Of clay: kaolin, Run land, activated earth, china clay, ceramic soil.
Sewage treatment: Chemical sewage, smelting wastewater, plating wastewater, leather waste, printing and dyeing wastewater brewing wastewater, pharmaceutical wastewater, environmental sewage, etc
Technical parameter of this industrial filter press:
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
| XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
| XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
| XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
| XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
| XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
| XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
| XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
| XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
| XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
| XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
| XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
| XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
| XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
| XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
| XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
| XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
| XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
| XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
| XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
| XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
| XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
All of our products as below:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter plate
29. Filter cloth
30. Vacuum disc filter
