| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XG15/870-30U |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Best factory price |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 20-30 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 500 sets per month for this membrane filter press |
| Filter Area: | 15m2 | Filter Plate Size: | 870*870mm |
|---|---|---|---|
| Filter Chamber Volume: | 225L | Filter Number: | 13pcs |
| Filtrating Pressure: | 0.6Mpa | Motor Power: | 4.0kw |
| Nice Function: | Second Squeeze Function To Give A Lower Cake Moisture. | Color: | As You Need. |
| Plate Material: | PP + TPE | Filter Medium: | Filter Cloth, Filter Cardboard ,filter Paper |
| Voltage: | 380V/220V /400-450V/Customized | Compress Type: | Hydraulic Compress |
| Plate Open Type: | Automatic Mechanical Open Type | Conditon: | New |

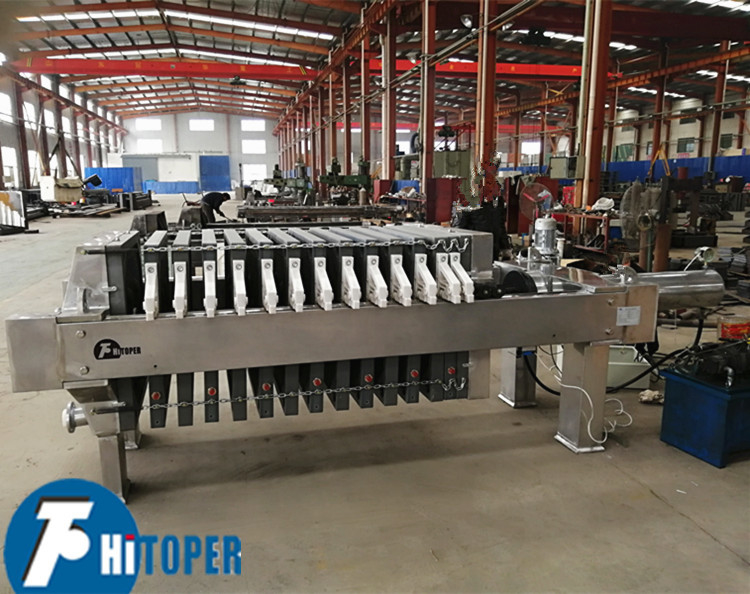

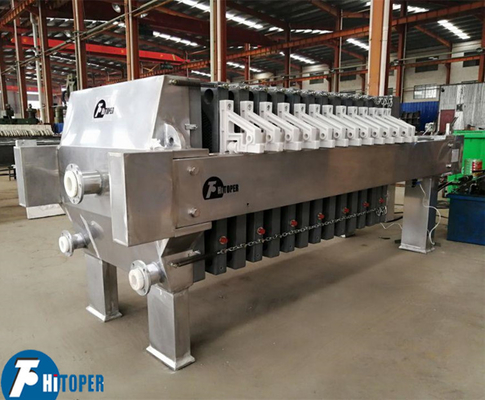

Best Sale Edible Oil Filter Machine, Membrane Filter Press For Oil Treatment
Our company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. And membrance filter press has received a very good reputation.
This industrial filtration products-membrane filter press consists of membrane plate and filter chamber made of ordered filter plates. The slurry materials are sent to filter chamber by the pressure of feeding pump and then go into filtrating media(filter cloth) to separate solid and liquid in slurry material.When solid in slurry material becomes cake shape, air is sent to membrane to fully squeeze the solid to reduce moisture content. If users have high requirement about filtration of sticky material and moisture content ratio, this machine has its own special characteristics to meet the need.
Two effective characteristics of this membrane filter press,
Improved Cake Washing: Our membrane chamber filter presses improve cake washing by initiating a low-pressure pre-squeeze before the wash cycle is begun. This pre-squeeze eliminates channeling (cracks and less well-formed areas of the cake) and produces a uniform, homogeneous filter cake and optimum wash efficiency.
Highest Cake Solids: By applying a high pressure squeeze to the filter cake you can produce the final cake with solids content from 50 to 100% greater than can be achieved with conventional filter presses. This is important for both maximum yield, where a high value liquid is your product, or high solids-content, where reduced moisture in the final cake is critical.
Application of this membrane fitler press,
Effluent treatment plants: Textile, Paper, Leather, Jute, Sewages, Industrial and municipal waste water.
Ceramics: Clay, Porcelain, Fine earth, Marble and Granite.
Metallurgy: Electroplating and Electro Polishing, Steel Mill Waste, Nickel, Copper, Zinc Lead, Silver.
Pharma Industries: Antibiotic, Syrup, Intermediates and Bulk Drugs.
Chemical Industries: Basic Chemicals, Organic and Inorganic, Resins
Starch, Enzymes, Pesticides, Activated Clay, Phosphoric compounds, Marine Chemicals.
Dye Stuffs: Pigments, Dyes, Intermediates.
Food Industries: Vegetable Oils, Cane Juice, Food Colors Soups, Distilleries, Dairies and Hotels.
All technical data of our membrane filter press:
|
Type |
Filter area(m2) | Filter plate size(mm) | Filter cake thickness(mm) | Filter chamber volume(L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H)(mm) |
| XG30/870-30U | 30 | 870×870 | 30 | 427 | 23 | 0.6 | 4.0 | 2680 | 3490×1250×1300 |
| XG40/870-30U | 40 | 534 | 29 | 3050 | 3880×1250×1300 | ||||
| XG50/870-30U | 50 | 676 | 37 | 3465 | 4400×1250×1300 | ||||
| XG60/870-30U | 60 | 818 | 45 | 4003 | 4920×1250×1300 | ||||
| XG70/870-30U | 70 | 960 | 53 | 4584 | 5240×1250×1300 | ||||
| XG80/870-30U | 80 | 1103 | 61 | 5082 | 5760×1250×1300 | ||||
| XG50/1000-30U | 50 | 1000×1000 | 665 | 27 | 0.6 | 4.0 | 4352 | 4270×1500×1400 | |
| XG60/1000-30U | 60 | 808 | 33 | 4480 | 4770×1500×1400 | ||||
| XG70/1000-30U | 70 | 950 | 39 | 5263 | 5130×1500×1400 | ||||
| XG80/1000-30U | 80 | 1093 | 45 | 5719 | 5560×1500×1400 | ||||
| XG100/1000-30U | 100 | 1378 | 57 | 6555 | 6410×1500×1400 | ||||
| XG120/1000-30U | 120 | 1663 | 69 | 7466 | 7260×1500×1400 |
| Type |
Filter area (m2) |
Filter plate size(mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H) (mm) |
| XGZY80/1250-35U | 80 | 1250×1250 | 35 | 1364 | 29 | 0.6 | 4.0 | 10900 | 4830×1800×1600 |
| XGZY100/1250-35U | 100 | 1680 | 37 | 11750 | 5440×1800×1600 | ||||
| XGZY120/1250-35U | 120 | 2092 | 45 | 12600 | 6060×1800×1600 | ||||
| XGZY150/1250-35U | 150 | 2547 | 55 | 13620 | 6820×1800×1600 | ||||
| XGZY160/1250-35U | 160 | 2729 | 59 | 14470 | 7130×1800×1600 | ||||
| XGZY200/1250-35U | 200 | 3457 | 73 | 15320 | 8200×1800×1600 | ||||
| XGZY240/1250-35U | 240 | 4093 | 89 | 16170 | 9420×1800×1600 | ||||
| XGZY250/1250-35U | 250 | 4276 | 91 | 17020 | 9570×1800×1600 | ||||
| XGZY200/1500-35U | 200 | 1500×1500 | 3922 | 49 | 7.5 | 26120 | 7140×2200×2000 | ||
| XGZY250/1500-35U | 250 | 4463 | 61 | 26930 | 7730×2200×2000 | ||||
| XGZY300/1500-35U | 300 | 5274 | 73 | 28160 | 8720×2000×1820 | ||||
| XGZY350/1500-35U | 350 | 6221 | 85 | 29600 | 10110×2000×1820 | ||||
| XGZY400/1500-35U | 400 | 7032 | 99 | 31500 | 11260×2000×1820 | ||||
| XGZY450/1500-35U | 450 | 7844 | 111 | 33400 | 12250×2000×1820 | ||||
| XGZY500/1500-35U | 500 | 8791 | 123 | 33380 | 13240×2000×1820 | ||||
| XGZY600/2000-40U | 600 | 2000×2000 | 40 | 12000 | 85 | 54164 | 13030×3520×2500 | ||
| XGZY700/2000-40U | 700 | 14000 | 99 | 58300 | 14390×3000×2500 | ||||
| XGZY800/2000-40U | 800 | 16000 | 107 | 624460 | 15770×3000×2500 | ||||
| XGZY900/2000-40U | 900 | 18000 | 127 | 66620 | 17150×3000×2500 | ||||
| XGZY1000/2000-40U | 1000 | 20000 | 141 | 70780 | 18530×3000×2500 |
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
