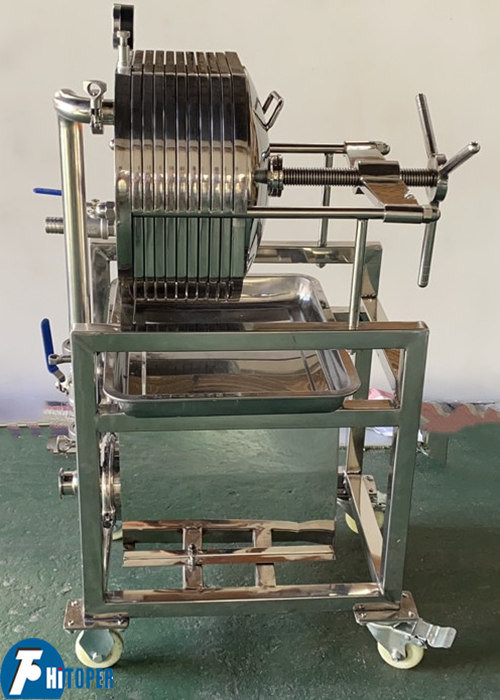

SUS304 Stainless Steel Plate and Frame Filter Press for Pharmaceutical Filtration

SUS304 Stainless Steel Plate and Frame Filter Press for Pharmaceutical Filtration

    • SUS304 Stainless Steel Plate and Frame Filter Press for Pharmaceutical Filtration
    • SUS304 Stainless Steel Plate and Frame Filter Press for Pharmaceutical Filtration
  • SUS304 Stainless Steel Plate and Frame Filter Press for Pharmaceutical Filtration

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DZCR300-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD1950/SET
    Packaging Details: Export standard wooden package.
    Delivery Time: 15 days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 200 sets per month.
    Contact Now
    Detailed Product Description
    Filtration Area: 0.7m2 Filter Plate Size: 300mm
    Filter Plate And Number Number: 10pcs Filtrating Pressure: 0.15Mpa
    Motor Power: 0.75kw Construction Material: SS304, SS316L.
    Flow Rate: 4t/h Voltage: Customized As You Need
    Dimension: 700*500*800mm

    Diameter 300mm Plate SS304 Stainless Steel Filter Press for Vegetable Oils Filtration


    Working Principle

    The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate passs through the filter media and then discharged from the outlet. The solid will becomes to filter cakes. Thus realize solid liquid separation.



    Features:

    * Made of SUS304, SUS316L high quality stainless steel. Corrosion-resisting

    * Thread-like filter plate, user could adopt different filter mediums according to different needs

    * User could change the number of layers according to filtration yield

    * Filtering under pressure sealing, no loss of material liquid, high liquid clarity

    * Multi-level filtering system is optional for customize

    * All sealing parts adopt silicone rubber seals, nice sealing performance with heat-resisting, non-toxic, non-leakage

    * Reflux system is optional for customize

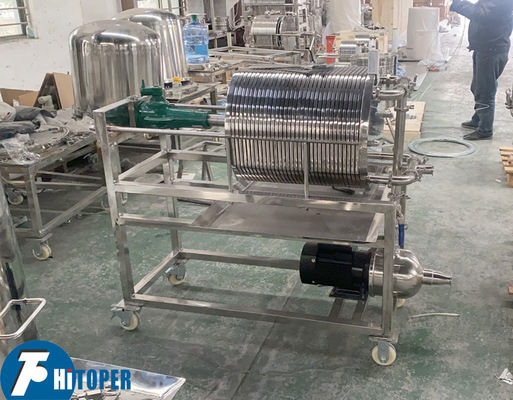

    SUS304 Stainless Steel Plate and Frame Filter Press for Pharmaceutical Filtration





    Notes:



    If needlarge flow capacity filter, it can be customized manufactured
    Pressure pump is to be explosion-proof motor and Grundfos pumps up the difference.



    Technical data:



    Model

    Layer

    Filter

    area

    ( m2)

    The size of filter material (mm)

    Filter precision (μm)

    Filtration pressure

    (MPa)

    Water flow

    (t/h)

    Motor power

    (KW)

    Overall dimension (mm)

    (L×W×H)

    DZCR-100 10 0.078 Ф100 0.8 0.15 0.8 0.55 600×300×600
    DZCR-150 10 0.17 Ф150 0.8 0.15 1.5 0.75 650×380×650
    DZCR-200 10 0.34 Ф200 0.8 0.15 2 1.1 650×400×700
    DZCR-300 10 0.7 Ф300 0.8 0.15 4 1.1 700×500×800
    DZCR-400 10 1.25 Ф400 0.8 0.15 6 1.1 900×600×1000
    DZCR-400 16 2 Ф400 0.8 0.15 9 1.5 1000×600×1000
    DZCR-400 20 2.5 Ф400 0.8 0.2 10 1.5 1100×600×1000
    DZCR-400 32 4 Ф400 0.8 0.3 13 2.2 1320×600×1000
    DZF-200 10 0.4 200X200 0.8 0.15 3 1.1 650×380×650
    DZF-300 10 0.9 300X300 0.8 0.15 6 1.1 700×500×800
    DZF-400 10 2 400x400 0.8 0.15 10 1.5 900×600×1000
    DZF-400 20 3 400x400 0.8 0.15 12 1.2 1100×600×1000
    DZF-400 26 4 400x400 0.8 0.2 15 2.2 1150×600×1000
    DZF-400 32 5 400x400 0.8 0.2 18 2.2 1200×600×1000
    DZF-400 38 6 400x400 0.8 0.3 21 2.2 1300×600×1000
    DZF-400 44 7 400x400 0.8 0.3 23 3 1350×600×1000





    About Toper



    Zhengzhou Toper is the leading suppiler of industrial equipment in China,and also the professional exporter and service provider of filter and separation equipment.

    We focus on full service for filtering project from design to after-sales service and fast supply of spare parts.





    Capability:



    The leading supplier of industrial equipment in China.

    The professional exporter and service provider of filter and separation equipment.

    Our company supplies various types of filter press,centrifuge and relevant parts.





    All products of Toper:

    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press

    15. SS type three-foot upper discharge centrifuge

    16. SD type three-foot and filter bag hoist discharge centrifuge

    17. PD type filter bag hoist discharge centrifuge

    18. Centrifuge of up discharge, three foot, clean series SSB, SB

    19. SX type manual top discharge centrifuge

    20. PS type manual top discharge centrifuge

    21. SGZ type automatic scraper bottom discharge centrifuge

    22. PGZ type scarper bottom discharge centrifuge

    23. LW series decanter centrifuge

    24. Tubular centrifuge

    25. Multi-layer stainless steel frame filter

    26. Bag filter

    27. Diatomite filter

    28. Filter plate

    29. Filter cloth

    30. Vacuum disc filter
