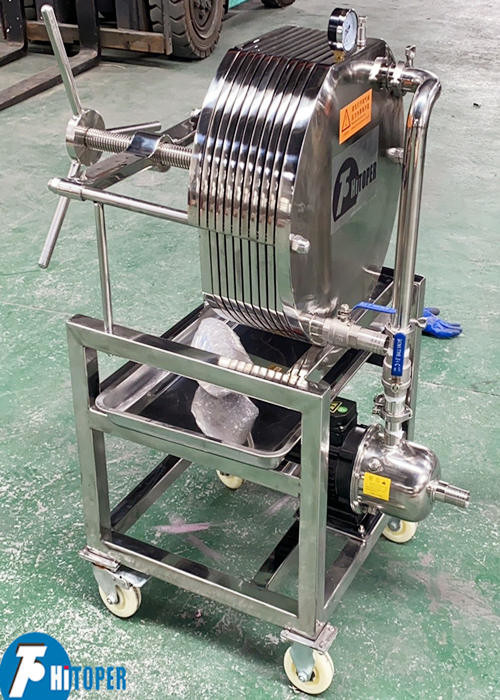

304/316 Stainless Steel Plate and Frame Filter Press for Pressurized Sealed Filtration

304/316 Stainless Steel Plate and Frame Filter Press for Pressurized Sealed Filtration

    • 304/316 Stainless Steel Plate and Frame Filter Press for Pressurized Sealed Filtration
    • 304/316 Stainless Steel Plate and Frame Filter Press for Pressurized Sealed Filtration
  • 304/316 Stainless Steel Plate and Frame Filter Press for Pressurized Sealed Filtration

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DZCR400-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD2980/SET
    Packaging Details: Export standard wooden package.
    Delivery Time: 15 days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 200 sets per month.
    Contact Now
    Detailed Product Description
    Filtration Area: 1.25m2 Filter Plate Size: 400mm
    Filter Plate And Number Number: 10pcs Filtrating Pressure: 0.3Mpa
    Motor Power: 0.75kw Construction Material: SS304, SS316L.
    Flow Rate: 6t/h Voltage: Customized As You Need
    Dimension: 900*600*1000mm

    400mm 10 Layers Plate Stainless Steel Plate and Frame Edible Oil Filter Machine

    Brief Introduction:
    S.S. Multilayer Filter is for fine filtering. It's surface is polished, has seals, and normally used together with S.S. feeding pump, so it's normally uesd for following industries: laboratory, fine chemicals, medicine, food, chemical etc...
    Working principle:

    The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate passs through the filter media and then discharged from the outlet. The solid will becomes to filter cakes. Thus realize solid liquid separation.

    The plate and frame filter press is a stainless steel multi-layer plate and frame filter press. It is suitable for liquids with a low viscosity of 50% or less and a small amount of slag as a seal to achieve purification, sterilization, clarification and other fine filtration, semi-fine filtration. The requirement is to directly select the microporous membrane (for the purpose of sterile filtration without passing through the microporous membrane filter)
    In addition to the motor, the machine is made of 304 or 316 high-quality corrosion-resistant stainless steel material. It is suitable for filtering various pH acid and alkali solutions. The machine is applied with pressurized sealed filter, which has good filtering quality and high efficiency. The filtering part is composed of ten layers of filter plates, which has large filtering area and large circulation; and can be replaced according to different production processes (primary filtration, semi-fine filtration, fine filtration) of the filtered solution, different filter membranes, and flow according to user production. The size can appropriately reduce or increase the number of filter plates to make it suitable for production.

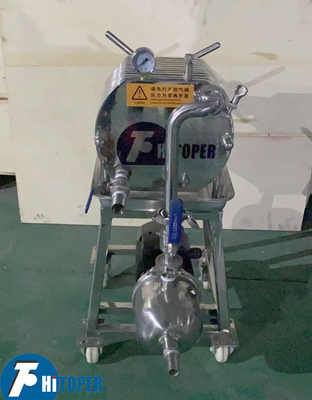

    304/316 Stainless Steel Plate and Frame Filter Press for Pressurized Sealed Filtration
    Uses and advantages:

    • 1. This machine can be widely used in pharmaceutical, food, beverage, water treatment, brewing, petroleum, chemical, anti-corrosion, environmental protection and other industries. It is the latest equipment for filtration, clarification, purification and sterilization of various liquids;
    • 2. Using the bump type filter plate, the water cross-sectional area is effectively increased, the liquid filtration and the flow resistance are reduced, the liquid can flow freely without blocking the dead angle, and the liquid performance can be kept stable, and the bump type filter plate makes the filter material ( Filter membrane, filter paper, etc.) are not easy to damage you, extending the service life of various filter materials;
    • 3. All the sealing parts are equipped with milky silicone rubber sealing ring, which is non-toxic, high temperature resistant and non-leakage. That is, a circular sealing ring is installed on the sealing parts of the front and back of the filter frame and the double-folded snap ring of the inlet and outlet;
    • 4. The input pipe part is tightly sealed by a double-folded snap ring connection, which is convenient for disassembly and cleaning;
    • 5. This machine can be used according to the different production processes (primary filter, semi-fine filter, fine filter) of the filtered liquid. Users can replace different filter media according to the production flow rate, correspondingly reduce or increase the filter frame filter material, so that it can be widely adapted to production. need;
    • 6. When the filter is working, the sealing ring is pressed, the liquid is not depleted, the liquid has good clarity, and the microporous membrane is used for sterilization, and the sterilization effect is particularly good.

    If needlarge flow capacity filter, it can be customized manufactured
    Pressure pump is to be explosion-proof motor and Grundfos pumps up the difference.
    Technical data:



    ( m2)

    The size of filter material (mm)

    Filter precision (μm)

    Filtration pressure

    Water flow

    Motor power

    Overall dimension (mm)

    DZCR-100 10 0.078 Ф100 0.8 0.15 0.8 0.55 600×300×600
    DZCR-150 10 0.17 Ф150 0.8 0.15 1.5 0.75 650×380×650
    DZCR-200 10 0.34 Ф200 0.8 0.15 2 1.1 650×400×700
    DZCR-300 10 0.7 Ф300 0.8 0.15 4 1.1 700×500×800
    DZCR-400 10 1.25 Ф400 0.8 0.15 6 1.1 900×600×1000
    DZCR-400 16 2 Ф400 0.8 0.15 9 1.5 1000×600×1000
    DZCR-400 20 2.5 Ф400 0.8 0.2 10 1.5 1100×600×1000
    DZCR-400 32 4 Ф400 0.8 0.3 13 2.2 1320×600×1000
    DZF-200 10 0.4 200X200 0.8 0.15 3 1.1 650×380×650
    DZF-300 10 0.9 300X300 0.8 0.15 6 1.1 700×500×800
    DZF-400 10 2 400x400 0.8 0.15 10 1.5 900×600×1000
    DZF-400 20 3 400x400 0.8 0.15 12 1.2 1100×600×1000
    DZF-400 26 4 400x400 0.8 0.2 15 2.2 1150×600×1000
    DZF-400 32 5 400x400 0.8 0.2 18 2.2 1200×600×1000
    DZF-400 38 6 400x400 0.8 0.3 21 2.2 1300×600×1000
    DZF-400 44 7 400x400 0.8 0.3 23 3 1350×600×1000
