| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | BY20/630-25 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 30-40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 20 sets per month |
| Filtration Area: | 20m2 | Filter Plate Size: | 630*630mm |
|---|---|---|---|
| Filter Chamber Volume: | 298L | Plate Number: | 24pcs |
| Frame Number: | 25 | Motor Power: | 2.2kw |
| Main Feature: | To Bear High Temperature To Be 300C. | Construction: | Cast Iron. |
| Voltage: | 220V/380V/400V/Customized | Usage: | Oil Cleaner |
| Filtrareting Pressu: | 0.6Mpa | Weight: | 3700kg |
| Dimensions: | 2960*1150*1100mm | Structure: | Plate-frame Type |
| Filter Medium: | Filter Cloth, Filter Cardboard ,filter Paper | Compress Type: | Hydraulic Compress |
| Filter Cake Discharge Type: | Manual Discharge |

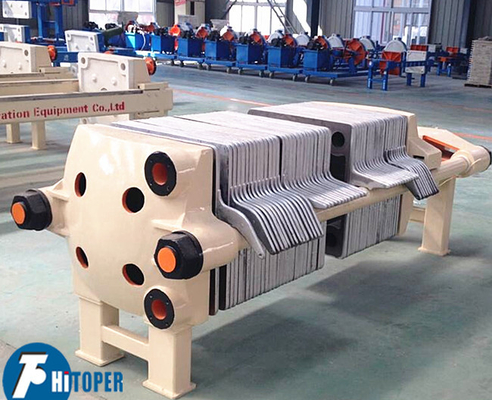

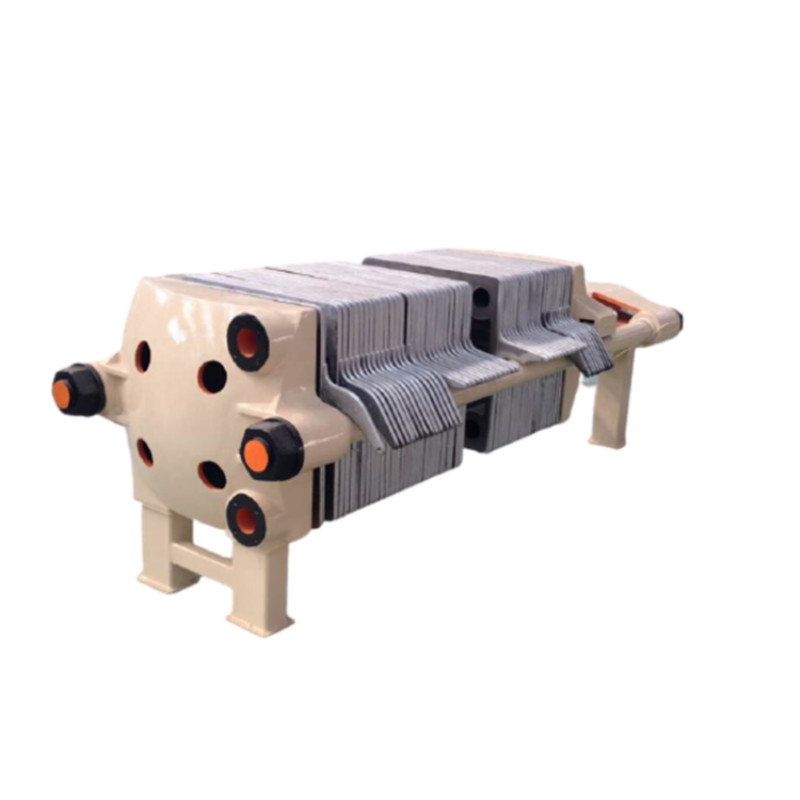

High Temperature Cast Iron Plate And Frame Filter Press Low Cake Moisture With 630x630 Cast Iron Plate
This flter press machine is widely used in new condition olive oil,palm oil,cosmetic oil, and various types waste oil, is made of high quality steel and cast iron, which can bear high pressure, high temperature, filtration speed, low cake moisture, unloading fast and so on. Best suitable for Sunflower oil,olive oil, cottonseed oil palm oil,cosmetic oil industry.
Our Zhengzhou Toper company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. With high quality and best sale-service, having received a good reputation.
Cast iron plate and frame filter press is made by high quality cast iron or ductile iron precision casting, with characteristics of high strength to withstand large filtration pressure, high temperature, filtration speed, low cake moisture, unloading,
and long service life.
Technical data of this cast iron filter press,
|
Type |
Filter area (m2) |
Filter plate size (mm) | Cake thickness (mm) | Chamber volume (L) | Plate number (pcs) | Frame number (pcs) | Filtrating pressure (Mpa) | Weight (kg) |
Dimensions(mm) L×W×H |
| BQ1/320-25 | 1 | 320 x 320 | 25 | 13 | 4 | 5 | 1.0 | 380 | 1150×760×650 |
| BQ2/320-25 | 2 | 25 | 9 | 10 | 500 | 1390×760×650 | |||
| BQ3/320-25 | 3 | 38 | 14 | 15 | 620 | 1750×760×650 | |||
| BQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 10 | 0.8 | 1060 | 1780×760×650 |
| BQ6/450-25 | 6 | 76 | 14 | 15 | 1160 | 2055×870×880 | |||
| BQ8/450-25 | 8 | 102 | 19 | 20 | 1360 | 235×870×880 | |||
| BQ12/450-25 | 12 | 152 | 29 | 30 | 1530 | 2785×870×880 | |||
| BQ16/450-25 | 16 | 203 | 39 | 40 | 1760 | 3305×870×880 | |||
| XQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 1.0 | 960 | 1900×870×880 | |
| XQ6/450-25 | 6 | 76 | 14 | 1140 | 2030×870×880 | ||||
| XQ8/450-25 | 8 | 102 | 19 | 1460 | 2280×870×880 | ||||
| XQ12/450-25 | 12 | 152 | 29 | 1960 | 2780×870×880 | ||||
| XQ16/450-25 | 16 | 203 | 39 | 2460 | 3280×870×880 | ||||
| BQ20/630-25 | 20 | 630 x630 | 25 | 298 | 24 | 25 | 0.6 | 3300 | 2750×1150×1100 |
| BQ30/630-25 | 30 | 452 | 37 | 38 | 4500 | 3220×1150×1100 | |||
| BQ40/630-25 | 40 | 295 | 49 | 50 | 5600 | 3870×1150×1100 | |||
| BY20/630-25 | 20 | 298 | 24 | 25 | 3700 | 2960×1150×1100 | |||
| BY30/630-25 | 30 | 452 | 37 | 38 | 5000 | 3610×1150×1100 | |||
| BY40/630-25 | 40 | 595 | 49 | 50 | 6100 | 4210×1150×1100 | |||
| XQ20/630-25 | 20 | 25 | 248 | 24 | 0.8 | 3400 | 2600×1100×1100 | ||
| XQ30/630-25 | 30 | 377 | 37 | 4700 | 3250×1100×1100 | ||||
| XQ40/630-25 | 40 | 496 | 49 | 5900 | 3900×1100×1100 | ||||
| XY20/630-25 | 20 | 248 | 24 | 3800 | 2950×1100×1100 | ||||
| XY30/630-25 | 30 | 377 | 37 | 5200 | 3580×1100×1100 | ||||
| XY40/630-25 | 40 | 496 | 49 | 6400 | 4180×1100×1100 |
Features of this cast iron filter press,
1. Widely be used for dewatering high temperature materials.
2. Plate and frame of filter press, the heart of filter press
3. Material of plate and frame: cast iron
4. Max temperature: up to 300 degree celsius
5. Resistance to high temperature and high pressure.
6. Long use life.
