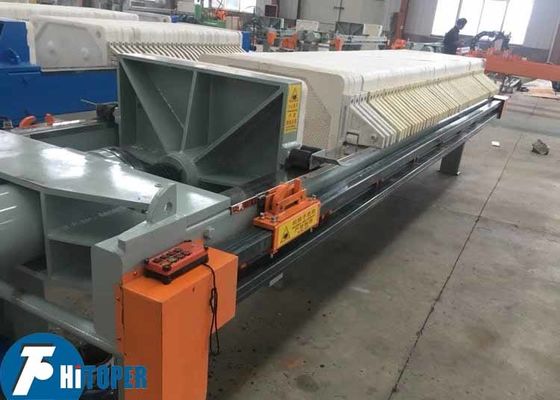

Large Engineering Projects Chamber Filter Press 0.6mpa Filtrating Pressure

Large Engineering Projects Chamber Filter Press 0.6mpa Filtrating Pressure

    • Large Engineering Projects Chamber Filter Press 0.6mpa Filtrating Pressure
    • Large Engineering Projects Chamber Filter Press 0.6mpa Filtrating Pressure
  • Large Engineering Projects Chamber Filter Press 0.6mpa Filtrating Pressure

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XZ200/1250-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 20-30 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 30 sets per month for this chamber filter press
    Contact Now
    Detailed Product Description
    Filter Area: 200 Square Meter PP Plate Size: 1250mm Of Square Type
    Filter Chamber Volume: 2965L Filter Number: 72pcs
    Filtrating Pressure: 0.6Mpa Motor Power: 380V, 50Hz, 3Phase, 4.0kw
    Weight: 13504kgs Dimension: 7360*1800*1600mm
    Filter Plate Type: Chamber Type Filter Plate Material: Polypropylene
    Filter Plate Color: White Filter Plate Shape: Square Shape
    Function: Solid-liquid Separation Application: Food,beverage,chemcial,mineral,pharmacy,biological Etc.
    Filter Medium: Filter Cloth Conditon: New
    High Light:

    dewatering filter press


    wastewater filter press

    Large Engineering Projects Chamber Filter Press 0.6mpa Filtrating Pressure



    1. Brief introduction:


    This chamber ilter press adopts PLC control, can carry on each operation to the filter press (such as the filter plate is pressed tightly, collect liquid plate merge and open, release the filter plate, pull open the filter plate), and leave the remote control interface , Can remote automatic operation control. And Yuan Sheng control interface, to Yuan Sheng automatic operation and control, and the other can be provided according to the need to Quzhen vibration, then the liquid flap, mud guide mud, filter cloth washing system.



    2. Product structure:


    1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin,then painted by epoxy primer to get higher intensity and corrosion resistance.

    2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.

    3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.

    4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection.

    5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.



    3. Application industry:


    Widely used in chemical industry, petroleum, pharmaceutical, sugar, metallurgy, food, ceramics, starch and other industrial sectors of the production process and a variety of industrial wastewater and domestic sewage purification.



    Our filter press technical parameters.



    Filter area


    Filter plate size (mm)


    Filter cake thickness


    Filter chamber volume



    Filter plate number



    Filtrating pressure



    Motor power




    Dimension (mm)


    XZ100/1250-30U 100 1250×1250 30 1479 36 0.6 4.0 8307 5020×1800×1600
    XZ120/1250-30U 120 1777 43 9308 5470×1800×1600
    XZ140/1250-30U 140 2094 51 10455 5990×1800×1600
    XZ160/1250-30U 160 2381 58 11492 6450×1800×1600
    XZ180/1250-30U 180 2669 65 12494 6905×1800×1600
    XZ200/1250-30U 200 2965 72 13504 7360×1800×1600
    XZ220/1250-30U 220 3285 80 14652 7880×1800×1600
    XZ250/1250-30U 250 3737 91 16227 8600×1800×1600
    XZ200/1500-30U 200 1500×1500 3025 49 0.6 7.5 20030 6400×2200×1900
    XZ250/1500-30U 250 3739 61 22978 7225×2200×1900
    XZ300/1500-30U 300 4413 74 26026 8130×2200×1900
    XZ350/1500-30U 350 5210 86 29220 8570×2200×1900
    XZ400/1500-30U 400 6007 99 32574 9880×2200×1900
    XZ450/1500-30U 450 6743 111 35586 10820×2200×1900
    XZ500/1500-30U 500 7478 123 38606 11560×2200×1900
    XZ600/2000-30U 600 2000×2000 40 12000 85 0.6 7.5 49000 11100×3000×2500
    XZ700/2000-30U 700 14000 99 53000 12200×3000×2500
    XZ800/2000-30U 800 16000 107 57000 13350×3000×2500
    XZ900/2000-30U 900 18000 127 61000 14500×3000×2500
    XZ1000/2000-30U 1000 20000 141 65000 15600×3000×2500



    Our service:


    1.We have professional person on line to provide you comprehensive.easy-understanding and detail information and technical data about the machine you interested;solve your confusions or questions about the machine

    2.Advise you the most suitable type of machine according to your requirement for your reference

    3.Arrange the schedule if you pay a visit to our factory.

    4.Send our technical engineer to your country for installation ,operation test ,slove questions and so on if required.


    Large Engineering Projects Chamber Filter Press 0.6mpa Filtrating Pressure
