| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | LW300x1200 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Shrink-wrapped and export standard plywood case package |
| Delivery Time: | 30-40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this decanter centrifuge |
| Drum Dia.: | 300mm | Drum Length: | 1200mm |
|---|---|---|---|
| Speed: | 4200r/min | Main Motor: | 11kw |
| Secondary Motor: | 4kw | Drum Material: | Stainless Steel |
| Dimension: | 2680x830x1280mm | Weight: | 1500kgs |
| Application: | Food,chemical,pharmacy,biological,wastewater | Processing Capacity: | 1~5m3/h |
| High Light: | sludge decanter centrifuge,decanter centrifuge for sludge dewatering |
||

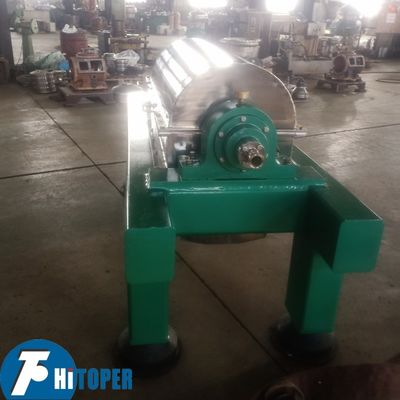

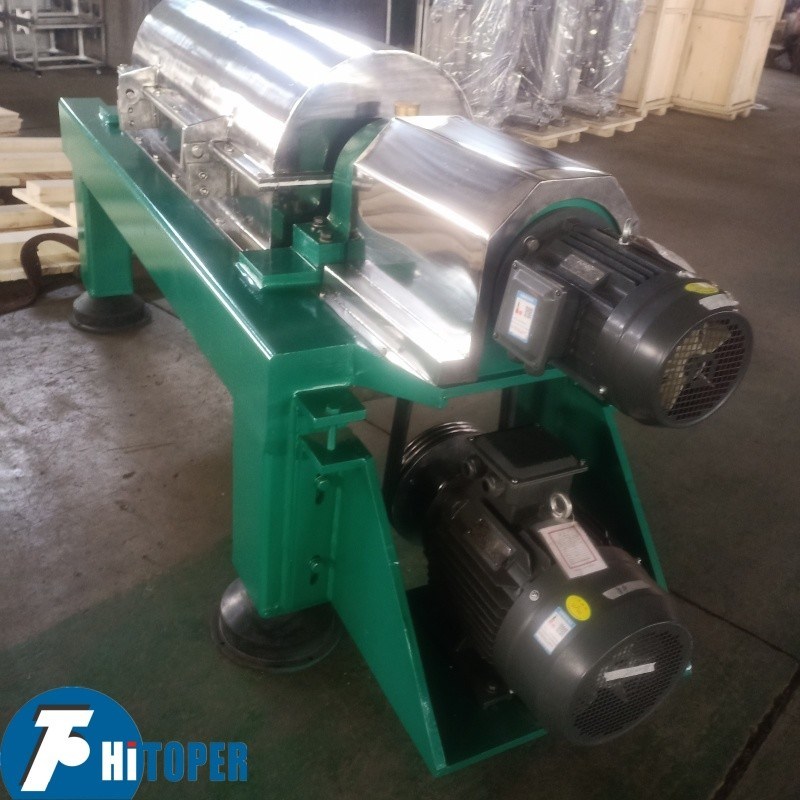

SUS304 Stainless Steel Industrial Decanter Centrifuge for Fertilizer Dehydration & Purification
Lw series decanter centrifuge is the mechanical equipment used for continuously separation the materials in the suspension with density difference, by the principle of centrifugal settling.It enjoys such features as compact structure, continuous operation, smooth running, strong adaptability to the separation material, large handling capacity, convenient maintenance, etc.
The centrifuge is applicable to the separating of the suspension containing solid-phase granules with the diameter greater than 0.005mm and with the concentration being 2-40%.It is wide applications in such trades as chemical, light industry, pharmacy, food, environmental protection, etc.
The basic principle is the drum and the spiral feeder rotate in the same direction but with a certain speed difference; The material is led into the feeding spiral inner cylinder via the feeding pipe and after speeding up, enters the drum; Under the action of the centrifuge force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; The solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and after dehydration in the drying area, is discharged under full-speed running.
Advantages of the Fertilizer Dehydration &Purification Industrial Decanter centrifuge
1. Screw propeller made and Bowl made of SS304 material, bearing adopt SKF.Electric element adopt SIMENS or Schneider.
2. Painting: Heavy anti-corrosion paint adopt national, Fine polish.
3. Electronic Motor is from SIMENS or ABB motor.Electronic control system is from Top brand explosion - proof electronic switch.
Basic technical parameters:
| Model | Structure type | Rotating drum | Rotating speed (r/min) | Separation factor | Processing capacity of admixtures (m3/h) | Motor power (KW) |
Total weight (kg) |
|
| Dia. (mm) | Length-to-diameter ratio | |||||||
| LW220 | Counter flow type | 930 | 4.22 | 4800 | 2835 | 0-1 | 7.5 | 1500 |
| LW300 | Counter flow type | 1200-1350 | 4-4.5 | 4200 | 3000 | 1-3 | 11 | 1500-1800 |
| LW355 | Counter flow type | 1250-1600 | 2.42-4.51 | 3800 | 3200 | 2-8 | 15 | 1800-2000 |
| LW400 | Counter flow type | 1200-1800 | 3-4.5 | 3400 | 3000 | 5-10 | 30 | 2000-2800 |
| LW450 | Counter flow type | 1350-2000 | 3-4.5 | 3400 | 3000 | 10-20 | 30 | 2800-3500 |
| LW530 | Counter flow type | 2280 | 4 | 2700 | 2150 | 20-30 | 45 | 3500-4000 |
More details information about our corporation --Toper
1. About Toper
Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider
of filter and separation equipment.
Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more countries and areas
excluding China mainland.
Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey,
Uzbekistan and Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli,
Palestinian, Oman, Bahrain, Iran; Europe: Russia, Italy, Spain, Ukraine, Finland, Poland,
Romania; North America: Canada, America; South America: Mexico, Guatemala, Argentina,
Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.
Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the
world markets. "Establish TOPER brand for the satisfaction of users" is our persistent pursuit.
3. Products
Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, three-foot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge, tubular centrifuge, vacuum disc type filter, various filter equipment, filter plate and filter cloth and so on.
