Food Industry Stainless Steel Filter Press With Ss304 Food Grade Filter Plate

Food Industry Stainless Steel Filter Press With Ss304 Food Grade Filter Plate

    • Food Industry Stainless Steel Filter Press With Ss304 Food Grade Filter Plate
    • Food Industry Stainless Steel Filter Press With Ss304 Food Grade Filter Plate
  • Food Industry Stainless Steel Filter Press With Ss304 Food Grade Filter Plate

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: TBSJL400-2

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 30-40 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 20 sets per month for this stainless steel filter press
    Contact Now
    Detailed Product Description
    Filter Area: 2m2 Filter Plate Size: 400*400mm
    Filtrating Pressure: 0.3Mpa Motor Power: 2.2kw
    Material: SS304, SS316L. Dimension: 1250X660X1300mm
    High Light:

    filter press machine

    ,

    filter press equipment

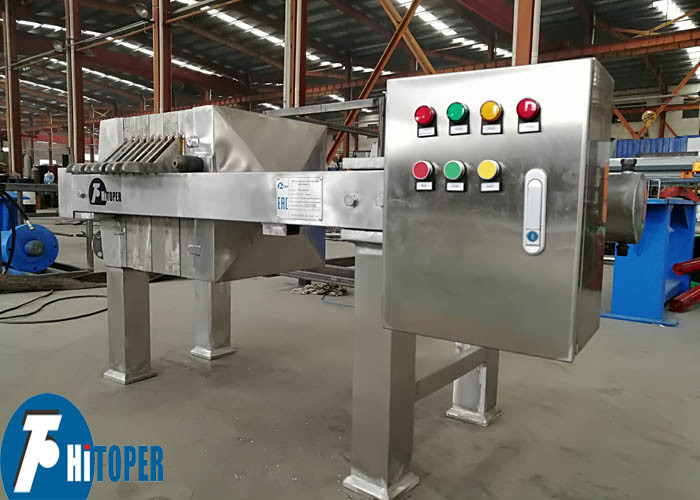

    Automatic hydraulic Stainless steel filter press with SS304 food grade filter plate in food industry





    It is suitable for various industries: liquid medicine, liquor, beverage, juice, syrup, vinegar, oils, fine chemicals, electroplating etc.



    Specificeation of this stainless steel filter press:



    1. Material: structure-SS304, plate-SS304, SS316L or PP.

    2. Seal material: white silicone rubber, pressure, <0.4Mpa, temperature<120 celsius.

    3. Main dimension: plate thickness, 13mm, individual chamber volume, 4.8L.

    4. Pressing method: Screw/manual hydraulic, others like manual jack, automatic hudraulic system, etc.

    5. Filter media: various filter cloth, filter paper, filter mamebrane, etc.

    6. Filter precision: from 200mesh to 0.22um.

    Food Industry Stainless Steel Filter Press With Ss304 Food Grade Filter Plate

    Zhengzhou Toper isspecialized in design,manufacture and sales of various filtration equipment,as well as comprehensive filtration solutions and projects. Zhengzhou Toper is the leading supplier of industrial eqipment in China,and also the professional export and service provider of fitler and separation equipment.Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, plate centrifuge,disc centrifuge,decanter centrifuge and tubular centrifuge etc.
    Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.. And I hope to establish a long-term relationship with you.
    Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
    We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.



    Technical data of this stainless steel filter press,



    Model

    Filter area

    (m2)

    No. of plate

    (pcs)

    Reference flow (T/h)

    Plate size

    (mm)

    Dimension

    (mm)

    TBSJL400-2 2 15 1-2 400X400 1250X660X1300
    TBSJL400-3 3 21 1-3 400X400 1350X660X1300
    TBSJL400-4 4 31 3-4 400X400 1550X660X1300
    TBSJL400-6 6 45 4-6 400X400 1750X660X1300
    TBSJL400-8.5 8.5 61 6-8 400X400 2100X660X1300
    TBSJL400-9.5 9.5 71 8-10 400X400 2300X660X1300
    TBSJL600-14 14 41 10-13 600X600 1750X870X1350
    TBSJL600-21 21 61 15-20 600X600 2100X870X1350
    TBSJL600-24 24 71 20-25 600X600 2250X870X1350
    TBSJL600-35 35 101 25-30 600X600 2800X870X1350





    How to order filter press:


    1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
    2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
    3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
    4. Our company can supply non-standard model to meet your special demands.



    All of our products:

    1. Program-controlled automatic filter press
    2. Membrane filter press
    3. Hydraulic compress filter press
    4. Mechanical compress filter press
    5. Jack filter press
    6. Cast iron plate and frame/chamber filter press
    7. Stainless steel plate and frame filter press
    8. Round plate filter press
    9. Cotton cake filter press
    10. Cardboard filter press
    11. DY belt filter press
    12. DYX high pressure belt filter press
    13. DNY rotary drum thickning/dehydrating belt filter press
    14. Triple-belt thickning and dehydrating filter press
    15. SS type three-foot upper discharge centrifuge
    16. SD type three-foot and filter bag hoist discharge centrifuge
    17. PD type filter bag hoist discharge centrifuge
    18. Centrifuge of up discharge, three foot, clean series SSB, SB
    19. SX type manual top discharge centrifuge
    20. PS type manual top discharge centrifuge
    21. SGZ type automatic scraper bottom discharge centrifuge
    22. PGZ type scarper bottom discharge centrifuge
    23. LW series decanter centrifuge
    24. Tubular centrifuge
    25. Multi-layer stainless steel frame filter
    26. Bag filter
    27. Diatomite filter
    28. Filter plate
    29. Filter cloth
    30. Vacuum disc filter
