| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | DL1P1S |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 100 sets per month for this bag filter housing |
| Filter Area: | 0.25m2 | Max. Flow Rate: | 20m3/h |
|---|---|---|---|
| Volume: | 8L | Inlet And Outlet: | DN50 |
| Shell Material: | Stainless Steel | Sealing Structure: | Upper Closed Platen Seal |
| Sealing Type: | Level 2 O-seal | Liquid Discharge Method: | Flange Bottom Discharge |
| Solid Discharge Method: | Manual Upper Discharge | Feeding Method: | Pump Feeding Or Manual |
| Filter Medium: | Filter Bag | ||
| High Light: | stainless steel bag filter housing,stainless steel bag filter |
||

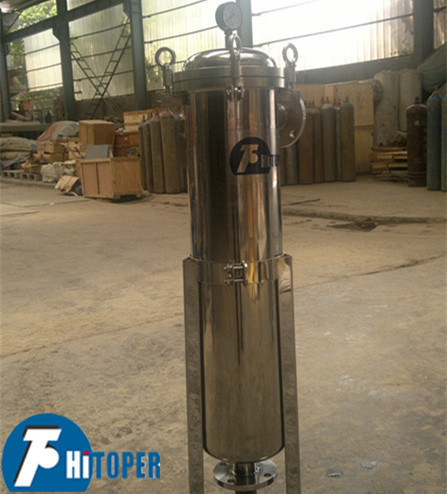

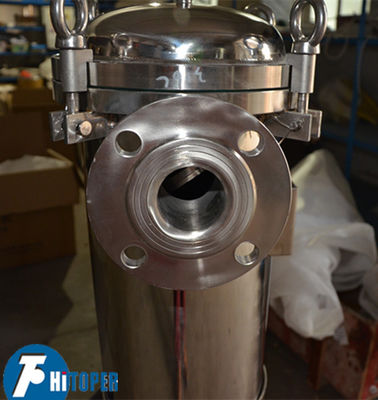

0.5Mpa Working Pressure Wastewater Treatment Bag Filter Housing with 0.25m2 Filter Area
Bag filter housing is a new filtration system, filter bag is supported by the metal basket inside filter, and the liquid flows into the inlet, filtered through the bag out from the outlet , impurities are kept in the bag, replacing the filter bag and then continue to use.
Features of the 0.5Mpa Working Pressure Wastewater Treatment Bag Filter Housing with 0.25m2 Filter Area
1. The Bag filter housing is of large processing capacity, small size, large capacity dirt.
2. Bag filter system based on the working principle and structure; replacing the filter bag is convenient,
and filter is no necessary to clean, saving time and labor.
3. Bag side leakage probability is small, powerfully guarantee filter quality.
4. Filter bag can bear a greater work pressure, small pressure loss, low operation cost, energy saving effect.
5. Filter precision is getting improved , now is reached 0.5μm;Bag filter is widely used , flexible, diverse installation styles.
Bag filter housing technical parameters:
|
Model |
Filter area (m2) |
Max. flow rate (m³/h) |
Working pressure (MPa) |
Volume (L) |
Inlet and outlet connection style |
| DL1P1S | 0.25 | 20 | 0.5 | 8.0 | Ф50 |
| DL1P2S | 0.5 | 40 | 0.5 | 17.0 | Ф50 |
| DL1P4S | 0.20 | 18 | 0.5 | 3.8 | Ф20 |
Besides single bag filter housing, also we have multi bag filter housing to satisfy big capacity.
1. Multi bag filter housing is for high flow filter. From 2 to 24 bags,
2. Complete specifications, inlet and outlet flange diameter of 3 to 18’’,
3. The largest single flow is 90-1000m³/h.
4. To provide fast open design, filter bag replacement is very convenient and also applies to occasion of who wants to use long time and then replace the bag .
Packing and delivery :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
More information about Toper
Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment.
The products of Toper include the Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, threefoot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge,tubular centrifuge, vacuum disc type filter, various filter equipment, filter plate and filter cloth and so on.
Our filter and separation equipments are widely used in mining, metallurgy, petroleum, chemical, environmental protection, electroplating, food, pharmacy, oil, biological, beverage, brewing, textiles, printing and dyeing, papermaking,inorganic salt, coal washing, sewage treatment, ceramics, leather such industries.
