|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||15-20 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||100 sets per month for this bag filter housing|
|Max. Flow Rate:||40m3/h||Working Pressure:||0.5Mpa|
|Inlet And Outlet:||DN50||Structure:||Vertical Structure|
|Sealing Type:||Level 2 O-seal||Solid Discharge Method:||Upper Manual Discharge|
|Feeding Method:||Side Feeding||Application Area:||Chemical,food,water Treatment|
|Filter Medium:||Filter Bag|
stainless steel bag filter housing,
stainless steel bag filter

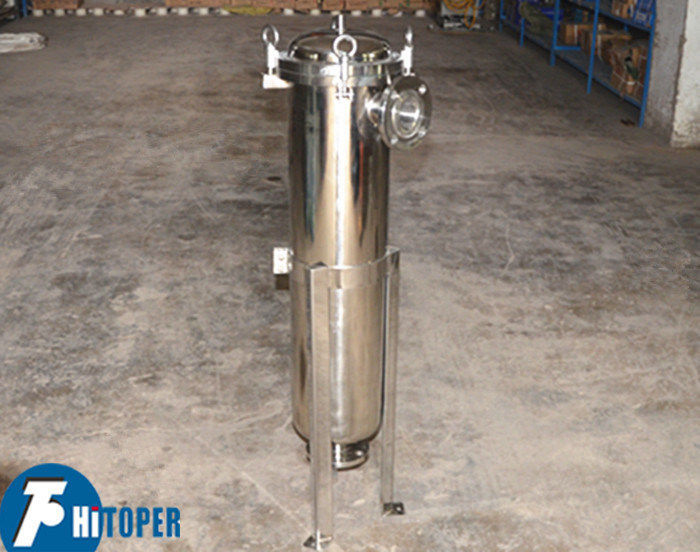

Small Pressure Loss Vertical Structure Bottom Discharging Stainless Steel Filter Housing
Bag filter housing is a new filtration system, filter bag is supported by the metal basket inside filter, and the liquid flows into the inlet, filtered through the bag out from the outlet , impurities are kept in the bag, replacing the filter bag and then continue to use.
The bag filter have features like the filter bag can bear a greater work pressure, small pressure loss, low operation cost, energy saving effect.
replacing the filter bag is convenient,and filter is no necessary to clean,saving time and labor;filter precision can reached 0.5um.

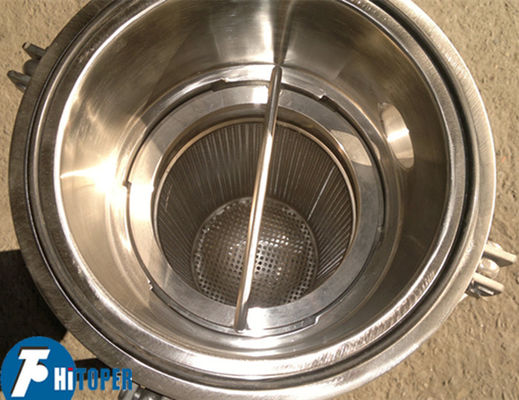

Main components parts of the bag filter:Lifting lug flange structure ;The high quality stainless steel basket inside the filter ,function of suppoeted the filter bag ;The filter bag inside the metal basket of the filter ,kept the impurities flow into the filter ,and clear liquor flow out through out from the outlet.The inner and out mirror of the filter can be polishing treatment or sanding treatment based on the demand.
Bag filter housing technical parameters:
Filter area (m2)
Max. flow rate (m³/h)
Working pressure (MPa)
Inlet and outlet connection style
Besides single bag filter housing, also we have multi bag filter housing to satisfy big capacity.
Multi bag filter housing is for high flow filter. From 2 to 24 bags, complete specifications, inlet and outlet flange diameter of 3 to 18’’, the largest single flow is 90-1000m³/h. To provide fast open design, filter bag replacement is very convenient and also applies to occasion of who wants to use long time and then replace the bag .
Packing and delivery :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
Toper's service :
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
