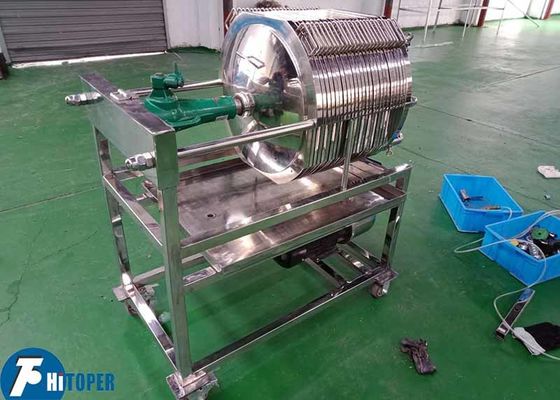

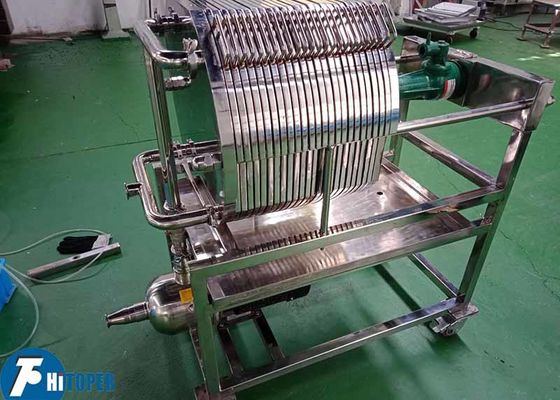

Stainless Steel Liquor Plate And Frame Filter Press 0.3Mpa Filtrating Pressure

Stainless Steel Liquor Plate And Frame Filter Press 0.3Mpa Filtrating Pressure

    • Stainless Steel Liquor Plate And Frame Filter Press 0.3Mpa Filtrating Pressure
    • Stainless Steel Liquor Plate And Frame Filter Press 0.3Mpa Filtrating Pressure
  • Stainless Steel Liquor Plate And Frame Filter Press 0.3Mpa Filtrating Pressure

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DZCR400-20

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 30-40 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 20 sets per month.
    Contact Now
    Detailed Product Description
    Filtration Area: 2.5m2 Filter Plate Size: 400mm
    Filter Plate And Number Number: 20pcs Filtrating Pressure: 0.3Mpa
    Motor Power: 1.1kw Construction Material: SS304, SS316L.
    Flow Rate: 10t/h Voltage: Customized As You Need
    High Light:

    stainless steel filter press

    ,

    dewatering filter press

    Stainless steel liquor filter of plate and frame filter press in wine making process





    Brief Introduction:



    Plate and frame filter press is for fine filtering. It's surface is polished, has seals, and normally used together with S.S. feeding pump, so it is normally used for following industries: wines, oils, laboratory, fine chemicals, medicine, food, cosmetics, etc.

    2.Operation Principle:

    Suspension into the filter unit with the help of a pump filter, due to pressure, the filtrate through the filter layer and the membrane or other filter, is discharged out of fluid discharge outlet, the residues were kept in the room formed by plate and frame, to achieve solid-liquid separation.



    Features:



    The plate and frame filter press is made of SUS304 or SUS316L stainless steel material, corrosion-resistant durability and long life span.The filter plates use screw thread structure. It can change filtering media(if use millipore filter membrane, it can achieve aseptic filtration ). Users can increase or reduce the number of layers to meet the needs of production. When working, the filter is in the state of sealing and pressure, without loss of liquid material, liquid clarity is good, and also based on user needs a special multi-stage filter, first stage put a coarse filter, and second stage put fine filter material, saving time and improve the filtering accuracy. All parts of the machine sealed with silicone rubber seals, high temperature, non-toxic, no leakage, good sealing performance. The machine can be fitted with automatically liquid return device, as per needs of the user. When the pump stops, open the return value, automatic discharge of all sediments (both exhaust function), and return with water from the tube recoil, very convenient.



    Advantages:



    This plate and frame filter press use high quality 304 or 316L stainless steel material. The structure is close, and uses the two sided trawl doors, may make return washing processing, makes the membrane without the residue to separate the thick thin filtration, according to needs of the flow capacity, to increase or reduce layers such characteristics.



    Note:



    If needlarge flow capacity filter, it can be customized manufactured
    Pressure pump is to be explosion-proof motor and Grundfos pumps up the difference.



    Technical data:



    Model

    Layer

    Filter

    area

    ( m2)

    The size of filter material (mm)

    Filter precision (μm)

    Filtration pressure

    (MPa)

    Water flow

    (t/h)

    Motor power

    (KW)

    Overall dimension (mm)

    (L×W×H)

    DZCR-100 10 0.078 Ф100 0.8 0.15 0.8 0.55 600×300×600
    DZCR-150 10 0.17 Ф150 0.8 0.15 1.5 0.75 650×380×650
    DZCR-200 10 0.34 Ф200 0.8 0.15 2 1.1 650×400×700
    DZCR-300 10 0.7 Ф300 0.8 0.15 4 1.1 700×500×800
    DZCR-400 10 1.25 Ф400 0.8 0.15 6 1.1 900×600×1000
    DZCR-400 16 2 Ф400 0.8 0.15 9 1.5 1000×600×1000
    DZCR-400 20 2.5 Ф400 0.8 0.2 10 1.5 1100×600×1000
    DZCR-400 32 4 Ф400 0.8 0.3 13 2.2 1320×600×1000
    DZF-200 10 0.4 200X200 0.8 0.15 3 1.1 650×380×650
    DZF-300 10 0.9 300X300 0.8 0.15 6 1.1 700×500×800
    DZF-400 10 2 400x400 0.8 0.15 10 1.5 900×600×1000
    DZF-400 20 3 400x400 0.8 0.15 12 1.2 1100×600×1000
    DZF-400 26 4 400x400 0.8 0.2 15 2.2 1150×600×1000
    DZF-400 32 5 400x400 0.8 0.2 18 2.2 1200×600×1000
    DZF-400 38 6 400x400 0.8 0.3 21 2.2 1300×600×1000
    DZF-400 44 7 400x400 0.8 0.3 23 3 1350×600×1000
