Small Manual Plate Frame Filter Press 46L Filter Chamber Volume For Pigment Wastewater

Small Manual Plate Frame Filter Press 46L Filter Chamber Volume For Pigment Wastewater

    • Small Manual Plate Frame Filter Press 46L Filter Chamber Volume For Pigment Wastewater
    • Small Manual Plate Frame Filter Press 46L Filter Chamber Volume For Pigment Wastewater
  • Small Manual Plate Frame Filter Press 46L Filter Chamber Volume For Pigment Wastewater

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: BQ3/320

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: in 10 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Filtration Area: 3m2 Filter Plate Size: 320*320mm
    Filter Chamber Volume: 46L Plate And Frame Total Number Number: 14pcs And 15 Pcs
    Filtrating Pressure: 0.6Mpa Filter Plate Material: Reinforced Polypropylene
    Structure: Plate-frame Type Platep Presssing Type: Manul Screw Jack Compress
    Function: Solid-liquid Separation Filter Beam Material: Carbon Steel
    Filter Medium: Filter Cloth
    Highlight:

    stainless steel filter press

    ,

    dewatering filter press

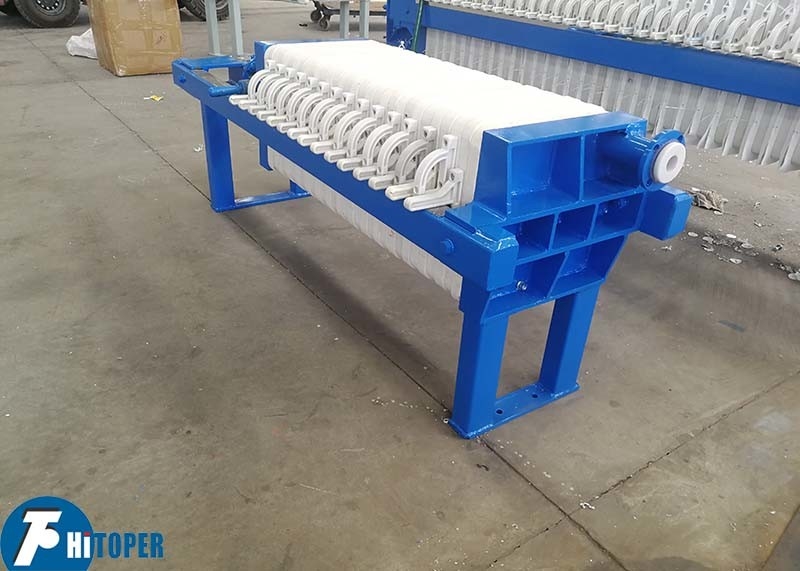

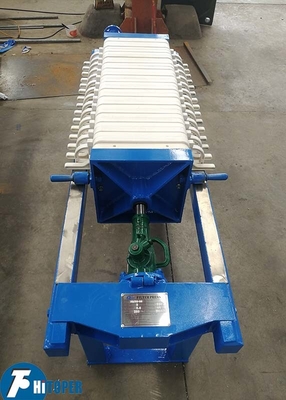

    Small Manual Operation Plate Frame Filter Press 46L Filter Chamber Volume For Pigment Wastewater





    Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.



    This small filter press is widely used in oil, chemical industry, dye, metallurgy, pharmacy, food, paper making and sewage treatment, and other solid-liquid separation fields. These machines are an effective, inexpensive choice for handling smaller quantities of material.





    Features:



    1. Filter area of 1-40m2.

    2. Pure reinforced PP filter plate, resisting to stronger corrosion and endure high pressure.

    3. Enduring high temperature.

    4. Various types meet your needs: model X320, X450, X630 with different filter areas.

    5. Fast filtering speed.

    6. It is convenient to discharge the mud cake.

    7. It could bear filter pressure as high as 3.0 Mpa.





    Technical data,



    Type

    Filter area

    (m2)

    Filter plate size (mm) Cake thickness (mm) Chamber volume (L) Plate number (PCS) Frame number (PCS)

    Filtrating pressure

    (MPa)

    Weight (kg)

    Dimensions (mm)

    (L×W×H)

    BQ1/320-30U 1 320 x 320 30 15 4 5 0.6 500 1180×570×660
    BQ2/320-30U 2 31 9 10 545 1440×570×660
    BQ3/320-30U 3 46 14 15 570 1700×570×660
    BQ4/450-30U 4 450 x 450 60 9 10 0.6 798 1750×800×900
    BQ6/450-30U 6 91 14 15 858 2050×800×900
    BQ8/450-30U 8 121 19 20 918 2350×800×900
    BQ10/450-30U 10 151 24 25 978 2650×800×900
    BQ12/450-30U 12 182 29 30 1038 2950×800×900
    BQ15/450-30U 15 225 36 37 1122 3080×800×900
    BQ16/450-30U 16 243 39 40 1158 3560×800×900
    BQ15/630-30U 15 630 x 630 226 18 19 0.6 1579 2580×800×900
    BQ20/630-30U 20 297 24 25 1796 2940×800×900
    BQ30/630-30U 30 452 37 38 2258 3720×800×900
    BQ40/630-30U 40 595 49 50 2893 4540×800×900







    Why choose us:



    1. Manufacture experience,

    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

    2. Technology capacity,

    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

    3. Our superiority,

    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

    4. Best after-sales,

    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.





    Small Manual Plate Frame Filter Press 46L Filter Chamber Volume For Pigment Wastewater
