| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | BQ3/320 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | in 10 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 50 sets per month |
| Filtration Area: | 3m2 | Filter Plate Size: | 320*320mm |
|---|---|---|---|
| Filter Chamber Volume: | 46L | Plate And Frame Total Number Number: | 14pcs And 15 Pcs |
| Filtrating Pressure: | 0.6Mpa | Filter Plate Material: | Reinforced Polypropylene |
| Structure: | Plate-frame Type | Platep Presssing Type: | Manul Screw Jack Compress |
| Function: | Solid-liquid Separation | Filter Beam Material: | Carbon Steel |
| Filter Medium: | Filter Cloth | ||
| High Light: | stainless steel filter press,dewatering filter press |
||

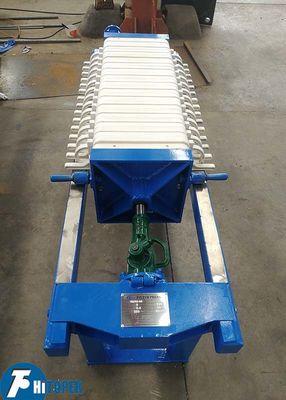

Small Manual Operation Plate Frame Filter Press 46L Filter Chamber Volume For Pigment Wastewater
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
This small filter press is widely used in oil, chemical industry, dye, metallurgy, pharmacy, food, paper making and sewage treatment, and other solid-liquid separation fields. These machines are an effective, inexpensive choice for handling smaller quantities of material.
Features:
1. Filter area of 1-40m2.
2. Pure reinforced PP filter plate, resisting to stronger corrosion and endure high pressure.
3. Enduring high temperature.
4. Various types meet your needs: model X320, X450, X630 with different filter areas.
5. Fast filtering speed.
6. It is convenient to discharge the mud cake.
7. It could bear filter pressure as high as 3.0 Mpa.
Technical data,
|
Type |
Filter area (m2) |
Filter plate size (mm) | Cake thickness (mm) | Chamber volume (L) | Plate number (PCS) | Frame number (PCS) |
Filtrating pressure (MPa) |
Weight (kg) |
Dimensions (mm) (L×W×H) |
| BQ1/320-30U | 1 | 320 x 320 | 30 | 15 | 4 | 5 | 0.6 | 500 | 1180×570×660 |
| BQ2/320-30U | 2 | 31 | 9 | 10 | 545 | 1440×570×660 | |||
| BQ3/320-30U | 3 | 46 | 14 | 15 | 570 | 1700×570×660 | |||
| BQ4/450-30U | 4 | 450 x 450 | 60 | 9 | 10 | 0.6 | 798 | 1750×800×900 | |
| BQ6/450-30U | 6 | 91 | 14 | 15 | 858 | 2050×800×900 | |||
| BQ8/450-30U | 8 | 121 | 19 | 20 | 918 | 2350×800×900 | |||
| BQ10/450-30U | 10 | 151 | 24 | 25 | 978 | 2650×800×900 | |||
| BQ12/450-30U | 12 | 182 | 29 | 30 | 1038 | 2950×800×900 | |||
| BQ15/450-30U | 15 | 225 | 36 | 37 | 1122 | 3080×800×900 | |||
| BQ16/450-30U | 16 | 243 | 39 | 40 | 1158 | 3560×800×900 | |||
| BQ15/630-30U | 15 | 630 x 630 | 226 | 18 | 19 | 0.6 | 1579 | 2580×800×900 | |
| BQ20/630-30U | 20 | 297 | 24 | 25 | 1796 | 2940×800×900 | |||
| BQ30/630-30U | 30 | 452 | 37 | 38 | 2258 | 3720×800×900 | |||
| BQ40/630-30U | 40 | 595 | 49 | 50 | 2893 | 4540×800×900 |
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
