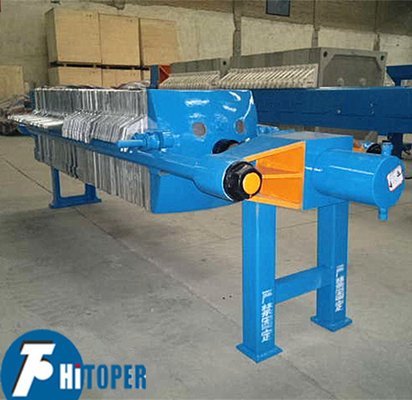

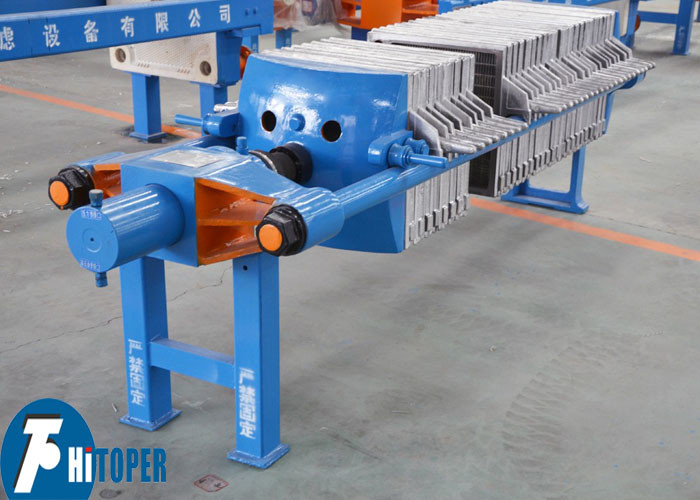

Cast Iron Filter Press for Chemical Industry with High Filtration Speed and Durability

Cast Iron Filter Press for Chemical Industry with High Filtration Speed and Durability

Cast Iron Filter Press for Chemical Industry with High Filtration Speed and Durability

Product Details:

Place of Origin: China
Brand Name: TOPER
Certification: CE
Model Number: BY20/630-30U

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export standard wooden package.
Delivery Time: 30-40 working days after receive your payment
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 20 sets per month for this cast iron filter press
Contact Now
Detailed Product Description
Filter Area: 20m2 Filter Plate Size: 630*630mm
Filter Chamber Volume: 298L Filter Plate And Number Number: 49pcs
Filtrating Pressure: 0.6Mpa Motor Power: 2.2kw
Main Feature: To Bear High Temperature To Be 300C. Construction: Cast Iron.
Structure: Plate-frame Type Function: Solid-liquid Separation
Application: Petrochemical,metallurgy,oil,ceramics Industry Feeding Method: Corner Feeding
Cake Discharge Metod: Manual Filtrate Discharge Type: Open Flow Or Close Flow
High Light:

filter press for sewage treatment plant


filter press for sludge dewatering

Manual Cake Discharge Hydraulic High Temperature Cast Iron Filter Press For 150℃ Paint Treatment



Our Zhengzhou Toper company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. With high quality and best sale-service, having received a good reputation.


Cast iron filter press is made by high quality cast iron or ductile iron precision casting, with characteristics of high strength to withstand large filtration pressure, high temperature, filtration speed, low cake moisture, unloading, and long service life.


Applied to chemical industry, like gypsum, thiamine, Glauber's salt, ferric sulfate, copper sulfate, nickel sulfate, potassium sulfide, acetic acid, borax, rubber additives, oils, various resins, etc..



Features of this cast iron filter press,


1. Widely be used for dewatering high temperature materials.

2. Plate and frame of filter press, the heart of filter press

3. Material of plate and frame: cast iron

4. Max temperature: up to 300 degree celsius

5. Resistance to high temperature and high pressure.

6. Long use life.



Technical data of this cast iron filter press,



Filter area (m2)

Filter plate size (mm) Cake thickness (mm) Chamber volume (L) Plate number (pcs) Frame number (pcs) Filtrating pressure (Mpa) Weight (kg)



BQ1/320-25 1 320 x 320 25 13 4 5 1.0 380 1150×760×650
BQ2/320-25 2 25 9 10 500 1390×760×650
BQ3/320-25 3 38 14 15 620 1750×760×650
BQ4/450-25 4 450 x 450 25 51 9 10 0.8 1060 1780×760×650
BQ6/450-25 6 76 14 15 1160 2055×870×880
BQ8/450-25 8 102 19 20 1360 235×870×880
BQ12/450-25 12 152 29 30 1530 2785×870×880
BQ16/450-25 16 203 39 40 1760 3305×870×880
XQ4/450-25 4 450 x 450 25 51 9   1.0 960 1900×870×880
XQ6/450-25 6 76 14 1140 2030×870×880
XQ8/450-25 8 102 19 1460 2280×870×880
XQ12/450-25 12 152 29 1960 2780×870×880
XQ16/450-25 16 203 39 2460 3280×870×880
BQ20/630-25 20 630 x630 25 298 24 25 0.6 3300 2750×1150×1100
BQ30/630-25 30 452 37 38 4500 3220×1150×1100
BQ40/630-25 40 295 49 50 5600 3870×1150×1100
BY20/630-25 20 298 24 25 3700 2960×1150×1100
BY30/630-25 30 452 37 38 5000 3610×1150×1100
BY40/630-25 40 595 49 50 6100 4210×1150×1100
XQ20/630-25 20 25 248 24   0.8 3400 2600×1100×1100
XQ30/630-25 30 377 37 4700 3250×1100×1100
XQ40/630-25 40 496 49 5900 3900×1100×1100
XY20/630-25 20 248 24   3800 2950×1100×1100
XY30/630-25 30 377 37 5200 3580×1100×1100
XY40/630-25 40 496 49 6400 4180×1100×1100





Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.



How to order filter press:

1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
4. Our company can supply non-standard model to meet your special demands.



Our Services

Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.



Company Information

1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 10 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
