|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||20-30 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||500 sets per month for this membrane filter press|
|Filter Area:||100m2||Filter Plate Size:||1000*1000mm|
|Filter Chamber Volume:||1378L||Filter Number:||57pcs|
|Filtrating Pressure:||0.6Mpa||Motor Power:||4.0kw|
|Structure:||Can Be Covered With Stainless Steel||Certificate:||CE|
|Compress Type:||Hydraulic Compress||Feeding Type:||Center Feeding|
|Liquid Discharge Type:||Open Flow Or Close Flow||Voltage:||380V/220V /400-450V/Customized|
|Conditon:||New||Color:||Orange Or Customized|
sludge dewatering equipment,
sludge filter press

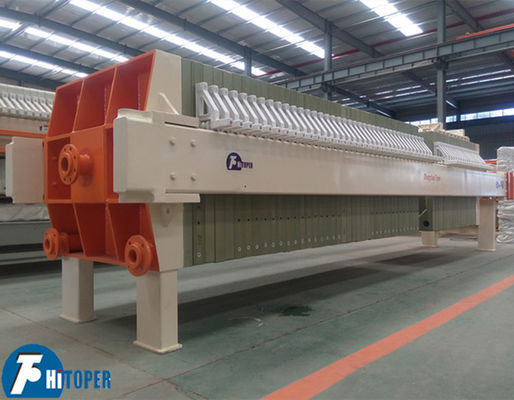

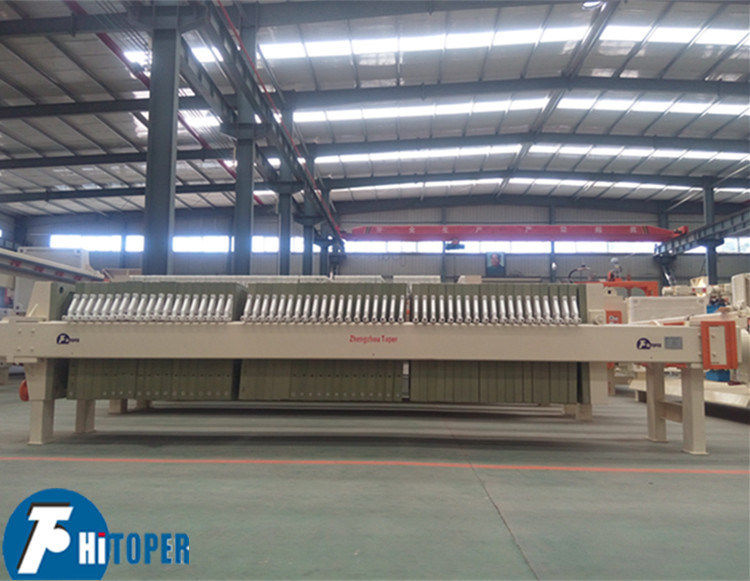

1000x1000mm Plate Membrane filter press,1.2Mpa High Pressure Industrial Dewatering Filter Machine
The edge of the embedded filter press filter plate is sewn into the seal ring, which is embedded in the filter plate during installation, which can effectively prevent the capillary leakage. The filter material is pushed from the feed hole into the filter chamber between the adjacent filter plates. The filtrate in the material passes through the filter cloth on both sides of the filter plate or filter frame and is discharged along the channel between the filter cloth and the uneven surface of the filter plate Filter press, filter residue was trapped and pressed into a cake to stay in the filter room, play a filter separation effect.
We manufacture membrane filter press matching international standards and quality. The membrane squeeze plate is offered to suit up to 12 bar squeezing pressure. Due to additional liquid extraction during the squeeze cycle, solid percentages increases. Filtration cycle time are reduced compared to the conventional recess chamber plate(Plate and frame) filter press, resulting in Benefits of membrane plates v/s chamber plates. Conventional type filter presses are limited to using feed pump discharge pressure to produce dry solids, resulting in longer cycle times. The membrane squeeze plate reduced the long packing cycle by introducing a squeeze medium in to the center of the membrane squeeze plate. This allows the membranes to flex against the cake, compressing and packing it. Filtration cycle are shorter, dry solids are increased, and waste volume is reduced. This membrane are designed to dewater the most difficult sludge and protect the plates against potential cake less chambers. The high pressure membranes were developed for difficult filtration processes. Extreme squeeze pressure are possible due to the combination of the special feed inlet design and selected special materials.
Membrane filter press features,
Improved Cake Washing: Our Membrane Filter Presses improve cake washing by initiating a low-pressure pre-squeeze before the wash cycle is begun. This pre-squeeze eliminates channeling (cracks and less well-formed areas of the cake) and produces a uniform, homogeneous filter cake and optimum wash efficiency.
Highest Cake Solids: By applying a high pressure squeeze to the filter cake you can produce the final cake with solids content from 50 to 100% greater than can be achieved with conventional filter presses. This is important for both maximum yield, where a high value liquid is your product, or high solids-content, where reduced moisture in the final cake is critical.
Our Membrane Filter Press provides a dryer cake that can be obtained using high feed pumping pressure in a conventional filter press. It significantly reduces or eliminates downstream thermal drying and associated costs in energy and time.
Membrane filter press application,
Best for Dry fractination of Palmolein, ETP-Plants, Granites, Marble & Ceramic Industries, Gypsum, Bentoite, Crystalline Salts, Pigments, Dry precipitates, Sludges generated from Galvanizing Plants containing Chromium, Zinc, Aluminium, Copper, Nickel or Cadmium, ... and many more.
All technical data of our membrane filter press:
|Filter area(m2)||Filter plate size(mm)||Filter cake thickness(mm)||Filter chamber volume(L)||
Filter plate number
|Filter plate size(mm)||
Filter cake thickness
Filter chamber volume
Filter plate number
Why choose us,
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
