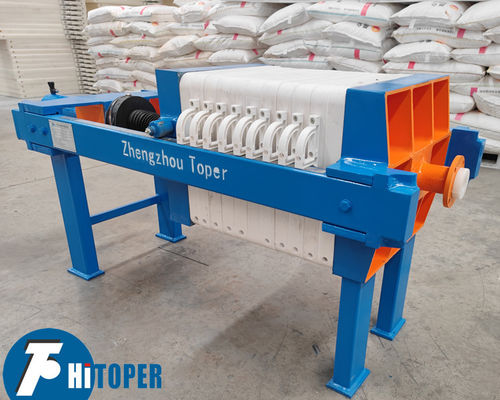

Chemical / Food Industrial Filter Press High Pressure Hydraulic Compress

Chemical / Food Industrial Filter Press High Pressure Hydraulic Compress



Industrial filter press are ideal for batch filtration of liquids and slurries with high solids loading (5-45 wt%). If it can be pumped, it can be filtered in a filter press. Sometimes referred to as plate and frame filters, filter presses generally work in a "batch" manner to filter or dewater slurries or sludges.



Individual, cloth-covered filter plates are pressed together with hydraulic cylinder forming a filter chamber with internal holes. The feed pump sends the slurry into the filter press where the clean filtrate passes through the filter cloth leaving behind the solids in the form of a filter cake. The filter plates are separated at the end of the filtration cycle and the solid cake is discharged by gravity.





Strucutre:



1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.

2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.

3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.

4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection

5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.





Technical parameter:



Type	Filter area (m2)	Filter plate size (mm)	Filter cake thickness (mm)	Filter chamber volume (L)	Filter plate number (PCS)	Filtrating pressure (MPa)	Motor power (KW)	Weight (Kg)	Dimension (mm) (L×W×H)
XY4/450-30U	4	450×450	30	60	9	0.6	2.2	860	1950×700×900
XY6/450-30U	6			91	14			910	2200×700×900
XY8/450-30U	8			121	19			960	2450×700×900
XY10/450-30U	10			151	24			1010	2700×700×900
XY12/450-30U	12			182	29			1060	2950×700×900
XY15/450-30U	15			225	36			1130	3300×700×900
XY16/450-30U	16			243	39			1160	3450×700×900
XY15/630-30U	15	630×630		226	18			1725	2640×900×1100
XY20/630-30U	20			297	24			1993	3940×900×1100
XY30/630-30U	30			452	37			2360	3590×900×1100
XY40/630-30U	40			595	49			2788	4300×900×1100
XY30/800-30U	30	800×800		460	23			2170	3700×1400×1300
XY40/800-30U	40			595	30			2450	4300×1400×1300
XY50/800-30U	50			748	38			2700	4840×1400×1300
XY60/800-30U	60			902	46			2980	5440×1400×1300
XY70/800-30U	70			1056	54			3250	6040×1400×1300
XY30/870-30U	30	870×870		460	23			2580	3180×1200×1300
XY40/870-30U	40			595	30			2925	3570×1200×1300
XY50/870-30U	50			748	38			3318	4110×1200×1300
XY60/870-30U	60			902	46			3712	4550×1200×1300
XY70/870-30U	70			1056	54			4106	4990×1200×1300
XY80/870-30U	80			1210	62			4561	5430×1200×1300





About our company:



Our Zhengzhou Toper company is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment. from the year 2006, we have exported to more than 100 countries, and accuralated lots of practice experience. so we can give you our best products advise and after-sales service.

Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
