15m2 Screw Jack Compress 450 * 450mm PP Material Plate Chamber Filter Press

15m2 Screw Jack Compress 450 * 450mm PP Material Plate Chamber Filter Press

    • 15m2 Screw Jack Compress 450 * 450mm PP Material Plate Chamber Filter Press
    • 15m2 Screw Jack Compress 450 * 450mm PP Material Plate Chamber Filter Press
  • 15m2 Screw Jack Compress 450 * 450mm PP Material Plate Chamber Filter Press

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XQ15/450-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 500 sets per month for this industrial filter press
    Contact Now
    Detailed Product Description
    Filtration Area: 15m2 Chamber And Membrane Plate Dimension: 450*450mm
    Filtration Chamber Volume: 225L Chamber And Membrane All Number: 36pcs
    Filtrating Pressure: 0.6Mpa Cake Discharge Type: By Worker
    Compress Type: Jack Screw Filter Plate Material: Reinforced Polypropylene
    Function: Solid-liquid Separation Application: Food,beverage,chemcial,mineral,pharmacy,biological Etc.
    Condition: New
    Highlight:

    dewatering filter press

    ,

    wastewater filter press

    15m2 Screw Jack Compress 450 * 450mm PP Material Plate Chamber Filter Press





    Hot usage in the below industries:



    Chemicals Industry Dewatering - Pigments, Organic Polymers, Silica Gel, Organic Dyes, Carbon Fines, Brine Sludge, Ethanol Slops, Phosphoric Acid, Explosives Wastes, Paint Sludge, Latex, Pesticide Wastes



    Electronics Industry Dewatering - Metal Hydroxide Sludge, R.O. Sludge



    Food Industry Dewatering - Brewery Mash, Sugar Carbonation Sludge, Wine Lees, Yeast, Apple Juice Polishing, Meat Packaging Wastes, Scrap Candy, Palm Oil



    Hazardous Waste Remediation - Soil Washing, Landfill Leachate, Heavy Metals Precipitation

    Metals, Metalworking, Transportation Industries Dewatering - Steel Rolling Mill Waste, Foundry Sludge, Plating Wastes, Paint Spray Booth Waste, Oily Waste



    Mining Industry Dewatering - Titanium Dioxide, Clay, kailin, Copper, Zinc, Lead, Gold , Mineral Tailings, Coal Tailings, Acid Mine Drainage, Ready Mix Washout



    Municipal Waste Dewatering - Primary, Secondary Raw and Digested Sludge, Teritary Lime Sludge



    Pulp & Paper Filtration - Recausticizing Wastes, Biological Waste Treatment Sludge, Secondary Fiber, De-inking Waste Recovery



    Oil & Petrochemical Recovery - Drilling & Completion Fluids, Slop Oil Recovery



    Pharmaceuticals, Toiletries, Cosmetics Filtration- Biological Treatment Sludge



    Power Industry Dewatering - Cooling Tower Sludge, Scrubber Sludge, Fly Ash, Coal Pile Runoff



    Water Supply Dewatering - Alum, Ferric, Polymer and Softening Sludge, Dy Wash Suspension Filtration





    Descriotion:

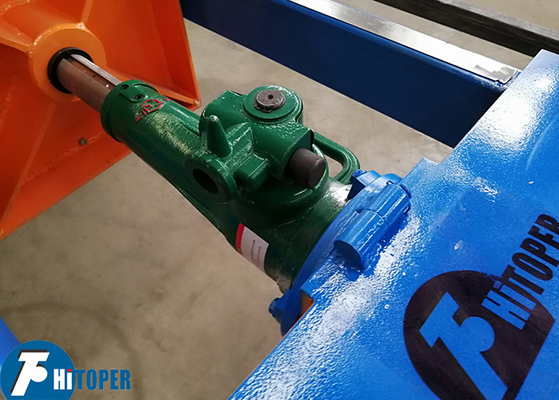

    1. A screw jack as the pressing device, don’t need power.

    2. Filter area ranges from 1m2 to 40m2, smaller than hydraulic or automatic filter press, better for beginner start production one.

    3. Chamber type and plate & frame type for your choosing.

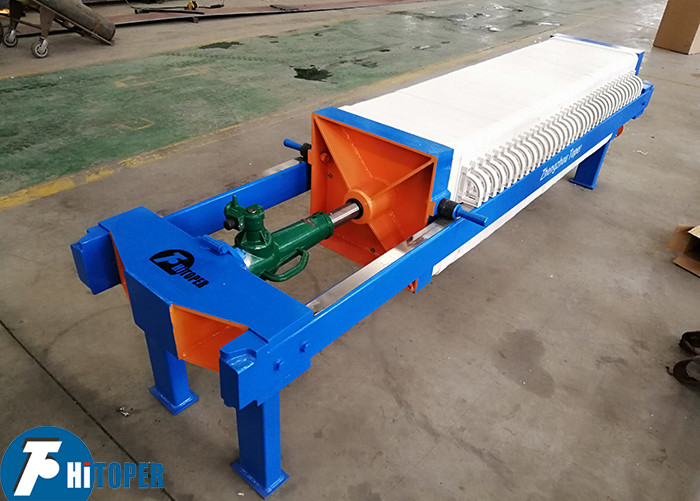

    This Manual operation/jack screw filter press is the simplest type one, it consists of screw jack, beam, filter plate and filter cloth.





    Basic technical data of our jack filter press:



    Type

    Filter area

    (m2)

    Filter plate size (mm) Cake thickness (mm) Chamber volume (L) Plate number (PCS)

    Filtrating pressure

    (MPa)

    Weight (kg)

    Dimensions

    (mm)

    (L×W×H)

    XQ1/320-30U 1 320 x 320 30 15 4 0.6 490 1070×570×660
    XQ2/320-30U 2 31 9 528 1295×570×660
    XQ3/320-30U 3 46 14 550 1520×570×660
    XQ4/450-30U 4 450 x 450 60 9 0.6 780 1630×800×900
    XQ6/450-30U 6 91 14 830 1880×800×900
    XQ8/450-30U 8 121 19 880 2130×800×900
    XQ10/450-30U 10 151 24 930 2380×800×900
    XQ12/450-30U 12 182 29 980 2630×800×900
    XQ15/450-30U 15 225 36 1030 2980×800×900
    XQ16/450-30U 16 243 39 1050 3130×800×900
    XQ15/630-30U 15 630 x 630 226 18 0.6 1257 2370×1080×1060
    XQ20/630-30U 20 297 24 1347 2670×1080×1060
    XQ30/630-30U 30 452 37 1693 3320×1080×1060
    XQ40/630-30U 40 595 49 2193 4020×1080×1060





    About our company:



    Our Zhengzhou Toper company is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment. from the year 2006, we have exported to more than 100 countries, and accuralated lots of practice experience. so we can give you our best products advise and after-sales service.

    Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!





    All of our products as below:



    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press

    15. SS type three-foot upper discharge centrifuge

    16. SD type three-foot and filter bag hoist discharge centrifuge

    17. PD type filter bag hoist discharge centrifuge

    18. Centrifuge of up discharge, three foot, clean series SSB, SB

    19. SX type manual top discharge centrifuge

    20. PS type manual top discharge centrifuge

    21. SGZ type automatic scraper bottom discharge centrifuge

    22. PGZ type scarper bottom discharge centrifuge

    23. LW series decanter centrifuge

    24. Tubular centrifuge

    25. Multi-layer stainless steel frame filter

    26. Bag filter

    27. Diatomite filter

    28. Filter plate

    29. Filter cloth

    30. Vacuum disc filter

    15m2 Screw Jack Compress 450 * 450mm PP Material Plate Chamber Filter Press
