|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||about 15 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||100 sets per month for this multi-layer plate and frame filter|
|Filter Area:||4||Plate And Frame Diameter:||400mm|
|Filter Plate And Number Number:||32||Filtrating Pressure:||0.3Mpa|
|Motor Power:||2.2kw||Material:||304 Or 3016 Stainless Steel|
|Function:||Purification,clarification,separation,dewatering Etc.||Application:||Food,oil,chemical,beverage Etc.|
|Compress Type:||Manual Screw Pressing||Feeding Method:||Pump Feeding Or Manual Feeding|
|Solid Discharge Method:||Manual||Liquid Discharge Method:||Flange Side Auto Discharge|
plate frame filter press,
filter press equipment

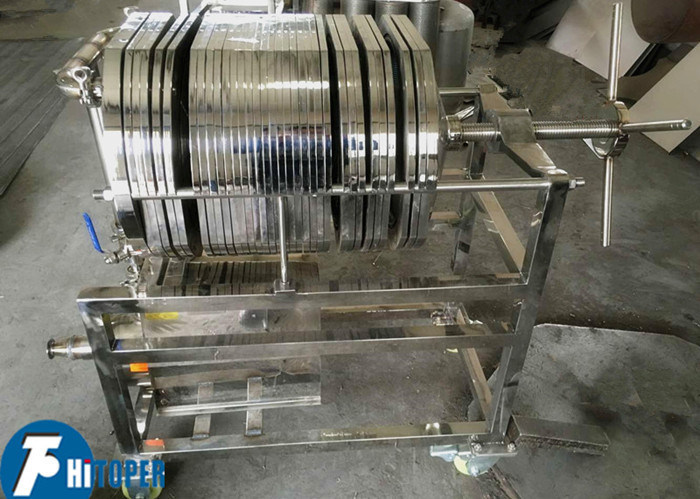

Chemical Industry Plate And Frame Filter 304 / 316L Stainless Steel Material Made
This multi-layer plate and frame filter is used for various suspension of solid-liquid separation with a wide range of applied in medicine, food, chemical, environmental protection, water treatment, electronic, textile, electroplating and other related industries.
This filter is made with high quality 304 or 316L stainless steel material. The structure is closed, and uses the two-sided trawl doors, can make return washing process, makes the membrane without the residue to separate the thick and thin filtration, according to needs of flow capacity, to increase or reduce layers such characteristics.
Suspension goes into the filter room with the help of a pump , due to pressure, the filtrate through the filter layer and the membrane or other filter, is discharged out of fluid discharge outlet, the residues were kept in the room formed by plate and frame, to achieve solid-liquid separation.
1. The filter is made of SUS304 or SUS316L stainless steel material, corrosion-resistant durability.

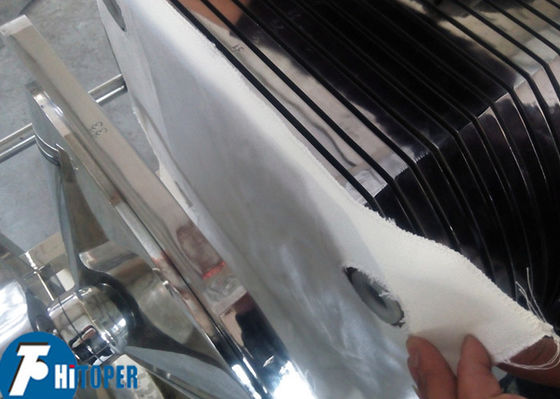

2. Plate is with thread-like structure, according to different filter media and the production process(initial filter, semi-filter, fine filter) to replace a different filter material (direct use sterile filtration membrane to achieve the purpose).
3. Users can increase or reduce the quantity of layers as per filter flow capacity. When working, the filter is in the state of sealing and pressure , without loss of liquid material, liquid clarity is good, and also based on user needs,
4. We can supply a special multi-stage filter, first stage put a coarse filter, and second stage put fine filter material, saving time and improve the filtering accuracy.
5. All parts of the machine sealed use silicone rubber seals, high temperature, non-toxic, no leakage, good sealing performance.
6. The machine can be fitted with automatically liquid return device, as per needs of the user . when the pump stops, open the return value, automatic discharge of all sediments (both exhaust function), and return with clean water from the tube recoil to wash, very convenient.
The size of filter material (mm)
Filter precision (μm)
Overall dimension (mm)
