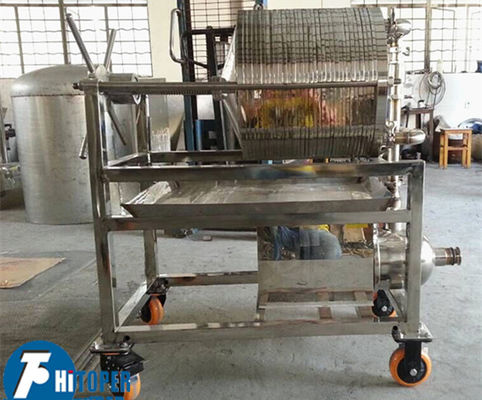

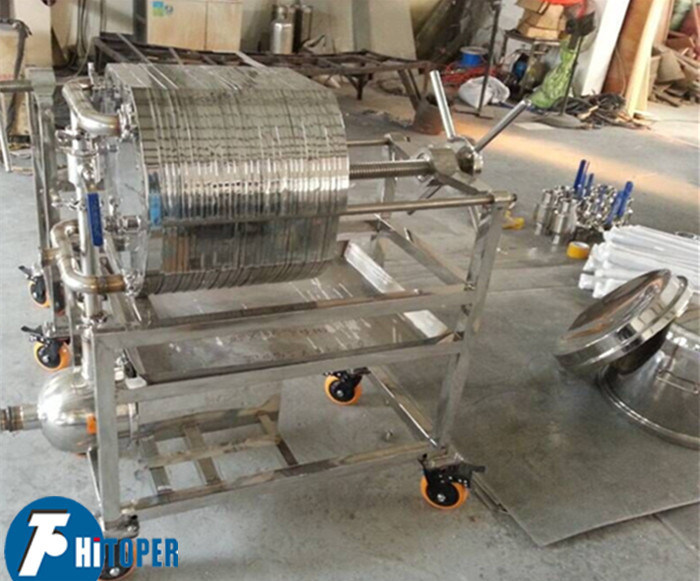

SUS304/SUS316L Plate and Frame Filter for Precision/Half-Precision Filter Requirements

SUS304/SUS316L Plate and Frame Filter for Precision/Half-Precision Filter Requirements

    • SUS304/SUS316L Plate and Frame Filter for Precision/Half-Precision Filter Requirements
    • SUS304/SUS316L Plate and Frame Filter for Precision/Half-Precision Filter Requirements
  • SUS304/SUS316L Plate and Frame Filter for Precision/Half-Precision Filter Requirements

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DZCR400-32

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: about 15 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 100 sets per month for this multi-layer plate and frame filter
    Contact Now
    Detailed Product Description
    Filter Area: 4m2 Plate And Frame Diameter: 400mm
    Filter Plate And Number Number: 32 Filtrating Pressure: 0.3Mpa
    Motor Power: 2.2kw Material: 304 Or 316 Stainless Steel
    Function: Solid-liquid Separtion Application: Oil,water Treatment,electroplating,food Etc.
    Feeding Method: Pump Feeding Or Manual Pressing Type: Manual Screw Press
    Filter Medium: Filter Cloth,filter Paper,filter Membrane Etc.
    High Light:

    industrial filter press


    filter press equipment

    High Grade Stainless Steel Filter Machine For Frying Oil Clarification



    Toper multi-layer stainless steel filter is stainless steel multi-layer plate and frame filter. It is fit for enclosed filter in liquids with concentration 50%, low viscosity and little slag so as to meet precision filter and half-precision filter requirements like refining, sterilization and clarification. By directly using microporous

    membrane, material can achieve aseptic filtration without passing microporous membrane filter.


    Features of the multi-layer stainless steel frame filter


    1. All parts of this liquor filter is made by SUS304 or SUS316L high grade stainless steel with corrosion


    2. Filter plate is designed screw structure ,can change different filter material according to

    different filter medium and productive technology. also can increase or decrease the quantity of layer

    according to your filter flow.

    3. When it is working, it filtrates with pressure seal, no lose of liquid and good clearity. You can customize multistage filter device, first stage is rough filter stage, secondary is fine filter stage, then can safe time , increase your filter ratings.

    4. The sealing part of this machine is silica gel seal with high-temperature resistance, non-poisonous and no leakage.

    5. When working, suspension goes into the filter chamber with the help of a pump, due to the pressure, the

    filtrate go through the filter layer and the membrane or other filter, and then discharge out. and the soli

    parts retained in the chambers to reach separation.


    Technical parameters:






    ( m2)

    The size of filter material (mm)

    Filter precision (μm)

    Filtration pressure


    Water flow


    Motor power


    Overall dimension (mm)


    DZCR-100 10 0.078 Ф100 0.8 0.15 0.8 0.55 600×300×600
    DZCR-150 10 0.17 Ф150 0.8 0.15 1.5 0.75 650×380×650
    DZCR-200 10 0.34 Ф200 0.8 0.15 2 1.1 650×400×700
    DZCR-300 10 0.7 Ф300 0.8 0.15 4 1.1 700×500×800
    DZCR-400 10 1.25 Ф400 0.8 0.15 6 1.1 900×600×1000
    DZCR-400 16 2 Ф400 0.8 0.15 9 1.5 1000×600×1000
    DZCR-400 20 2.5 Ф400 0.8 0.2 10 1.5 1100×600×1000
    DZCR-400 32 4 Ф400 0.8 0.3 13 2.2 1320×600×1000
    DZF-200 10 0.4 200X200 0.8 0.15 3 1.1 650×380×650
    DZF-300 10 0.9 300X300 0.8 0.15 6 1.1 700×500×800
    DZF-400 10 2 400x400 0.8 0.15 10 1.5 900×600×1000
    DZF-400 20 3 400x400 0.8 0.15 12 1.2 1100×600×1000
    DZF-400 26 4 400x400 0.8 0.2 15 2.2 1150×600×1000
    DZF-400 32 5 400x400 0.8 0.2 18 2.2 1200×600×1000
    DZF-400 38 6 400x400 0.8 0.3 21 2.2 1300×600×1000
    DZF-400 44 7 400x400 0.8 0.3 23 3 1350×600×1000



    SUS304/SUS316L Plate and Frame Filter for Precision/Half-Precision Filter Requirements



    Why choose us :


    1. About Toper

    Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional

    exporter and service provider of filter and separation equipment.
    Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30

    more countries and areas excluding China mainland.
    Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey,

    Uzbekistan and Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli,

    Palestinian, Oman, Bahrain, Iran; Europe: Russia, Italy, Spain, Ukraine, Finland, Poland,

    Romania; North America: Canada, America; South America: Mexico, Guatemala, Argentina,

    Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.

    2. Products
    Full automatic filter press, membrane filter press, mechanical compress filter press, jack

    compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate

    filter press, belt squeezing filter press, belt thickening and dewatering filter press, three-foot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge, tubular centrifuge, vacuum disc type filter, various filter equipment, filter plate and filter cloth and so on.


    3. Service

    We have professional person on line to advise you the most suitable type of machie for according to your requirement.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine .Arrange the schedule if you pay a visit to our factory.
