| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | DZCR400-32 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | about 15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 100 sets per month for this multi-layer plate and frame filter |
| Filter Area: | 4m2 | Plate And Frame Diameter: | 400mm |
|---|---|---|---|
| Filter Plate And Number Number: | 32 | Filtrating Pressure: | 0.3Mpa |
| Motor Power: | 2.2kw | Material: | 304 Or 316 Stainless Steel |
| Function: | Purification,clarification,separation,filtration Etc. | Application: | Medicine,food ,chemical,water Treatment |
| Feeding Method: | Pump Feeding Or Manual | Discharge Method: | Manual |
| Filter Medium: | Filter Cloth,filter Paper,filter Membrane Etc. | Compress Type: | Manual Screw Pressing |
| High Light: | plate frame filter press,filter press equipment |
||

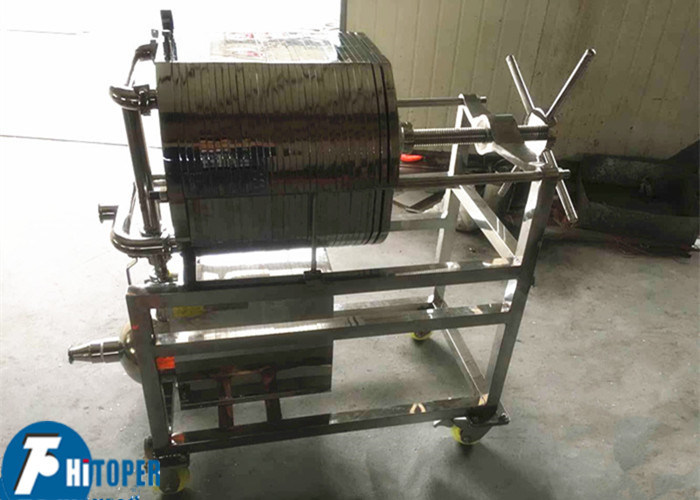

Stainless Steel Plate And Frame Filter For Suspension Sludge Dewatering
Toper multi-layer stainless steel filter is stainless steel multi-layer plate and frame filter. It is fit for enclosed filter in liquids with concentration 50%, low viscosity and little slag so as to meet precision filter and half-precision filter requirements like refining, sterilization and clarification.
By directly using microporous membrane, material can achieve aseptic filtration without passing microporous membrane filter.
Features of the Stainless Steel Plate And Frame Filter For Suspension Sludge Dewatering :
1. All parts of this liquor filter is made by SUS304 or SUS316L high grade stainless steel with corrosion
resistance.
2. Filter plate is designed screw structure ,can change different filter material according to
different filter medium and productive technology. also can increase or decrease the quantity of layer
according to your filter flow.
3. When it is working, it filtrates with pressure seal, no lose of liquid and good clearity. You can customize multistage filter device, first stage is rough filter stage, secondary is fine filter stage, then can safe time , increase your filter ratings.
4. The sealing part of this machine is silica gel seal with high-temperature resistance, non-poisonous and no leakage.
Working principle of the Stainless Steel Plate And Frame Filter For Suspension Sludge Dewatering:
When working, suspension goes into the filter chamber with the help of a pump, due to the pressure, the
filtrate go through the filter layer and the membrane or other filter, and then discharge out. and the soli
parts retained in the chambers to reach separation.
Technical parameters:
|
Model |
Layer |
Filter area ( m2) |
The size of filter material (mm) |
Filter precision (μm) |
Filtration pressure (MPa) |
Water flow (t/h) |
Motor power (KW) |
Overall dimension (mm) (L×W×H) |
| DZCR-100 | 10 | 0.078 | Ф100 | 0.8 | 0.15 | 0.8 | 0.55 | 600×300×600 |
| DZCR-150 | 10 | 0.17 | Ф150 | 0.8 | 0.15 | 1.5 | 0.75 | 650×380×650 |
| DZCR-200 | 10 | 0.34 | Ф200 | 0.8 | 0.15 | 2 | 1.1 | 650×400×700 |
| DZCR-300 | 10 | 0.7 | Ф300 | 0.8 | 0.15 | 4 | 1.1 | 700×500×800 |
| DZCR-400 | 10 | 1.25 | Ф400 | 0.8 | 0.15 | 6 | 1.1 | 900×600×1000 |
| DZCR-400 | 16 | 2 | Ф400 | 0.8 | 0.15 | 9 | 1.5 | 1000×600×1000 |
| DZCR-400 | 20 | 2.5 | Ф400 | 0.8 | 0.2 | 10 | 1.5 | 1100×600×1000 |
| DZCR-400 | 32 | 4 | Ф400 | 0.8 | 0.3 | 13 | 2.2 | 1320×600×1000 |
| DZF-200 | 10 | 0.4 | 200X200 | 0.8 | 0.15 | 3 | 1.1 | 650×380×650 |
| DZF-300 | 10 | 0.9 | 300X300 | 0.8 | 0.15 | 6 | 1.1 | 700×500×800 |
| DZF-400 | 10 | 2 | 400x400 | 0.8 | 0.15 | 10 | 1.5 | 900×600×1000 |
| DZF-400 | 20 | 3 | 400x400 | 0.8 | 0.15 | 12 | 1.2 | 1100×600×1000 |
| DZF-400 | 26 | 4 | 400x400 | 0.8 | 0.2 | 15 | 2.2 | 1150×600×1000 |
| DZF-400 | 32 | 5 | 400x400 | 0.8 | 0.2 | 18 | 2.2 | 1200×600×1000 |
| DZF-400 | 38 | 6 | 400x400 | 0.8 | 0.3 | 21 | 2.2 | 1300×600×1000 |
| DZF-400 | 44 | 7 | 400x400 | 0.8 | 0.3 | 23 | 3 | 1350×600×1000 |
