Solid Liquid Precise Separation Cartridge Filter Housing for Printing & Dyeing Area

Solid Liquid Precise Separation Cartridge Filter Housing for Printing & Dyeing Area

    • Solid Liquid Precise Separation Cartridge Filter Housing for Printing & Dyeing Area
    • Solid Liquid Precise Separation Cartridge Filter Housing for Printing & Dyeing Area
  • Solid Liquid Precise Separation Cartridge Filter Housing for Printing & Dyeing Area

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: TPS-7L

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 10 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 100 sets per month for this cartridge filter housing
    Contact Now
    Detailed Product Description
    Cartridge Filter Number: 7pc Cartridge Length: 30''
    Flow Rate: 5-6m3/h Diameter: 290mm
    Inlet & Outlet Diameter: DN50 Operation Pressure: 0.3Mpa
    Function: Solid-liquid Separation Filter Medium: Filter Element
    Filter Element Material: PP,Stainless Steel,Titanium Etc. Feeding Method: Side Feeding
    Discharge Method: Side Discharging
    High Light:

    stainless steel cartridge filter housing

    ,

    industrial cartridge filters

    Solid Liquid Precise Separation Cartridge Filter Housing for Printing & Dyeing Area

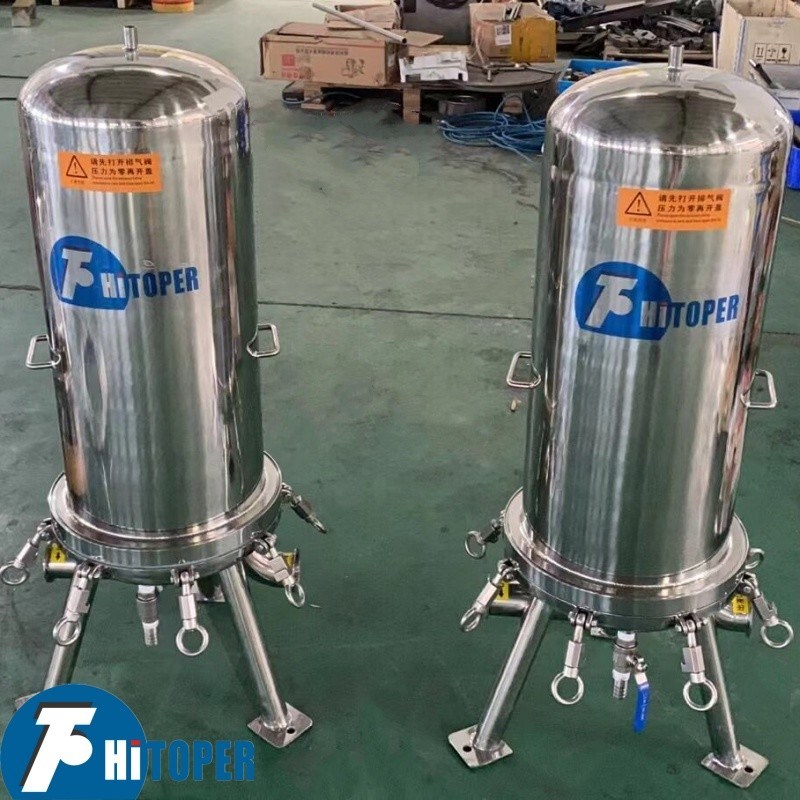

    Cartridge filter is a new kind of liquid filtrate multi-purpose filter, which consists of two parts: the filter body and the filter cartridge.



    It has been widely used in water, oil, paint and other liquid purification and machinery, metallurgy, chemical, textile, printing and dyeing, electroplating, pharmaceutical, food and other industries in the solid-liquid separation.



    Filters are made of stainless steel, reasonable structure, not only the small size, low cost, large

    flow rate, but also easy in overhauling,filter element exchange and assembly.Filtering accuracy 0.5-100um, flow 0.5-200m3 / h. According to user needs can also be produced with different sizes of products.

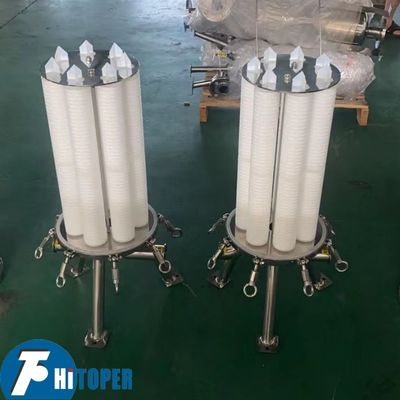

    Internal quantity of the filter element can be:single-core, 3-core, 5-core, 7-core, 9-core, 11-core, 13-core, 15-core, etc.Folded type filter element lengths :10,20,30,40 inch





    Features of the cartridge filter :



    1. The cartridge filter structure is similar to the bag filter ,the difference is that it used not the fitler bag but filter element.

    2. The cartridge fitler series based on the material of the filter element ,can be divided into variety types ,like the Stainless steel ,Cartridge filter,PP Cartridge Filter,RO reverse osmosis cartridge filter,Titanium rod cartridge filter,Resin cartridge filter,Double cartridge filter,Activated carbon filter filters,Wound cartridge filter and so on.

    3. The filter precision can reach as high as 0.1um





    Working principle of the cartridge filter :



    The prepared filtering liquid pressed into the filter by the imports, through the filter element from

    outside to the inside seeped the filter layer is filtered into the clear liquid, and then is discharged

    through the outlet. Impurities are trapped in the deep and surface of the filter element , so achieve

    the solid-liquid separation purpose.Drainage (sewage) port filter size, structure and size of the filter element depends on the design flow rate, filter media characteristics of the liquid.





    Cartridge filter housing technical parameters:



    Cartridge filter Cartridge length Flow rate Diameter Inlet & outlet diameter
    Single/1pc 10’’ 0.3-0.5m3/h 102mm DN20
    20’’ 0.5-1m3/h
    30’’ 1-1.5m3/h
    3pcs 10’’ 1-1.5m3/h 180mm DN25
    20’’ 1.5-3m3/h
    30’’ 2.5-4.5m3/h
    5pcs 10’’ 1.5-2.5m3/h 219mm DN32
    20’’ 3-5m3/h
    30’’ 4.5-7.5m3/h
    7pcs 20’’ 4-7m3/h 254mm DN40
    30’’ 6-10m3/h
    40’’ 8-14m3/h
    9pcs 20’’ 6-8m3/h 304mm DN50
    30’’ 8-12m3/h
    40’’ 16-24m3/h
    12pcs 30’’ 12-18m3/h 375mm DN50
    40’’ 16-24m3/h

    Solid Liquid Precise Separation Cartridge Filter Housing for Printing & Dyeing Area



















































    Packing and shipping :



    We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.





    More information about Toper :



    1. About Toper

    Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment.
    Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more

    countries and areas excluding China mainland.
    Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey, Uzbekistan and

    Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli, Palestinian, Oman, Bahrain, Iran;

    Europe: Russia, Italy, Spain, Ukraine, Finland, Poland, Romania; North America: Canada, America; South

    America: Mexico, Guatemala, Argentina, Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.
    Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the world markets.

    "Establish TOPER brand for the satisfaction of users" is our persistent pursuit.


    2. Products
    Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press,cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, three-foot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge, tubular centrifuge, vacuum

    disc type filter, various filter equipment, filter plate and filter cloth and so on.


    3. Application
    Our filter and separation equipments are widely used in mining, metallurgy, petroleum, chemical,

    environmental protection, electroplating, food, pharmacy, oil, biological, beverage, brewing, textiles,

    printing and dyeing, papermaking, inorganic salt, coal washing, sewage treatment, ceramics, leather such

    industries.
