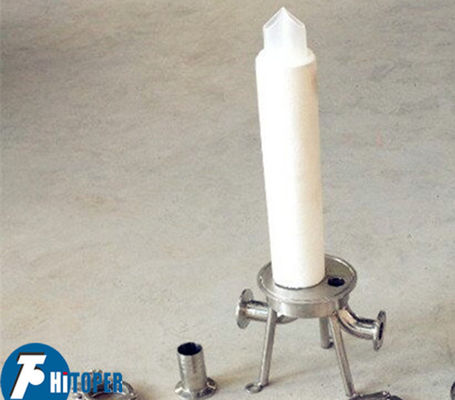

Mineral Water Filtration Cartridge Filter Stainless Steel Shell Type with CE Certified

Mineral Water Filtration Cartridge Filter Stainless Steel Shell Type with CE Certified

    • Mineral Water Filtration Cartridge Filter Stainless Steel Shell Type with CE Certified
    • Mineral Water Filtration Cartridge Filter Stainless Steel Shell Type with CE Certified
  • Mineral Water Filtration Cartridge Filter Stainless Steel Shell Type with CE Certified

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: TPC-1L

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 10 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 100 sets per month for this cartridge filter housing
    Contact Now
    Detailed Product Description
    Cartridge Filter Number: 1pc Cartridge Length: 10''
    Flow Rate: 0.3-0.5m3/h Diameter: 102mm
    Inlet & Outlet Diameter: DN20 Cartridge Material: PES, PP, Stainless Steel And So On.
    Sealing Structure: Upper Closed Platen Seal Sealing Type: Level 2 O-seal
    Surface Treatment: Mirror Polishing Or Sand Blasting Function: Purification,clarification,separation Etc.
    Feeding Method: Side Flange Feeding Discharge Method: Bottom Flange Discharging
    High Light:

    ss cartridge filter housing


    industrial cartridge filters

    Mineral Water Filtration Cartridge Filter Stainless Steel Shell Type with CE Certified



    Cartridge filter is a new kind of liquid filtrate multi-purpose filter, which consists of two parts: the filter body and the filter cartridge.

    It has been widely used in water, oil, paint and other liquid purification and machinery, metallurgy, chemical, textile, printing and dyeing, electroplating, pharmaceutical, food and other industries in the solid-liquid separation.


    With the usage, it can be divided into liquid filter and gas filter, and the specification can be 5’’, 10’’, 20’’, 30’’, 40’’ and so on. The working pressure is between 0.1Mpa--0.4Mpa. Due to the filter cartridge diameter is different, so the flow rate is also different. Like with the pure water, the standard is 300kg--500kg/h if use 0.2um-0.4um. If you want to improve the filtration capacity per hour, then you can use multi cartridges, or combination ones of 20’’, 30” and 40”.


    Suitable filter, choose the appropriate aperture, to sterilize the selection 0.2um-0.5um pore size filter, pharmaceutical injections, antibiotics, blood products, such as polysulfone filter. If the liquid to remove particles, microbes and bacteria larger ionic impurities, such as liquor, wine, wine, oral liquid, the choice 1-5um aperture can be. High temperature gas filtration and fermentation air sterilization gas should we use teflon filter.



    Features of the cartridge filter :


    1. The cartridge filter structure is similar to the bag filter ,the difference is that it used not the fitler bag but filter element.

    2. The cartridge fitler series based on the material of the filter element ,can be divided into variety types ,like the Stainless steel ,Cartridge filter,PP Cartridge Filter,RO reverse osmosis cartridge filter,Titanium rod cartridge filter,Resin cartridge filter,Double cartridge filter,Activated carbon filter filters,Wound cartridge filter and so on.

    3. The filter precision can reach as high as 0.1um



    Working principle of the cartridge filter :


    The prepared filtering liquid pressed into the filter by the imports, through the filter element from

    outside to the inside seeped the filter layer is filtered into the clear liquid, and then is discharged

    through the outlet. Impurities are trapped in the deep and surface of the filter element , so achieve

    the solid-liquid separation purpose.

    Drainage (sewage) port filter size, structure and size of the filter element depends on the design

    flow rate, filter media characteristics of the liquid.



    Cartridge filter housing technical parameters:


    Cartridge filter Cartridge length Flow rate Diameter Inlet & outlet diameter
    Single/1pc 10’’ 0.3-0.5m3/h 102mm DN20
    20’’ 0.5-1m3/h
    30’’ 1-1.5m3/h
    3pcs 10’’ 1-1.5m3/h 180mm DN25
    20’’ 1.5-3m3/h
    30’’ 2.5-4.5m3/h
    5pcs 10’’ 1.5-2.5m3/h 219mm DN32
    20’’ 3-5m3/h
    30’’ 4.5-7.5m3/h
    7pcs 20’’ 4-7m3/h 254mm DN40
    30’’ 6-10m3/h
    40’’ 8-14m3/h
    9pcs 20’’ 6-8m3/h 304mm DN50
    30’’ 8-12m3/h
    40’’ 16-24m3/h
    12pcs 30’’ 12-18m3/h 375mm DN50
    40’’ 16-24m3/h



    Mineral Water Filtration Cartridge Filter Stainless Steel Shell Type with CE Certified


    Packing and shipping :


    We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.



    More information about Toper :


    1. About Toper

    Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment.

    2. Global service
    Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more

    countries and areas excluding China mainland.
    Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey, Uzbekistan and

    Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli, Palestinian, Oman, Bahrain, Iran;

    Europe: Russia, Italy, Spain, Ukraine, Finland, Poland, Romania; North America: Canada, America; South

    America: Mexico, Guatemala, Argentina, Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.
    Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the world markets.

    "Establish TOPER brand for the satisfaction of users" is our persistent pursuit.

    3. Products
    Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press,cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, three-foot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge, tubular centrifuge, vacuum

    disc type filter, various filter equipment, filter plate and filter cloth and so on.

    4. Application
    Our filter and separation equipments are widely used in mining, metallurgy, petroleum, chemical,

    environmental protection, electroplating, food, pharmacy, oil, biological, beverage, brewing, textiles,

    printing and dyeing, papermaking, inorganic salt, coal washing, sewage treatment, ceramics, leather such



    5. The service


    Pre-sales Service
    1. We provide our customer with a suitable filter machine in accordance with all kinds of essential information such as the material name, handling capacity, solids content, filtering temperature, and the PH value, etc.
    2. Based on customer requirements, we can offer a planar graph to help our clientele have a further understanding of equipment construction.
    3. In addition, we can provide customers with sewage treatment solutions, and also undertake turn-key projects.


    During-sales Service
    1. During the make-to-order manufacturing process, we can timely inform customers of the equipment production schedule. Also, we can send the related photos to our clients.
    2. Once the equipment is completed, we will send the photos of final products to our customers. Then, we inform customers that their cargos are ready to be delivered.


    After-sales Service
    1. After receiving an order, we will deliver an equipment installation drawing to our customer in advance. Then, our customer can timely arrange space required by the equipment.
    2. In accordance with customer requirements, we can dispatch engineers to assist customers in installing and testing the equipment. Also, our engineers offer training courses for operators.
    3. We pay a visit to our customers at regular intervals, so as to know the equipment operation. Based on different situations, we offer a suggestion to guarantee smooth operation of the equipment.
