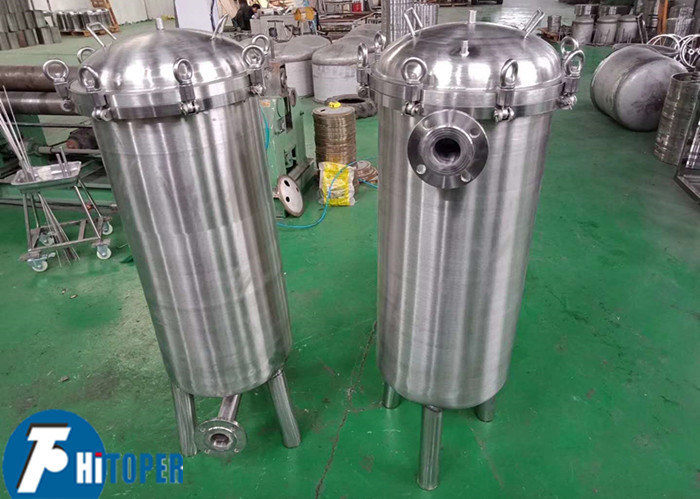

Industrial Vertical Fineness Filtration Small Size Bag Filter Housing.

Industrial Vertical Fineness Filtration Small Size Bag Filter Housing.

    • Industrial Vertical Fineness Filtration Small Size Bag Filter Housing.
    • Industrial Vertical Fineness Filtration Small Size Bag Filter Housing.
  • Industrial Vertical Fineness Filtration Small Size Bag Filter Housing.

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DL2P2S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 10 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 100 sets per month for this bag filter housing
    Contact Now
    Detailed Product Description
    Filter Area: 1m2 Max. Flow Rate: 70m3/h
    Working Pressure: 0.5Mpa Inlet And Outlet: DN50
    Material: SS304/SS316 Structure: Vertical Type
    Filter Medium: Filter Bag + Filtration Basket Surface Treatment: Internal Or External Mirror Polishing
    Feeding Method: Pump Or Manual Liquid Discharge Method: Flange Bottom Discharge
    Solid Discharge Method: Manual Upper Discharge
    High Light:

    stainless steel bag filter housing

    ,

    ss bag filter housing

    Industrial Vertical Fineness Filtration Small Size Bag Filter Housing

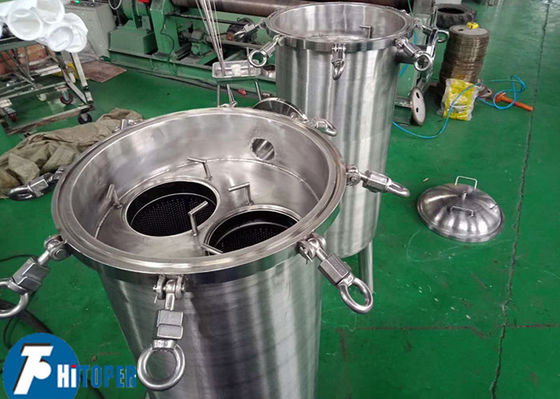

    Bag filter housing is a new filtration system, filter bag is supported by the metal basket inside filter, and the liquid flows into the inlet, filtered through the bag out from the outlet , impurities are kept in the bag, replacing the filter bag and then continue to use.





    Bag filter housing features:



    1. Bag filter housing is of large processing capacity, small size, large capacity dirt.

    2. Bag filter system based on the working principle and structure; replacing the filter bag is convenient, and filter is no necessary to clean, saving time and labor.

    3. Bag side leakage probability is small, powerfully guarantee filter quality.

    4. Filter bag can bear a greater work pressure, small pressure loss, low operation cost, energy saving effect.

    5. Filter precision is getting improved , now is reached 0.5μm

    6. Bag filter is widely used , flexible, diverse installation styles.





    Bag filter housing technical parameters:



    Model

    Filter area

    (m2)

    Max. flow rate

    (m³/h)

    Working pressure

    (MPa)

    Volume

    (L)

    Inlet and outlet

    connection style

    DL1P1S 0.25 20 0.5 8.0 Ф50
    DL1P2S 0.5 40 0.5 17.0 Ф50
    DL1P4S 0.20 18 0.5 3.8 Ф20



    1. Besides single bag filter housing, also we have multi bag filter housing to satisfy big capacity.

    2. Multi bag filter housing is for high flow filter. From 2 to 24 bags, complete specifications, inlet and outlet flange diameter of 3 to 18’’, the largest single flow is 90-1000m³/h.

    3. To provide fast open design, filter bag replacement is very convenient and also applies to occasion of who wants to use long time and then replace the bag .



    Model

    Number of

    bag size

    Quantity

    of bags

    Filter area

    (m2)

    Caliber of inlet

    and outlet (mm)

    Working p

    ressure (MPa)

    Max. flow

    velocity (m³/h)

    Viscosity=1

    DL-2P2S 2 2 1 φ50 0.5 70
    DL-3P2S 2 3 1.5 φ50 0.5 100
    DL-4P2S 2 4 2 φ100 0.5 150
    DL-5P2S 2 5 2.5 φ150 0.5 175
    DL-6P2S 2 6 3 φ200 0.5 210
    DL-7P2S 2 7 3.5 φ200 0.5 245
    DL-8P2S 2 8 4.0 φ250 0.5 280
    DL-10P2S 2 10 5.0 φ250 0.5 350
    DL-12P2S 2 12 6.0 φ300 0.5 420
    DL-14P2S 2 14 7.0 φ300 0.5 490
    DL-16P2S 2 16 8.0 φ300 0.5 560
    DL-18P2S 2 18 9.0 φ350 0.5 630
    DL-20P2S 2 20 10.0 φ350 0.5 700
    DL-22P2S 2 22 11.0 φ350 0.5 770
    DL-24P2S 2 24 12.0 φ350 0.5 840

    Industrial Vertical Fineness Filtration Small Size Bag Filter Housing.





    Packing and delivery :



    We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.





    More information about Toper



    1. About Toper
    Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment.

    2. Global service
    Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more countries and areas excluding China mainland.
    Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey,
    Uzbekistan and Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli,
    Palestinian, Oman, Bahrain, Iran; Europe: Russia, Italy, Spain, Ukraine, Finland, Poland,
    Romania; North America: Canada, America; South America: Mexico, Guatemala, Argentina,
    Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.


    Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the world markets. "Establish TOPER brand for the satisfaction of users" is our persistent pursuit.

    3. Products
    Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, threefoot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge,tubular centrifuge, vacuum disc type filter, various filter equipment, filter plate and filter cloth and so on.

    4. Application
    Our filter and separation equipments are widely used in mining, metallurgy, petroleum, chemical, environmental
    protection, electroplating, food, pharmacy, oil, biological, beverage, brewing, textiles, printing and dyeing, papermaking,inorganic salt, coal washing, sewage treatment, ceramics, leather such industries.
