|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||10-15 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||30 sets per month for this platform centrifuge|
|Drum Diameter:||800mm||Drum Volume:||100L|
|Drum Load Limit:||135kgs||Drum Rotate Speed:||1200r/min|
industrial scale centrifuge,
liquid solid separation centrifuge

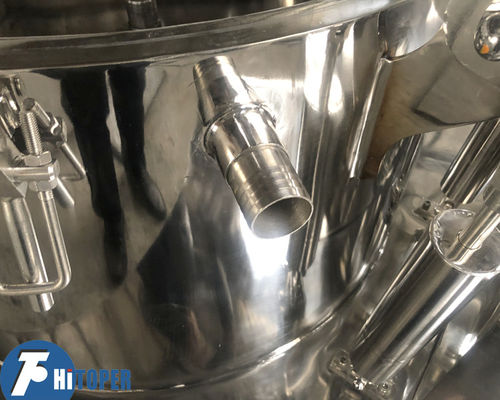

Two Phase Platform Base Centrifuge , Lab Scale Centrifuge With Anti - Explosive Motor
This platform centrifuge is mainly used for data acquisition and analysis of various types of research machinery, universities, corporate laboratories, pilot phase. By focusing on the analysis and comparison of the various stages of adaptation and separation of materials data, convenience and mass production in the pilot phase of the production and application selection.
The machine looks, compact and flexible, can be placed directly on the table to operate, with material contact parts can be used for production of various materials or spray, in order to meet the needs of the experiment. Its working principle is by accelerating the centrifugal force, so that the particle sedimentation rate significantly faster, and through the filter media, such as cloth and other separation work.
PS series Flat Direct filtration centrifuge's bowl is based parts,direct-coupled motor drives the bowl rotate at high speed to form a centrifugal force field.Suspension liquid flow into the bowl from the top of the feeding tube,under the action of centrifugal force,threw to the drum wall,then into the inter-layer between shell and bowl through the filter holes in the bowl.Next,threw into the liquid collection chamber at the bottom of machine,discharged by the drain pipe,and solid phase retained the bowl.
Name: The bowl(drum) of centrifuge
The bowl(drum) is the main parts of centrifuge.
There are many holes on the bowl(drum).The solid will leave at the filter bag,and the liquid will flow to the outlet at the bottom.
The rotating speed of PS450 is 0-2000rpm.
The user can adjust the speed by control cabinet.
Name: The small/big cover
The customer can choose small/big cover, we can design.
On the cover, it is feeding inlet,washing port,viewport,etc.
If the raw liquid is inflammable,such as ethyl alcohol,we can add nitrogen gas inlet for user. And it you need long distence control of explosive-motor, please tell us.
Other requirement,please inform us,we can design for you.
Design features of this platform centrifuge:
1. Structure designed to effectively eliminate a health corner, the structure transition is smooth, the surface has been polished, outside structure parts, fasteners, and drum are not stainless steel, shell clamshell, can centrifuge drum shell and mezzanine space for thorough cleaning.
2. Shell flip, set the feed pipe, wash pipe, mirrors, lighting hole. Automatic online cleaning system(sprinkler system), the centrifuge shell wall, inside and outside surface of the drum, set the liquid pool surface is not visible centrifuge parts cleaning Ensure the cleanliness requirements, meet the GMP standard.
3. Simple structure, easy operation and maintenance.
4. Versatility for a wide range. Both for the solid phase for the separation of granular suspensions can also be used for the separation of fibrous materials.
5. Inverter can be started, start a smooth, adjustable separation factor; non-contact power brake system. anti-static belt drive; body enclosed structure, seals silicone rubber of fluorine rubber, anti-explosion requirements for toxic and flammable and explosive applications.
6. Nitrogen protection system to ensure that the centrifuge chamber and the outside air.
7. Grain is not easy to break.
Application of this platform centrifuge:
1. Chemical Industry:gypsum,thiamin,Glauber's salt,ferric sulfate,boric acid,borax,dye,rubber
additive,and other chemical products.
2. Food industry:kitchen salt,sodium glutamate,food additive,chemical seasonings,sugar.
3. Pharmaceutical:Vitamin Extraction,biotic,traditional Chinese medicine and other various drugs.
4. Mine and Metallurgy:Copper,zinc,minerals,and metal refining.
5. Environmental Protection:with acid discharge,pure water sludge and sewage sludge,etc.
Technical parameters of this platform centrifuge:
|Dia.(mm)||Volum(L)||Load limit(kg)||Rotation speed(r/min)|
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
