| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | GF105 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 60 sets per month for this tubular centrifuge |
| Drum Diameter: | 105mm | Drum Volume: | 6L |
|---|---|---|---|
| Drum Rotate Speed: | 19000r/min | Separation Factor: | 21000 |
| Water Flow Capacity: | 1500kg/h | Power: | 2.2kw |
| Inner Dia.: | 105mm | Motor: | 380V,50hz Or As Require |
| Material: | Stainless Steel | Drum Height: | 730mm |
| High Light: | high speed centrifuge machine,tubular bowl centrifuge |
||

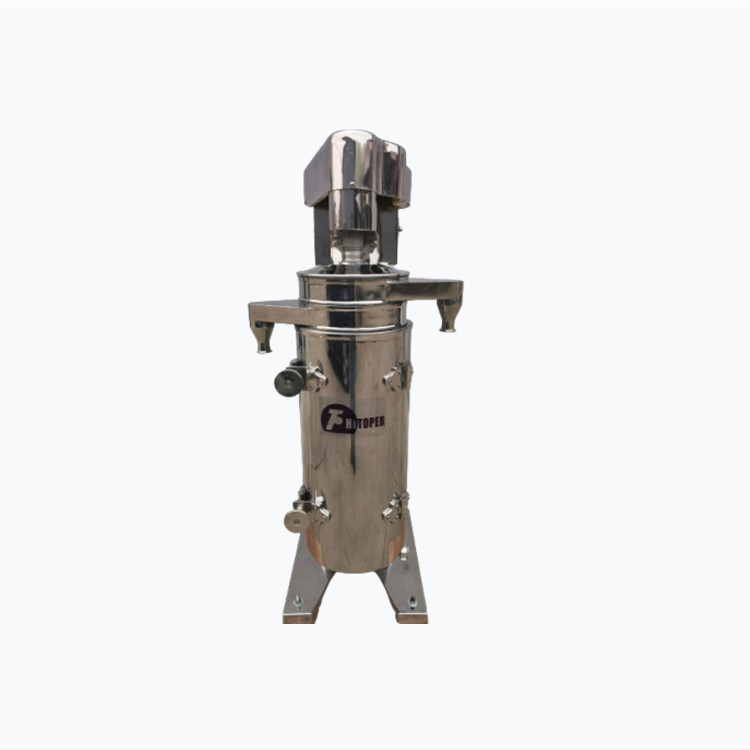

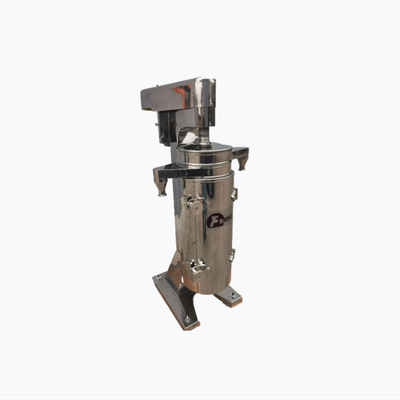

Lubricating Oil Tubular Centrifuge Separator Large Capacity For Wine Clarifying
This Tubular Centrifuge Separator is used for separating various liquids that are difficult for separation, especially adapt for liquid-liquid separation, liquid-liquid-solid separation, liquid-solid separation. It's widely used in pharmacy, healthy food, drinks and chemical industries, etc.
GF series tubular centrifuge: it is mainly used for various industrial suspension very difficulty to separate, especially suitable for liquid-liquid suspension with small specific gravity difference between solid phase and liquid phase, and liquid-liquid-solid separation with few impurities. liquid with larger Density deposit on the outer wall of the drum. liquid with smaller Density deposit on the inner wall of the drum. Both of them get to the upper part of the drum to discharge. solid particles deposit on the drum wall to be artificially discharged after downtime.
Working principle:
This centrifuge is a high-speed separator with strong separating capacity, as an intermittently operated centrifugal equipment, composed of the main body, driving unit, bowl, liquid collector tray, and feed liquid bearing seat. GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually discharged after the machine is shut down.
Technical parameters:
|
Model |
Drum | Nozzle diameter (mm) |
Productivity(water flow) (kg/h) |
Power |
Weight (kg) |
||||
|
Inner diameter |
Height |
Volume |
Rotary speed |
Separation factor | |||||
| GF45 | 45 | 280 | 0.4 | 28000 | 19800 | 2,3 | 100 | 0.55 | 90 |
| GF75 | 75 | 450 | 2.2 | 19000 | 15700 | 4,6 | 600 | 1.5 | 300 |
| GF105 | 105 | 730 | 6 | 16300 | 15620 | 6,8 | 1200 | 2.2 | 570 |
| GF125 | 125 | 730 | 7.4 | 15000 | 18000 | 5,8,9 | 1500 | 3.0 | 610 |
| GF150 | 142 | 730 | 10 | 14000 | 15700 | 8,10,12 | 2500 | 3.0 | 665 |
