Customizable Plate Quantity Cotton Cake Filter Press for Different Filtration Needs

Customizable Plate Quantity Cotton Cake Filter Press for Different Filtration Needs

    • Customizable Plate Quantity Cotton Cake Filter Press for Different Filtration Needs
    • Customizable Plate Quantity Cotton Cake Filter Press for Different Filtration Needs
  • Customizable Plate Quantity Cotton Cake Filter Press for Different Filtration Needs

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: 8m2

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: about 45 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 60 sets per month for this cotton cake filtre press
    Contact Now
    Detailed Product Description
    Features: Bottom Mobile Bracket Filter Plate Size: Diamter Of 500mm
    Filter Chamber Volume: 216L Filter Plate Number: 22pcs
    Filtrating Pressure: Less Than 2Mpa Motor Power: 1.1kw
    Max. Pressure Inner Frame: 3kg/cm2 Flow Rate: 87L/min
    Oil Steady Pressure: 12Mpa Filter Medium: Renewable Fiber Material
    Function: Solid-liquid Separation Application: Fermentation,enzymes,RNA Gelatin,food And Beverage
    Filter Plate Shape: Round Plate Material: Reinforced Polypropylene
    Filter Plate Color: White Voltage: 380V/220V /400-450V/Customized
    Conditon: New
    High Light:

    industrial filter press

    ,

    filter press machine

    PP Filter Plate Industrial Filter Press Equipment Mustard Oil Filtration Usage





    Cotton filter press can be repeated using recycled fiber material as filter media to remove traces of oil in the liquid material, mechanical impurities, suspended complexes and other impurities, so that filtered liquid clear and transparent.

    1. Round plate, 500mm, or 400mm

    2. Feeding type, corner one.

    3. Liquid flow type, close one.

    4. Material type, aluminum alloy or reinforced polypropylene.

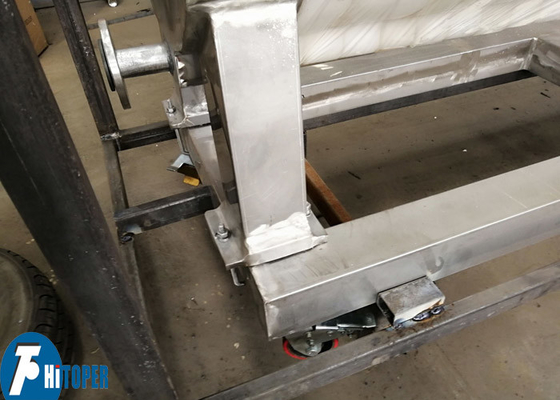

    5. WIth wheels, canbe movable.



    Cotton cake filter press our company manufactured belongs to plate and frame type filter press.It is suitable for filtering and purifying liquid .It is widely used in chemical industry,metallurgy,pharmaceutical ,food and other industries.This filter press has such features of large filter area ,convenient operation and maintenance.Filter plate and frame adopts round structure.It is better than square structure.The material is of aluminum alloy and reinforced polypropylene.And the quantity of frame can be increased or reduced ,the machine can be applied to different liquid filtration.

    It is used in fermentation ,enzymes,RNA gelatin,food and beverage ,and other high precision requirement industries.





    Technical data,



    Filter area

    (m2)

    Plate size

    (mm)

    Frame thickness

    (mm)

    Filter pressure

    (Mpa)

    Plate quantity

    (pcs)

    Max. pressure

    Inner frame

    (kg/cm2)

    Volume inside

    frame

    (L)

    Dimension

    L×W×H

    Flow(

    L/min)

    Motor power

    (kw)

    Motor speed

    (r/min)

    Steady

    pressure

    (Mpa)

    Max.

    displacement

    (mm)

    8 Ф500 50 ≤2 22 3 216

    2630×1150

    ×770

    87 1.1 1460 12

    350



    5 Ф400 50 ≤2 22 3 138

    2630×1050

    ×670

    55 1.1 1460 12 350







    Why choose us:



    1. Manufacture experience,

    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

    2. Technology capacity,

    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

    3. Our superiority,

    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

    4. Best after-sales,

    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.




    FILTER PRESS SERIES:


    Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.



    How to order filter press:


    1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
    2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
    3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
    4. Our company can supply non-standard model to meet your special demands.
