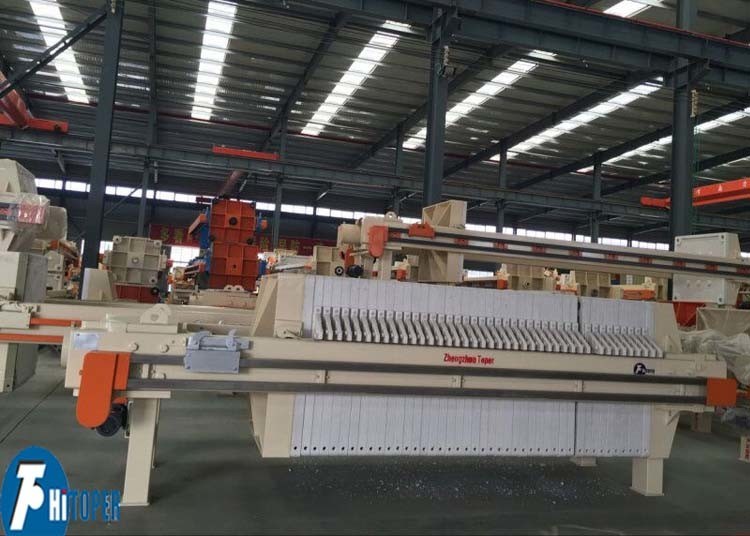

0.6Mpa Automatic Discharge Filter Press For Chemical / Medicine / Food Industry Purification,Dehydration,Concentration

0.6Mpa Automatic Discharge Filter Press For Chemical / Medicine / Food Industry Purification,Dehydration,Concentration

    • 0.6Mpa Automatic Discharge Filter Press For Chemical / Medicine / Food Industry Purification,Dehydration,Concentration
    • 0.6Mpa Automatic Discharge Filter Press For Chemical / Medicine / Food Industry Purification,Dehydration,Concentration
  • 0.6Mpa Automatic Discharge Filter Press For Chemical / Medicine / Food Industry Purification,Dehydration,Concentration

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XZ50/870-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 20-30 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 50 sets per month for this chamber filter press
    Contact Now
    Detailed Product Description
    Filter Area: 50m2 Filter Plate Size: 870*870mm
    Filter Chamber Volume: 748L Filter Number: 38pcs
    Filtrating Pressure: 0.6Mpa Motor Power: 4000w
    Cake Discharge: Automatically Voltage: 220/380/400/440 And So On As Your Need.
    Filter Plate Material: Reinforced Polypropylene Feeding Method: Pump Feeding
    Beam Materail: Carton Steel + Stainless Steel Certificate: CE
    Conditon: New
    High Light:

    dewatering filter press


    industrial filter press

    0.6Mpa Automatic Discharge Filter Press For Chemical / Medicine / Food Industry Purification,Dehydration,Concentration ​



    Hot usage application:


    1. Chemicals: dyes, pigments, alum white powder, manganese, caustic soda, soda ash, chlor-alkali salt mud, white carbon black, saponin, graphite, bleaching powder, Synaptic powder, phosphor, sodium hydrosulfite, potassium chlorate, potassium sulfate, ferrous sulfate, ferric hydroxide, water purification agent (aluminum sulfate, chloride, basic aluminum chloride) and so on.

    2. Medicine: Antibiotics (chlortetracycline, erythromycin, spiramycin, Jinggangmeisu, Midecamycin, tetracycline, berberine, oxytetracycline), calcium phytate, medicine inositol, growth derived sand, organic phosphorus, glucoamylase.

    3. Food: rice wine, white wine, fruit juice, soft drinks, beer, yeast, citric acid, vegetable protein, plant density sweetener, glucose, stevia, maltose, starch, rice flour, corn syrup, gum, carrageenan, MSG, spices, sauce liquid , oral, soy, seaweed.

    4. Refining: white oil, sesame oil, light oil, glycerin, machine oil, vegetable oil.

    5. Clay: kaolin, bentonite, activated clay, clay, electronic ceramics clay.

    6. Sewage treatment: a variety of liquid chemical waste water, sewage smelting, electroplating wastewater, sewage leather, printing and dyeing wastewater, sewage brewing, pharmaceutical waste water, sewage and other environmental particulates clarify new equipment purification process.


    With the common function of hydraulic closure & opening, add another new design---plate shifter device, when a cycle finish and cake formation. it will help to discharge the cake automatically.

    Together with other available automatic device for your choosing.

    1. Automatic cloth cleaning system

    2. Automatic vibration device


    Our company supplies various types of recessed plate and plate-frame mechanical filter press, hydraulic filter press, membrane filter press, quick open filter press, full-automatic filter press and filter press spare parts.


    1. Filter plate specification include: 320mm, 450mm, 630mm, 800mm, 870mm, 1000mm, 1250mm, 1500mm and 2000mm etc.

    2. Filtration area up to 2000m2

    3. Filter plate materials: cast iron, stainless steel, reinforced polypropylene, glass fiber polypropylene etc.

    4. Flow forms: open flow, close flow, washable, non-washable, middle feeding and corner feeding etc.

    5. Filter plate pressing modes: manual screw pressing, electric mechanic pressing and hydraulic cylinder pressing, Special filter press can be made on request.



    Structure and working principle:


    1. Filter press consists of frame, filter plate, pressing system (manual, mechanical or hydraulic) and electric control cabinet.

    2. Frame consists of base, pushing plate, tail plate and beam and frame supports the pressing device and filter plates.

    3. Filter plates are installed on the beam between tail plate and push plate, with filter cloth sandwiched in them.

    4. In operation, the pressing device (cylinder piston rod or screw) drives the push plate to press the filter plate and filter cloth between push plate and tail plate. Filter chamber are formed between pressed filter plates and materials get into the filter chambers through the feeding inlet of tail plate. Solid particles are remained in filter chambers forming into cakes, while liquid is discharged out of the machine through press cake and filter cloth. To wash the press cakes, washing water can be introduced through the washing inlet of the tail plate. In similar manner, drying the filter cakes with compressed air going into the washing inlet.

    5. Structure of plate-frame type and chamber type filter press is the same. Except the filtering part that consists of one plate, one frame and filter cloth, with filter chamber between plate and frame.

    6. Liquid stream of filter press can be divided into open stream and close stream. Open flow refers to that the filtrate is discharge directly from the outlet of filter plate; Close flow refers to that the filtrate is collected from various filter plate before being discharged out of the filtrate port.



    Our filter press technical parameters:



    Filter area


    Filter plate

    size (mm)

    Filter cake



    Filter chamber



    Filter plate






    Motor power





    Dimension (mm)


    XZ30/870-30U 30




    30 460 23 0.6 2.2 3046 3180×1200×1300
    XZ40/870-30U 40 595 30 3593 3570×1200×1300
    XZ50/870-30U 50 748 38 4057 4110×1200×1300
    XZ60/870-30U 60 902 46 4597 4550×1200×1300
    XZ70/870-30U 70 1056 54 5136 4990×1200×1300
    XZ80/870-30U 80 1210 62 5636 5430×1200×1300
    XZ50/1000-30U 50 1000×1000 752 28 0.6 4.0 4128 4040×1500×1400
    XZ60/1000-30U 60 914 34 4636 4460×1500×1400
    XZ70/1000-30U 70 1063 40 5143 4760×1500×1400
    XZ80/1000-30U 80 1219 46 5651 5120×1500×1400
    XZ100/1000-30U 100 1505 57 6628 5870×1500×1400
    XZ120/1000-30U 120 1816 69 7644 6500×1500×1400



    About our company:


    1. About TOPER
    Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment.
    2. Global service
    Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more countries and areas excluding China mainland.
    Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey, Uzbekistan and Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli, Palestinian, Oman, Bahrain, Iran; Europe: Russia, Italy, Spain, Ukraine, Finland, Poland, Romania; North America: Canada, America; South America: Mexico, Guatemala, Argentina, Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.
    Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the world markets. "Establish TOPER brand for the satisfaction of users" is our persistent pursuit.
    3. Products
    Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, three-foot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge, tubular centrifuge, vacuum disc type filter, various filter equipment, filter plate and filter cloth and so on.
    4. Application
    Our filter and separation equipments are widely used in mining, metallurgy, petroleum, chemical, environmental protection, electroplating, food, pharmacy, oil, biological, beverage, brewing, textiles, printing and dyeing, papermaking, inorganic salt, coal washing, sewage treatment, ceramics, leather such industries.
    5. Factory Capability
    Manufacture Experience: since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipments.
    6. Technology Capability, We join and make the standard of filter press industry.
    7. Our Superiority, we are one of the TOP 3 in the field of filter press of China.
    8. Factory Scale, More than 250,000 square meter land area and continue developing.


    0.6Mpa Automatic Discharge Filter Press For Chemical / Medicine / Food Industry Purification,Dehydration,Concentration
