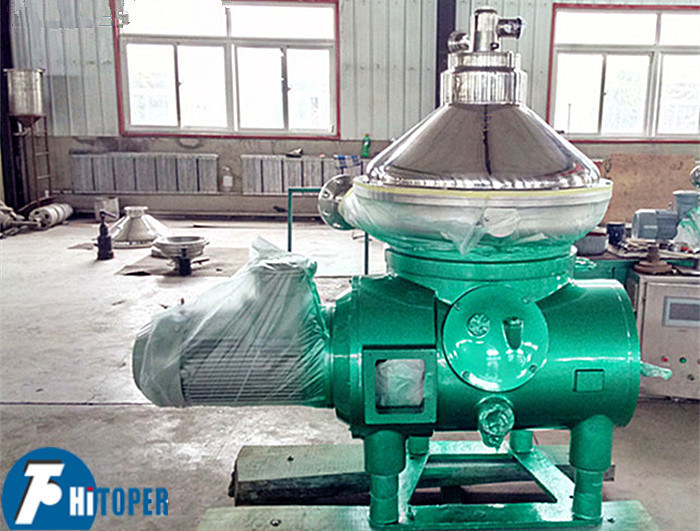

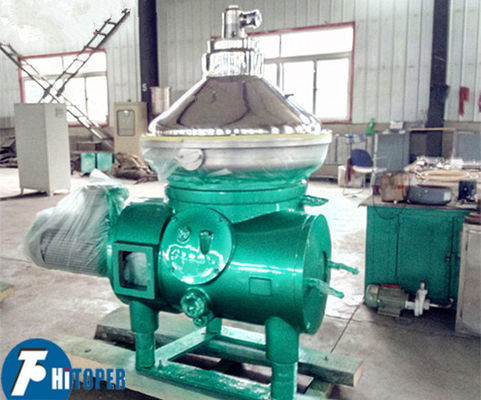

Continuous Separation Disc Centrifugal Separator for Chemical and Biological Products

Continuous Separation Disc Centrifugal Separator for Chemical and Biological Products

    • Continuous Separation Disc Centrifugal Separator for Chemical and Biological Products
    • Continuous Separation Disc Centrifugal Separator for Chemical and Biological Products
  • Continuous Separation Disc Centrifugal Separator for Chemical and Biological Products

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DHC500

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 40 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 30 sets per month for this disc centrifuge
    Contact Now
    Detailed Product Description
    Speed: 6600r/min Dram Diameter: 500mm
    Settlement Area: 35×10^7cm2 Input Capacity For Water: 10t/h
    Motor Power: 11kw Application: Pharmaceutical, Food, Chemical, Biological Products, Beverage Products
    Funtion: Solid-liquid,liquid-liuqid-solid Separation Material: Stainless Steel
    Feeding Method: Pump Feeding Or Manual Or Other Discharge Way: Automatic
    Highlight:

    disk stack centrifuge

    ,

    industrial centrifuge machine

    Automatic control continuous separation disc centrifugal separtor





    The disc centrifuge is a high efficiency, large output, advanced automation equipment.suitable for low solid content slurry, a smaller proportion of poor separation of immiscible liquids, pharmaceutical, food, chemical, biological products, beverage products and other necessary equipment industries.

    According to the separation mode can be divided into three-phase separator (liquid - liquid - solid) disc separatoand two-phase separation (liquid - solid) disc separa.

    While the disc type automatic slag separator in different ways based on, can be divided into manual type automatic slagging disc separator and fully PLC controlled automatic slagging disc separator



    According to the disc separation inside the slag film in different ways, disc separator can be divided into piston slag disc separator with nozzle slag separator, and can be selected according to the characteristics of slag material way.




    Features of the disc centrifuge separator :


    This disc centrifuge separation factor is high, strong separation ability, the model can realize manual slagging or PLC program control time automatic slag, reducing labor intensity, improve work efficiency, hydraulic coupling to replace the traditional friction plate clutch , On-site non-dust clean white health.
    Depending on the need to use automatic or manual operation. Can also achieve long-range self-control operation. Machine structure is simple, easy maintenance.


    This disc centrifuge work wrinciple.

    Thermal coupling through the drum motor drive to do high-speed rotation around the main axis, the liquid feed pipe from the top center of flow to the bottom of the drum, the disc surface diversion hole trend to drum wall, the centrifugal force field, compared with liquid weight of solid phase formation of sediment sink to the drum wall, light liquid pumps to the heart by the light liquid exit discharge.Heavy liquid within the cone along the disc tend to drum wall, then up to the heavy liquid flows through the heart pump discharges them from the heavy liquid, thus completing the heavy liquid and light liquid separation.

    Continuous Separation Disc Centrifugal Separator for Chemical and Biological ProductsContinuous Separation Disc Centrifugal Separator for Chemical and Biological Products



    Function of the disc centrifuge separator ---Separation function



    Fluid flow inside the drum:

    The mixed liquid is separated from the liquid inlet through the inlet pipe into the cloth tray and is reallocated into the disc group, and the solid particles and the water move along the conical surface of the disc toward the drum wall. Separation process, the separation of the heavy liquid through the lid and the disc between the cover through the flow through the ring into the heavy liquid concentric pump chamber by the heavy liquid heart pump through the heavy liquid export machine, the light along the disc to the center of the drum movement, and then through the liquid level ring into the pump chamber light from the light liquid heart pump through the light liquid outlet from the machine outside



    Water sealing of the separation treatment process :

    In order to prevent the mixed liquid from flowing through the disc edge through the heavy liquid passage, or to generate static electricity at the time of starting up, it is necessary to add sufficient water to the drum before feeding the mixed liquid to the drum. Water seal is completed, to add to the drum mixture, due to the hydraulic pressure balance,between the heavy and light liquid interface formation. The position of the interface can be adjusted by changing the gravity ring diameter.

    The specific gravity ring determines the position of the light and heavy liquid interface in the drum. When separating, the specific gravity ring is selected according to the density of the mixture.




    This disc centrifuge technical parameters.



    Item DHC300 DHC400 DHC500 DHC550 DHC730

    Drum inner diameter
    (mm)

    300 400 500 550 730
    Drum speed (r/min) 7300 7056 6600 6200 4500
    Settlement area (cm²) 17.2×10^7 28.5×10^7 35×10^7 67×10^7 90×10^7

    Input capacity for water
    (t/h)

    2 5 10 15 35
    Motor power (kw) 4.0 7.5 11 18.5 55




    Our service:

    1. We have professional person on line to provide you comprehensive.easy-understanding and detail information and technical data about the machine you interested;solve your confusions or questions about the machine
    2. Advise you the most suitable type of machine according to your requirement for your reference
    3. Arrange the schedule if you pay a visit to our factory.
    4. Send our technical engineer to your country for installation ,operation test ,slove questions and so on if required.

    Packing and delivery :

    We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.



    Continuous Separation Disc Centrifugal Separator for Chemical and Biological Products





    More informaiton about our corporation---Toper



    1. Product Experience: Since 1997,we have done a lot of innovation and improvement in the field of filter and separation equipment.

    2. Technology Capability: We join and make the standard of filter press industry in China.

    3. Our Speriority: We are one of top 3 in the field of filter press of China.

    4. Factory Scale: More than 250,000㎡ land area and continue developing.
