|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||about 20 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||500 sets per month for this chamber filter press|
|Filter Area:||160m2||Plate Size:||1250*1250mm|
|Chamber Volume:||2381L||Plate Number:||58pcs|
|Filter Pressure:||6bar||Cake Discharge:||Manual By Person One By One|
dewatering filter press,
wastewater filter press

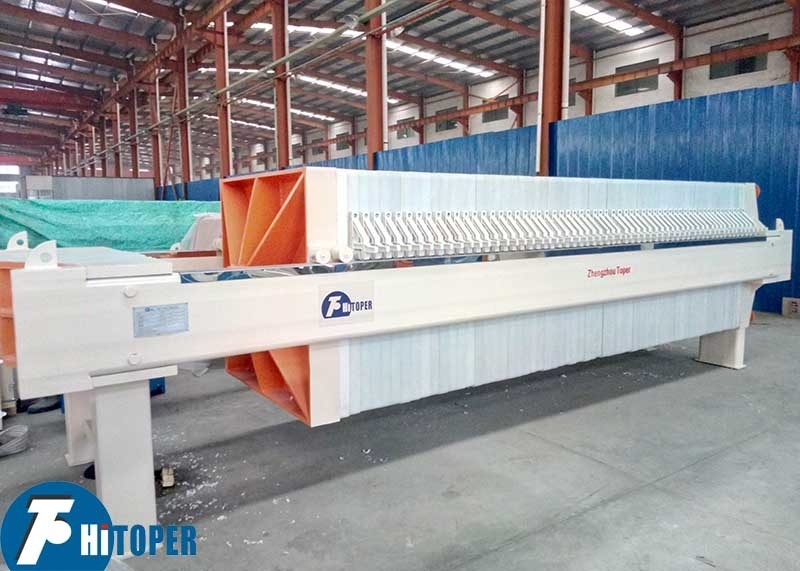

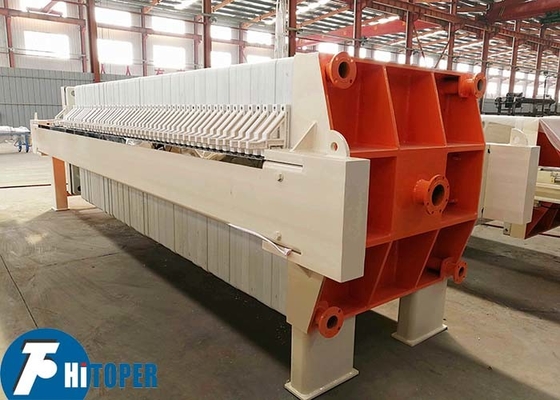

Semi-automatic chamber filter press for palm oil clarify, 1m2 to 1000m2 palm oil processing equipment
Our filter press can be divided into plate and frame type and chamber type. it is an intermittent working separation equipment, and it is used for solid-liquid separation of various oil slurry separation, like corn oil, rapeseed oil, peanut oil, sesame oil, corn oil, olive oil, camellia oil, palm oil, canola oil, sunflower oil, soybean oil, sesame oil, linseed oil (spoma oil), grape seed oil, walnut oil, Peony seed oil, etc. filter plates are pressed by pressing device and slurry is pumped into the filter chambers, solid particle and liquid are separated through filter cloths
Our company supplies various types of recessed plate and plate-frame mechanical filter press, hydraulic filter press, membrane filter press, quick open filter press, full-automatic filter press and filter press spare parts.
1. Filter plate specification include: 320mm, 450mm, 630mm, 800mm, 870mm, 1000mm, 1250mm, 1500mm and 2000mm etc.
2. Filtration area up to 2000m2
3. Filter plate materials: cast iron, stainless steel, reinforced polypropylene, glass fiber polypropylene etc.
4. Flow forms: open flow, close flow, washable, non-washable, middle feeding and corner feeding etc.
5. Filter plate pressing modes: manual screw pressing, electric mechanic pressing and hydraulic cylinder pressing, Special filter press can be made on request.
Structure and working principle:
1. Filter press consists of frame, filter plate, pressing system (manual, mechanical or hydraulic) and electric control cabinet.
2. Frame consists of base, pushing plate, tail plate and beam and frame supports the pressing device and filter plates.
3. Filter plates are installed on the beam between tail plate and push plate, with filter cloth sandwiched in them.
4. In operation, the pressing device (cylinder piston rod or screw) drives the push plate to press the filter plate and filter cloth between push plate and tail plate. Filter chamber are formed between pressed filter plates and materials get into the filter chambers through the feeding inlet of tail plate. Solid particles are remained in filter chambers forming into cakes, while liquid is discharged out of the machine through press cake and filter cloth. To wash the press cakes, washing water can be introduced through the washing inlet of the tail plate. In similar manner, drying the filter cakes with compressed air going into the washing inlet.
5. Structure of plate-frame type and chamber type filter press is the same. Except the filtering part that consists of one plate, one frame and filter cloth, with filter chamber between plate and frame.
6. Liquid stream of filter press can be divided into open stream and close stream. Open flow refers to that the filtrate is discharge directly from the outlet of filter plate; Close flow refers to that the filtrate is collected from various filter plate before being discharged out of the filtrate port.
|Filter plate size (mm)||
Filter cake thickness
Filter chamber volume
Filter plate number
