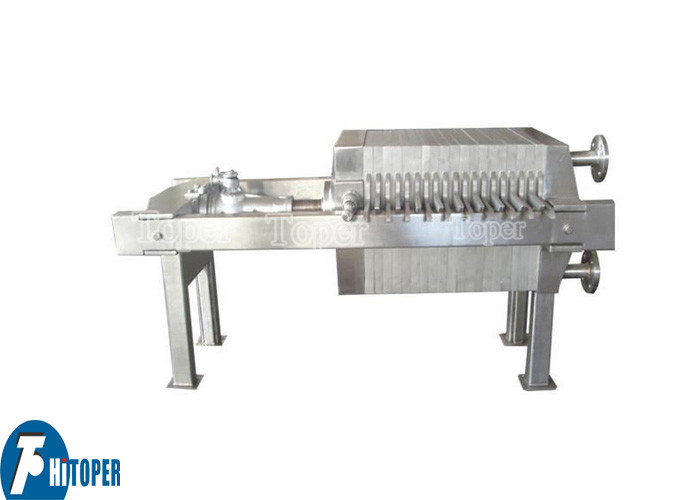

Stainless Steel Filter Press with Plate Size of 600x600mm for Precise Filtration Needs

Stainless Steel Filter Press with Plate Size of 600x600mm for Precise Filtration Needs

    • Stainless Steel Filter Press with Plate Size of 600x600mm for Precise Filtration Needs
    • Stainless Steel Filter Press with Plate Size of 600x600mm for Precise Filtration Needs
  • Stainless Steel Filter Press with Plate Size of 600x600mm for Precise Filtration Needs

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: TBSJL400-9.5

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 30-40 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 20 sets per month for this stainless steel filter press
    Contact Now
    Detailed Product Description
    Filter Area: 9.5m2 Filter Plate Size: 450*450mm
    Filter Plate And Number Number: 71pcs Filtrating Pressure: 0.3Mpa
    Motor Power: 2.2kw Material: SS304, SS316L.
    High Light:

    filter press machine

    ,

    filter press equipment

    Food Grade Stainless Steel Filter Press For Cooking Oil / Honey Filtration





    It is suitable for various industries: liquid medicine, liquor, beverage, juice, syrup, vinegar, oils, fine chemicals, electroplating etc.





    Specificeation of this stainless steel filter press:

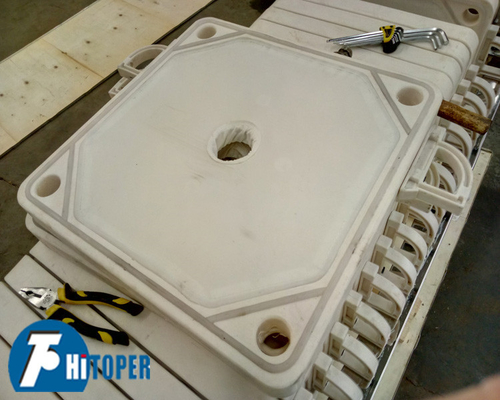

    1. Material: structure-SS304, plate-SS304, SS316L or PP.

    2. Seal material: white silicone rubber, pressure, <0.4Mpa, temperature<120 celsius.

    3. Main dimension: plate thickness, 13mm, individual chamber volume, 4.8L.

    4. Pressing method: Screw/manual hydraulic, others like manual jack, automatic hudraulic system, etc.

    5. Filter media: various filter cloth, filter paper, filter mamebrane, etc.

    6. Filter precision: from 200mesh to 0.22um.





    Technical data of this stainless steel filter press,



    Model

    Filter area

    (m2)

    No. of plate

    (pcs)

    Reference flow (T/h)

    Plate size

    (mm)

    Dimension

    (mm)

    TBSJL400-2 2 15 1-2 400X400 1250X660X1300
    TBSJL400-3 3 21 1-3 400X400 1350X660X1300
    TBSJL400-4 4 31 3-4 400X400 1550X660X1300
    TBSJL400-6 6 45 4-6 400X400 1750X660X1300
    TBSJL400-8.5 8.5 61 6-8 400X400 2100X660X1300
    TBSJL400-9.5 9.5 71 8-10 400X400 2300X660X1300
    TBSJL600-14 14 41 10-13 600X600 1750X870X1350
    TBSJL600-21 21 61 15-20 600X600 2100X870X1350
    TBSJL600-24 24 71 20-25 600X600 2250X870X1350
    TBSJL600-35 35 101 25-30 600X600 2800X870X1350





    All of our products:



    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press

    15. SS type three-foot upper discharge centrifuge

    16. SD type three-foot and filter bag hoist discharge centrifuge

    17. PD type filter bag hoist discharge centrifuge

    18. Centrifuge of up discharge, three foot, clean series SSB, SB

    19. SX type manual top discharge centrifuge

    20. PS type manual top discharge centrifuge

    21. SGZ type automatic scraper bottom discharge centrifuge

    22. PGZ type scarper bottom discharge centrifuge

    23. LW series decanter centrifuge

    24. Tubular centrifuge

    25. Multi-layer stainless steel frame filter

    26. Bag filter

    27. Diatomite filter

    28. Filter late

    29. Filter cloth

    30. Vacuum disc filter



    Packaging & Shipping


    Reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.


    Our Services


    1). We have professional person on line to advise you the most suitable type of machie according to your requirement.
    2). Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
    3). Arrange the schedule if you pay a visit to our factory
    4). Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.



    Company Information


    1. Manufacture experience,
    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 10 days(if no stock).
    2. Technology capacity,
    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
    3. Our superiority,
    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.



    Best after-sales,


    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
    Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.

    Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other.

    Zhengzhou Toper isspecialized in design,manufacture and sales of various filtration equipment,as well as comprehensive filtration solutions and projects. Zhengzhou Toper is the leading supplier of industrial eqipment in China,and also the professional export and service provider of fitler and separation equipment.Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, plate centrifuge,disc centrifuge,decanter centrifuge and tubular centrifuge etc.
    Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.. And I hope to establish a long-term relationship with you.
    Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
    We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.




    FILTER PRESS SERIES:


    Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.


    How to order filter press:


    1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
    2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
    3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
    4. Our company can supply non-standard model to meet your special demands.



    Stainless Steel Filter Press with Plate Size of 600x600mm for Precise Filtration Needs
