PP Plate Chamber Filter Press For Polished Terrazzo Tiles Wastewater Treatment

PP Plate Chamber Filter Press For Polished Terrazzo Tiles Wastewater Treatment

    • PP Plate Chamber Filter Press For Polished Terrazzo Tiles Wastewater Treatment
    • PP Plate Chamber Filter Press For Polished Terrazzo Tiles Wastewater Treatment
    • PP Plate Chamber Filter Press For Polished Terrazzo Tiles Wastewater Treatment
  • PP Plate Chamber Filter Press For Polished Terrazzo Tiles Wastewater Treatment

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XZ40/870-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 20-30 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 50 sets per month for this chamber filter press
    Contact Now
    Detailed Product Description
    Filter Area: 40m2 Filter Plate Size: 870*870mm
    Filter Chamber Volume: 595L Filter Number: 30pcs
    Filtrating Pressure: 0.6Mpa Motor Power: 4000w
    Cake Discharge: Automatically Voltage: Customized
    High Light:

    industrial filter press


    wastewater filter press

    PP Plate Chamber Filter Press For Polished Terrazzo Tiles Wastewater Treatment



    Hot usage of this chamber filter press:


    1. Chemicals

    dyes, pigments, alum white powder, manganese, caustic soda, soda ash, chloralkali

    salt mud, white carbon black, saponin, graphite, bleaching powder,

    Synaptic powder, phosphor, sodium hydrosulfite, potassium chlorate,

    potassium sulfate, ferrous sulfate, ferric hydroxide,

    water purification agent (aluminum sulfate, chloride,

    basic aluminum chloride) and so on.

    2. Medicine

    Antibiotics (chlortetracycline, erythromycin, spiramycin, Jinggangmeisu,

    Midecamycin, tetracycline, berberine, oxytetracycline),

    calcium phytate, medicine inositol, growth derived sand,

    organic phosphorus, glucoamylase.

    3. Food

    rice wine, white wine, fruit juice, soft drinks, beer, yeast, citric acid,

    vegetable protein, plant density sweetener, glucose, stevia,

    maltose, starch, rice flour, corn syrup, gum, carrageenan, MSG,

    spices, sauce liquid , oral, soy, seaweed.

    4. Refining white oil, sesame oil, light oil, glycerin, machine oil, vegetable oil.
    5. Clay kaolin, bentonite, activated clay, clay, electronic ceramics clay.
    6. Wastewater treatment

    a variety of liquid chemical waste water, sewage smelting, electroplating

    wastewater, sewage leather, printing and dyeing wastewater,

    sewage brewing, pharmaceutical waste water, sewage and

    other environmental particulates clarify new equipment purification process.

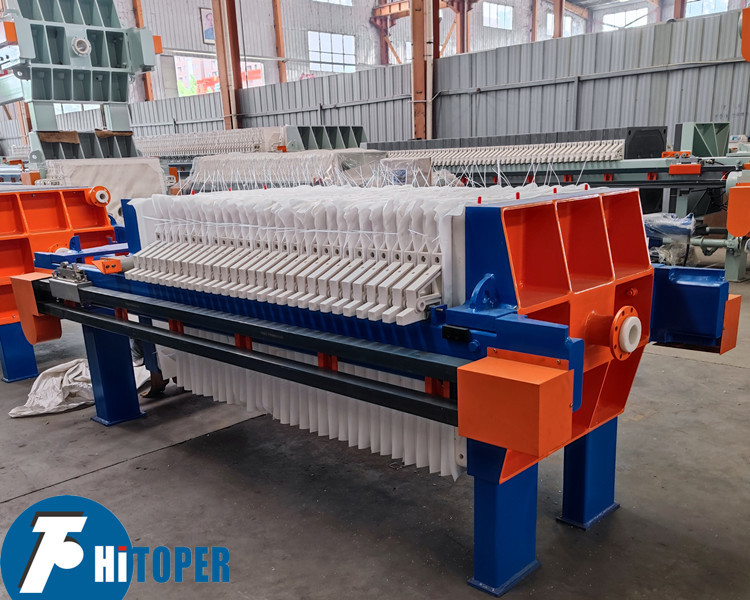

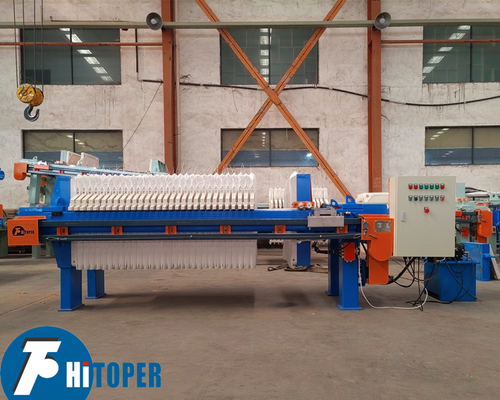

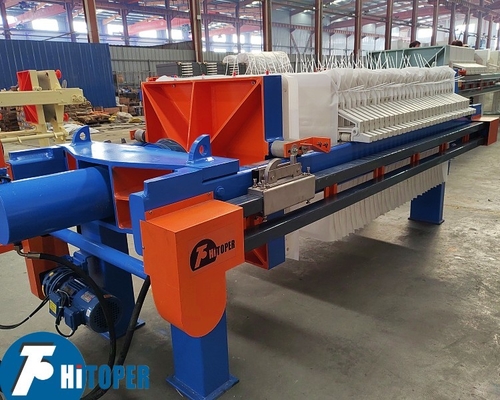

    This filter press with center feeding. It consists of beam, filter plate, filter cloths, hydraulic unit and electric control cabinet.

    1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.

    2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.

    3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.

    4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection

    5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.



    Operation process includes the following:


    1. The hydraulic unit drive the head plate to press the middle plates and filter cloth between head plate and tail plate. And chambers form between every two plates.

    2. The pump will deliver the mud into the chambers. Solids retainled in the chamber to be cake, and liquid flow out. Until the cakes is full. Then pump stops.

    3. With about 10 minutes pressure holding. When you see there is no liquid flow it, the squeezing process finishs.

    4. The plate shifter device will help to pull the plates one by one, and cake will discharge automatically.



    Our filter press technical parameters:



    Filter area


    Filter plate size (mm)

    Filter cake thickness


    Filter chamber volume


    Filter plate number


    Filtrating pressure


    Motor power





    Dimension (mm)


    XZ30/870-30U 30




    30 460 23 0.6 2.2 3046 3180×1200×1300
    XZ40/870-30U 40 595 30 3593 3570×1200×1300
    XZ50/870-30U 50 748 38 4057 4110×1200×1300
    XZ60/870-30U 60 902 46 4597 4550×1200×1300
    XZ70/870-30U 70 1056 54 5136 4990×1200×1300
    XZ80/870-30U 80 1210 62 5636 5430×1200×1300
    XZ50/1000-30U 50 1000×1000 752 28 0.6 4.0 4128 4040×1500×1400
    XZ60/1000-30U 60 914 34 4636 4460×1500×1400
    XZ70/1000-30U 70 1063 40 5143 4760×1500×1400
    XZ80/1000-30U 80 1219 46 5651 5120×1500×1400
    XZ100/1000-30U 100 1505 57 6628 5870×1500×1400
    XZ120/1000-30U 120 1816 69 7644 6500×1500×1400



    About our company:


    Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment. Also, we focus on full service for filtering project from design to after-sales service and fast supply of spare parts.

    Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more countries and areas excluding China mainland. Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey, Uzbekistan and Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli, Palestinian, Oman, Bahrain, Iran; Europe: Russia, Italy, Spain, Ukraine, Finland, Poland, Romania; North America: Canada, America; South America: Mexico, Guatemala, Argentina, Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.

    Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt filter press, thickening and dewatering belt filter press, three-foot centrifuge, flat panel centrifuge, decanter centrifuge, tubular centrifuge, vacuum disc filter, various filter equipment, filter plate and filter cloth and so on.


    If any need write to us freely!
