200m2 Quick Cake Discharge Automatic Chamber Filter Press for Sand Washing Wastewater Treatment

200m2 Quick Cake Discharge Automatic Chamber Filter Press for Sand Washing Wastewater Treatment

Sand washing filter press is widely used in the washing of materials in sandstone, mining, building materials, transportation, chemical, water conservancy and hydropower, concrete mixing stations and other industries. Our sand washing filter press products mainly include sand washing membrane filter press and sand washing box filter press. The treated mud can be used up to standard, and the filtered sludge is directly transported to brick factory building bricks.

Washing sand automatic pull plate chamber filter press can increase the replacement of the manipulator on the basis of the automatic pull plate filter press according to the customer's requirements, lengthen the oil cylinder, increase the interval, pull off multiple filter plates at one time. Suitable for easy dehydration , high-frequency work industry materials, more prominent features, compact structure, stable performance, high efficiency and low operating costs. Pulling board efficiency is increased by 3-6 times, and there are significant advantages for equipment with a large number of filter plates and high operating frequency.

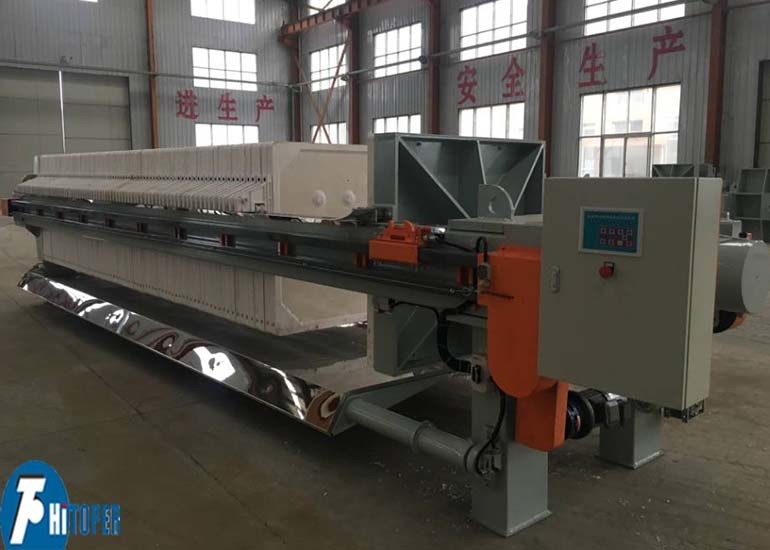

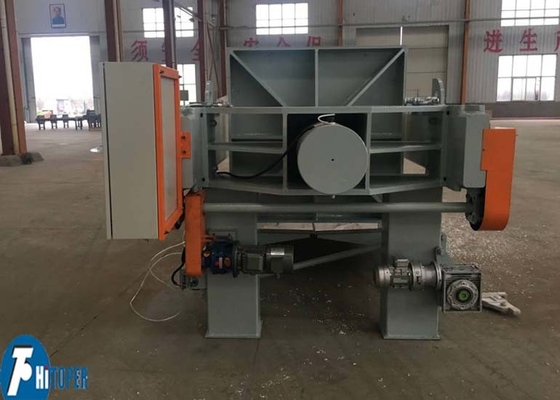

This filter press with center feeding. It consists of beam, filter plate, filter cloths, hydraulic unit and electric control cabinet.

1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.

2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.

3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.

4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection

5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.

Operation process includes the following,

1. The hydraulic unit drive the head plate to press the middle plates and filter cloth between head plate and tail plate. And chambers form between every two plates.

2. The pump will deliver the mud into the chambers. Solids retainled in the chamber to be cake, and liquid flow out. Until the cakes is full. Then pump stops.

3. With about 10 minutes pressure holding. When you see there is no liquid flow it, the squeezing process finishs.

4. The plate shifter device will help to pull the plates one by one, and cake will discharge automatically.

Our filter press technical parameters.

About our Zhengzhou Toper Industrial Equipment Co., Ltd.

Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment. Also, we focus on full service for filtering project from design to after-sales service and fast supply of spare parts.

Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more countries and areas excluding China mainland. Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey, Uzbekistan and Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli, Palestinian, Oman, Bahrain, Iran; Europe: Russia, Italy, Spain, Ukraine, Finland, Poland, Romania; North America: Canada, America; South America: Mexico, Guatemala, Argentina, Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.

Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt filter press, thickening and dewatering belt filter press, three-foot centrifuge, flat panel centrifuge, decanter centrifuge, tubular centrifuge, vacuum disc filter, various filter equipment, filter plate and filter cloth and so on.

If any need write to us freely!
