40m2 Automatic Chamber Filter Press for Coal Washing Wastewater Treatment 870x870mm Plate Filtration Machine

40m2 Automatic Chamber Filter Press for Coal Washing Wastewater Treatment 870x870mm Plate Filtration Machine

Washing coal means that after being mechanically processed by the coal washing plant, the ash and sulfur are reduced, and some impurities are removed, which is suitable for high-quality coal for special purposes.By washing coal, improving coal quality and reducing coal-fired pollutant emissions, coal transportation costs can be reduced and coal utilization rate can be improved.
Water is used in most coal washing processes, resulting in a large amount of coal washing wastewater, which is the wastewater discharged during wet coal washing.

Our coal washing filter press has a production history of more than 40 years, and has accumulated rich experience in production and has strong technical force. The product is complete with complete specifications, reliable quality and sales network throughout the country. The quality of products and services has been well received by users.

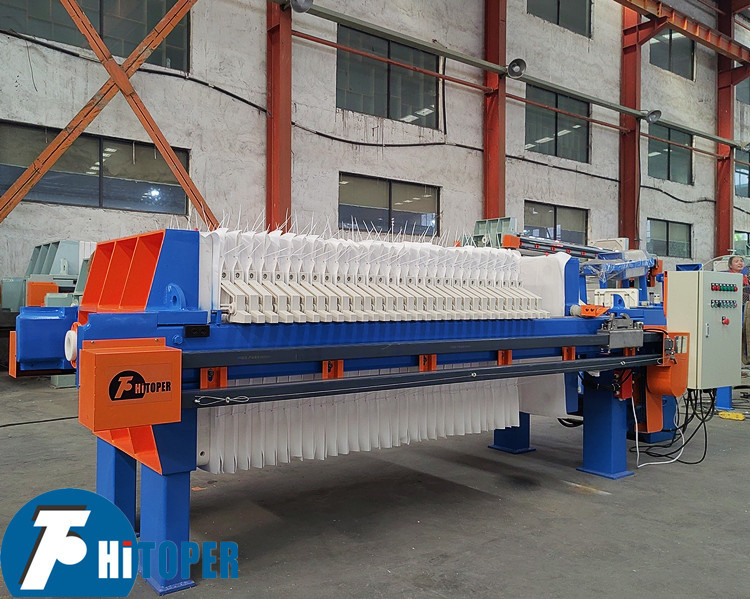

The structure of a filter press consists of three main parts:

01. Frame:
The frame is the foundation of the filter press. It has thrust plates and a compression head at each end, connected by beams on either side.

The beams support the filter plates, filter frame, and compression plate.

1. Thrust Plate: This connects to the support, anchoring one end of the filter press to the foundation. In a chamber filter press, the thrust plate

has a feed port in the center and four additional holes at the corners. The top two holes are for the inlet of the wash liquid or compressed gas, while the bottom two serve as the outlet (or filtrate outlet in a underflow configuration).

2. Compression Plate: This holds the filter plates and filter frame in place. Rollers on either side support the compression plate as it rolls along

the beam's tracks.

3. Beam: This is a load-bearing component. Depending on the corrosion protection requirements of the operating environment, it can be coated with rigid polyvinyl chloride, polypropylene, stainless steel, or a new type of anti-corrosion coating.

02. Hydraulic Compress Mechanism:
The hydraulic clamping mechanism consists of a hydraulic station, cylinder, piston, piston rod, and a Havlan card connecting the piston rod to the clamping plate.

03.Filtering Mechanism:

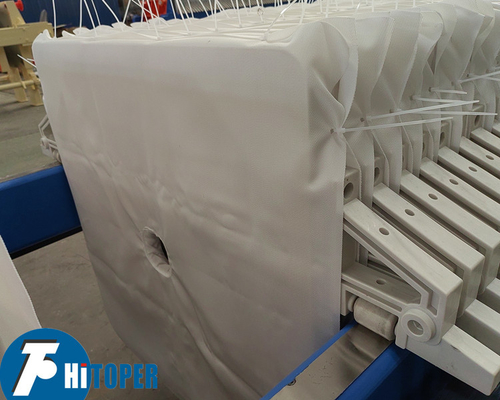

The filtering mechanism consists of filter plates and filter cloth, with both sides of the filter plates covered with filter cloth.
The material enters the filter chambers through the material holes on the thrust plate. Solid particles, whose particle size is larger than the pore size of the filter medium (filter cloth), are retained in the filter chambers. The filtrate flows out through the outlet holes below the filter plates.

Toper filter press technical parameters.

About our Zhengzhou Toper Industrial Equipment Co., Ltd.

Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment. Also, we focus on full service for filtering project from design to after-sales service and fast supply of spare parts.

Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more countries and areas excluding China mainland. Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey, Uzbekistan and Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli, Palestinian, Oman, Bahrain, Iran; Europe: Russia, Italy, Spain, Ukraine, Finland, Poland, Romania; North America: Canada, America; South America: Mexico, Guatemala, Argentina, Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.

Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt filter press, thickening and dewatering belt filter press, three-foot centrifuge, flat panel centrifuge, decanter centrifuge, tubular centrifuge, vacuum disc filter, various filter equipment, filter plate and filter cloth and so on.

If any need write to us freely!
