| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | BY30/630-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 30-40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 20 sets per month for this cast iron filter press |
| Filter Area: | 30m2 | Filter Plate Size: | 630*630mm |
|---|---|---|---|
| Filter Chamber Volume: | 452L | Filter Plate And Number Number: | 75pcs |
| Filtrating Pressure: | 0.6Mpa | Motor Power: | 2.2kw |
| Main Feature: | To Bear High Temperature To Be 300C. | Construction: | Cast Iron. |
| Structure: | Plate-frame Type | Function: | Solid-liquid Separation |
| Conditon: | New | Filter Medium: | Filter Cloth |
| Cake Discharge Type: | Manual Discahrge | ||
| High Light: | filter press for sewage treatment plant,filter press unit |
||

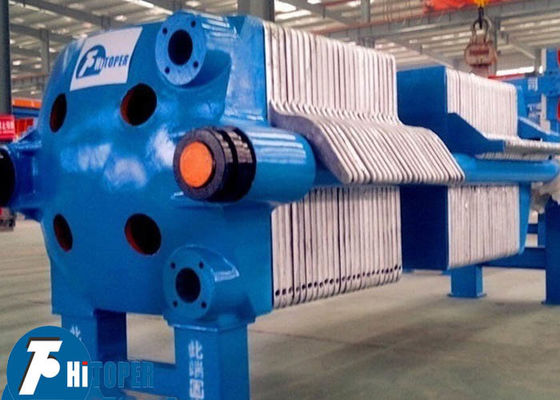

Semi-automatic Cast Iron Filter Press Plate And Frame Type For Solid Liquid Separation
Our Zhengzhou Toper company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. With high quality and best sale-service, having received a good reputation.
Cast iron filter press is made by high quality cast iron or ductile iron precision casting, with characteristics of high strength to withstand large filtration pressure, high temperature, filtration speed, low cake moisture, unloading, and long service life.
Applied to chemical industry, like gypsum, thiamine, Glauber's salt, ferric sulfate, copper sulfate, nickel sulfate, potassium sulfide, acetic acid, borax, rubber additives, oils, various resins, etc..
Features of this cast iron filter press,
1. Widely be used for dewatering high temperature materials.

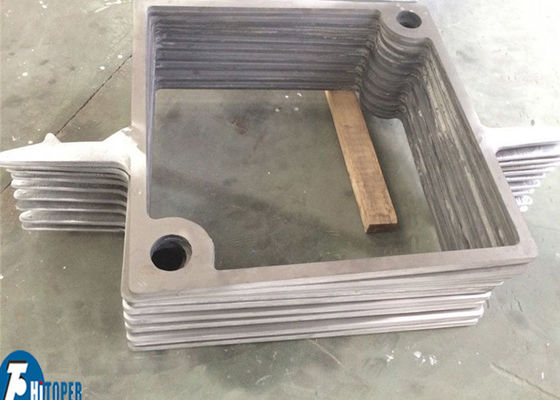

2. Plate and frame of filter press, the heart of filter press
3. Material of plate and frame: cast iron
4. Max temperature: up to 300 degree celsius
5. Resistance to high temperature and high pressure.
6. Long use life.
Technical data of this cast iron filter press,
|
Type |
Filter area (m2) |
Filter plate size (mm) | Cake thickness (mm) | Chamber volume (L) | Plate number (pcs) | Frame number (pcs) | Filtrating pressure (Mpa) | Weight (kg) |
Dimensions(mm) L×W×H |
| BQ1/320-25 | 1 | 320 x 320 | 25 | 13 | 4 | 5 | 1.0 | 380 | 1150×760×650 |
| BQ2/320-25 | 2 | 25 | 9 | 10 | 500 | 1390×760×650 | |||
| BQ3/320-25 | 3 | 38 | 14 | 15 | 620 | 1750×760×650 | |||
| BQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 10 | 0.8 | 1060 | 1780×760×650 |
| BQ6/450-25 | 6 | 76 | 14 | 15 | 1160 | 2055×870×880 | |||
| BQ8/450-25 | 8 | 102 | 19 | 20 | 1360 | 235×870×880 | |||
| BQ12/450-25 | 12 | 152 | 29 | 30 | 1530 | 2785×870×880 | |||
| BQ16/450-25 | 16 | 203 | 39 | 40 | 1760 | 3305×870×880 | |||
| XQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 1.0 | 960 | 1900×870×880 | |
| XQ6/450-25 | 6 | 76 | 14 | 1140 | 2030×870×880 | ||||
| XQ8/450-25 | 8 | 102 | 19 | 1460 | 2280×870×880 | ||||
| XQ12/450-25 | 12 | 152 | 29 | 1960 | 2780×870×880 | ||||
| XQ16/450-25 | 16 | 203 | 39 | 2460 | 3280×870×880 | ||||
| BQ20/630-25 | 20 | 630 x630 | 25 | 298 | 24 | 25 | 0.6 | 3300 | 2750×1150×1100 |
| BQ30/630-25 | 30 | 452 | 37 | 38 | 4500 | 3220×1150×1100 | |||
| BQ40/630-25 | 40 | 295 | 49 | 50 | 5600 | 3870×1150×1100 | |||
| BY20/630-25 | 20 | 298 | 24 | 25 | 3700 | 2960×1150×1100 | |||
| BY30/630-25 | 30 | 452 | 37 | 38 | 5000 | 3610×1150×1100 | |||
| BY40/630-25 | 40 | 595 | 49 | 50 | 6100 | 4210×1150×1100 | |||
| XQ20/630-25 | 20 | 25 | 248 | 24 | 0.8 | 3400 | 2600×1100×1100 | ||
| XQ30/630-25 | 30 | 377 | 37 | 4700 | 3250×1100×1100 | ||||
| XQ40/630-25 | 40 | 496 | 49 | 5900 | 3900×1100×1100 | ||||
| XY20/630-25 | 20 | 248 | 24 | 3800 | 2950×1100×1100 | ||||
| XY30/630-25 | 30 | 377 | 37 | 5200 | 3580×1100×1100 | ||||
| XY40/630-25 | 40 | 496 | 49 | 6400 | 4180×1100×1100 |
Our Services
Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.
FILTER PRESS SERIES:
Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.
How to order filter press:
1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
4. Our company can supply non-standard model to meet your special demands.
