| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XGZ50/870-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 20-30 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 500 sets per month for this membrane filter press |
| Filtration Area: | 50m2 | Chamber And Membrane Plate Dimension: | 870*870mm |
|---|---|---|---|
| Filtration Chamber Volume: | 676L | Chamber And Membrane All Number: | 37pcs |
| Filtrating Pressure: | 0.6Mpa | Motor Power: | 4.0kw |
| Discharge: | Automatic | Voltage: | Customized |
| Function: | Solid-liquid Separation | Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. |
| Filter Medium: | Filter Cloth | Filter Cake Discharge Type: | Manual Discharge |
| Liquid Discharge Type: | Open Flow Or Close Flow | Feeding Type: | Center Feeding |
| Conditon: | New | ||
| High Light: | sludge filter press,filter press machine |
||

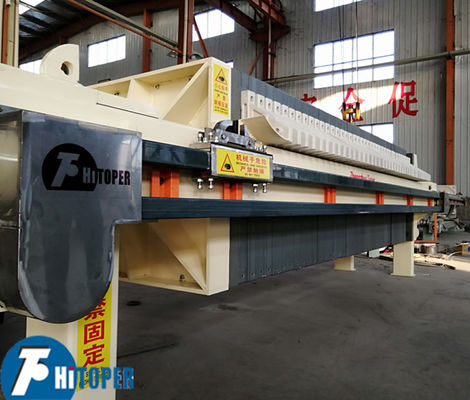

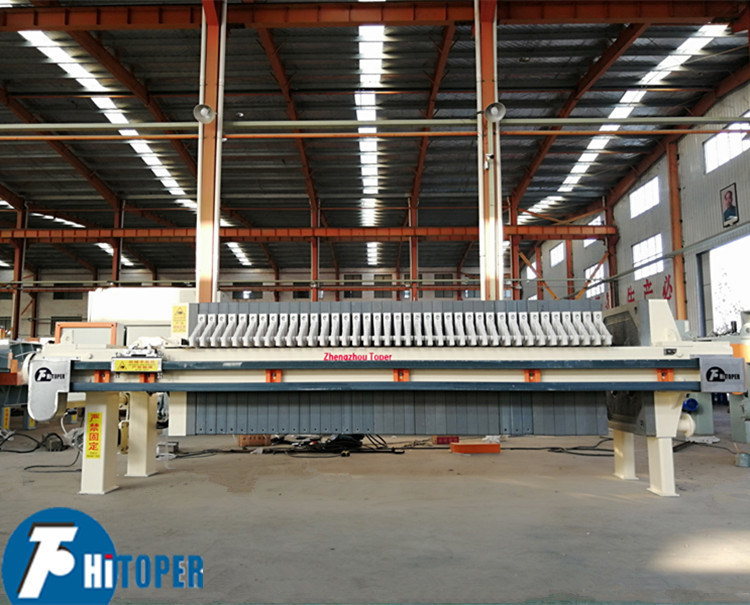

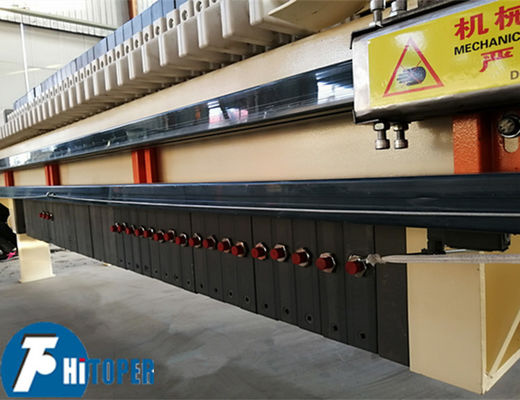

Sewage Treatment Automatic Membrane Filter Press For Mining / Brewing / Textiles Industry
Our company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. And membrance filter press has received a very good reputation. and they are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.
Membrane filter press consists of the membrane plate and the chamber plate, when works, with the help of the feeding pump, the solid and liquid are separated by the filter cloth, after the cake forms, and then air or water goes into the membrane plate, the second squeezing happens by the membrane plates swell up, more liquid will flow out to give you a lower cake mositure. membrane filter press is suitable for the filtration of viscous material and user who has higher requirements about the moisture content of filter cake.
This membrane filter press is hot sale in the below industry:
Effluent treatment plants: Textile, Paper, Leather, Jute, Sewages, Industrial and municipal waste water
Ceramics: Clay, Porcelain, Fine earth, Marble and Granite
Metallurgy: , Electroplating and Electro Polishing, Steel Mill Waste, Nickel, Copper, Zinc Lead, Silver
Pharma Industries: Antibiotic, Syrup, Intermediates and Bulk Drugs
Chemical Industries: Basic Chemicals, Organic and Inorganic, Resins, Starch, Enzymes, Pesticides, Activated Clay, Phosphoric compounds, Marine Chemicals
Dye Stuffs: Pigments, Dyes, Intermediates
Food Indust: Vegetable Oils, Cane Juice, Food Colors Soups, Distilleries, Dairies and Hotels
Description of this membrane filter press
1. Beam, High quality carbon steel Q345 and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.
2. Plate, TPE with acid & alkali resistance, anticorrosion, innocuity, tasteless,light weight and high strength.
3. Feeding type, Center feeding.
4. Pressing type, Hydraulic station.
5. Discharge type, Automatic ones.
All technical data of our membrane filter press:
|
Type |
Filter area(m2) | Filter plate size(mm) | Filter cake thickness(mm) | Filter chamber volume(L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H)(mm) |
| XG30/870-30U | 30 | 870×870 | 30 | 427 | 23 | 0.6 | 4.0 | 2680 | 3490×1250×1300 |
| XG40/870-30U | 40 | 534 | 29 | 3050 | 3880×1250×1300 | ||||
| XG50/870-30U | 50 | 676 | 37 | 3465 | 4400×1250×1300 | ||||
| XG60/870-30U | 60 | 818 | 45 | 4003 | 4920×1250×1300 | ||||
| XG70/870-30U | 70 | 960 | 53 | 4584 | 5240×1250×1300 | ||||
| XG80/870-30U | 80 | 1103 | 61 | 5082 | 5760×1250×1300 | ||||
| XG50/1000-30U | 50 | 1000×1000 | 665 | 27 | 0.6 | 4.0 | 4352 | 4270×1500×1400 | |
| XG60/1000-30U | 60 | 808 | 33 | 4480 | 4770×1500×1400 | ||||
| XG70/1000-30U | 70 | 950 | 39 | 5263 | 5130×1500×1400 | ||||
| XG80/1000-30U | 80 | 1093 | 45 | 5719 | 5560×1500×1400 | ||||
| XG100/1000-30U | 100 | 1378 | 57 | 6555 | 6410×1500×1400 | ||||
| XG120/1000-30U | 120 | 1663 | 69 | 7466 | 7260×1500×1400 |
| Type |
Filter area (m2) |
Filter plate size(mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H) (mm) |
| XGZY80/1250-35U | 80 | 1250×1250 | 35 | 1364 | 29 | 0.6 | 4.0 | 10900 | 4830×1800×1600 |
| XGZY100/1250-35U | 100 | 1680 | 37 | 11750 | 5440×1800×1600 | ||||
| XGZY120/1250-35U | 120 | 2092 | 45 | 12600 | 6060×1800×1600 | ||||
| XGZY150/1250-35U | 150 | 2547 | 55 | 13620 | 6820×1800×1600 | ||||
| XGZY160/1250-35U | 160 | 2729 | 59 | 14470 | 7130×1800×1600 | ||||
| XGZY200/1250-35U | 200 | 3457 | 73 | 15320 | 8200×1800×1600 | ||||
| XGZY240/1250-35U | 240 | 4093 | 89 | 16170 | 9420×1800×1600 | ||||
| XGZY250/1250-35U | 250 | 4276 | 91 | 17020 | 9570×1800×1600 | ||||
| XGZY200/1500-35U | 200 | 1500×1500 | 3922 | 49 | 7.5 | 26120 | 7140×2200×2000 | ||
| XGZY250/1500-35U | 250 | 4463 | 61 | 26930 | 7730×2200×2000 | ||||
| XGZY300/1500-35U | 300 | 5274 | 73 | 28160 | 8720×2000×1820 | ||||
| XGZY350/1500-35U | 350 | 6221 | 85 | 29600 | 10110×2000×1820 | ||||
| XGZY400/1500-35U | 400 | 7032 | 99 | 31500 | 11260×2000×1820 | ||||
| XGZY450/1500-35U | 450 | 7844 | 111 | 33400 | 12250×2000×1820 | ||||
| XGZY500/1500-35U | 500 | 8791 | 123 | 33380 | 13240×2000×1820 | ||||
| XGZY600/2000-40U | 600 | 2000×2000 | 40 | 12000 | 85 | 54164 | 13030×3520×2500 | ||
| XGZY700/2000-40U | 700 | 14000 | 99 | 58300 | 14390×3000×2500 | ||||
| XGZY800/2000-40U | 800 | 16000 | 107 | 624460 | 15770×3000×2500 | ||||
| XGZY900/2000-40U | 900 | 18000 | 127 | 66620 | 17150×3000×2500 | ||||
| XGZY1000/2000-40U | 1000 | 20000 | 141 | 70780 | 18530×3000×2500 |
Why choose us:
1. 12 months guarantee period from machine delivery date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
