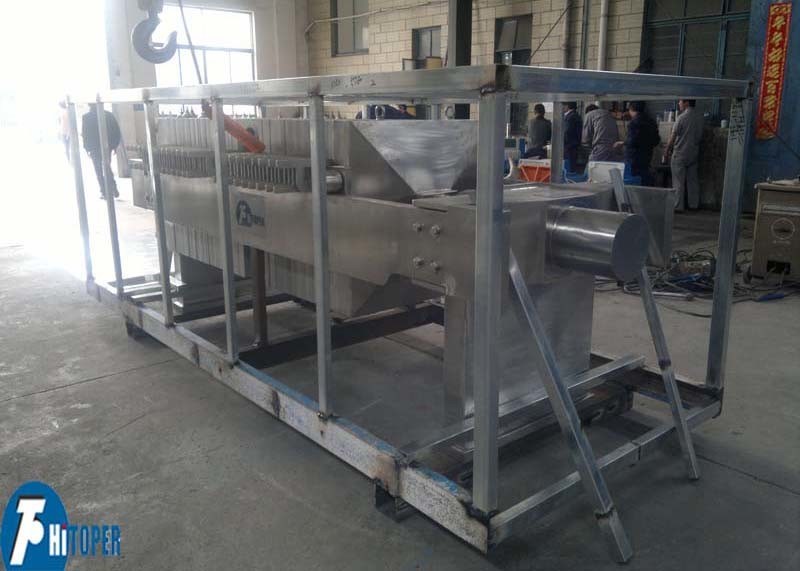

Beet Pulp Clarification Plate And Frame Filter Press With 1m2 - 30m2 Filter Area

Beet Pulp Clarification Plate And Frame Filter Press With 1m2 - 30m2 Filter Area

    • Beet Pulp Clarification Plate And Frame Filter Press With 1m2 - 30m2 Filter Area
    • Beet Pulp Clarification Plate And Frame Filter Press With 1m2 - 30m2 Filter Area
  • Beet Pulp Clarification Plate And Frame Filter Press With 1m2 - 30m2 Filter Area

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: BAY30/800

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 30-40 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 20 sets per month for this plate and frame filter press
    Contact Now
    Detailed Product Description
    Filter Area: 30m2 Plate And Frame Size: 800*800mm
    Filter Chamber Volume: 377L Plate And Frame Number: 75pcs
    Filtrating Pressure: 0.6Mpa Motor Power: 4.0kw
    All Material: Stainless Steel Voltage: 220/380V/400/440V
    Function: Solid-liquid Separation Application: Food,beverage,chemcial,mineral,pharmacy,biological Etc.
    Filter Medium: Filter Cloth, Filter Cardboard ,filter Paper Condition: New
    Feeding Method: Pump Feeding
    High Light:

    stainless steel filter press

    ,

    plate frame filter press

    Beet Pulp Clarification Plate And Frame Filter Press With 1m2 - 30m2 Filter Area





    Details infos of this model BAY30/800-25:



    Filter area: 30m2

    Plate size: 800*800mm

    Cake thickness: 25mm

    Filter chamber: 377L

    Plate number: 37pcs

    Frame number: 38pcs

    Pressure: 0.6Mpa

    Weight: 4980kgs

    Dimension: 3580*950*1010mm



    Features:



    1. stainless steel, anti-corrosion;

    2. Customizable for processing.

    3. Can bear higher temperature to 300C.





    Product advantages:



    1) All the frames are made of high-strength steel welded parts. The frame has high strength, stable structure and long service life, which is enough to withstand the strong pressure caused by pressure filtration.

    2) The polypropylene filter plate is molded. The surface is smooth and smooth, high in strength, light in weight, acid and alkali resistant, corrosion resistant, non-toxic and tasteless.

    3) The main beam surface of the machine is equipped with a wear-resistant non-metallic track formed once.





    Hot usage:



    Chemicals: dyes, pigments, chalk powder, electrolytic manganese, caustic soda, soda ash, chlor-alkali salt mud, white carbon black, saponin, graphite, bleaching powder, lithopone, phosphor, insurance powder, potassium chlorate, potassium sulfate, ferrous sulfate, Iron hydroxide, water purifying agent (aluminum sulfate, polyaluminum chloride, basic aluminum chloride) and the like.
    Medicine: antibiotics (chlortetracycline, erythromycin, spiramycin, jinggangmycin, medimycin, tetracycline, berberine, oxytetracycline), calcium phytate, Chinese medicine inositol, growth-derived sand, organic phosphorus, Glycosylase.
    Food: yellow wine, white wine, juice, beverage, beer, yeast, citric acid, vegetable protein, beet juice, glucose, stevia, maltose, starch, rice flour, corn syrup, gum, carrageenan, monosodium glutamate, spices, sauce , oral liquid, soy milk, seaweed.
    Refining: white oil, sesame oil, light oil, glycerin, mechanical oil, vegetable oil.
    Clay: kaolin, bentonite, activated earth, china clay, electronic ceramic soil.
    Sewage treatment: new equipment for clarification and purification of various liquid particles such as chemical sewage, smelting sewage, electroplating sewage, leather sewage, printing and dyeing sewage, brewing sewage, pharmaceutical sewage, environmental sewage, etc.





    Technical parameters:



    TYPE

    Filter area

    (m2)

    plate size

    (mm)

    Cake thickness

    (mm)

    Filter chamber volume

    (L)

    Number plate

    (pcs)

    Number frame

    (pcs)

    Pressure

    (Mpa)

    Weight

    (kg)

    Dimensions

    L x W x H

    BAQ1/320 1 320 x 320 25 13 4 5 1.0 300 1050x700x680
    BAQ2/320 2 25 9 10 440 1405x700x680
    BAQ3/320 3 38 14 15 600 1650x700x680
    BAQ4/450 4 450 x 450 51 9 10 0.8 780 1680x880x900
    BAQ6/450 6 76 14 15 995 1980x880x900
    BAQ8/450 8 102 19 20 1250 2180x880x900
    BAQ10/450 10 122 24 25 1470 2430x880x900
    BAQ12/450 12 152 29 30 1700 2680x880x900
    BAQ16/450 16 203 39 40 2170 3180x880x900
    BAY4/450 4 51 9 10 850 2030x880x900
    BAY6/450 6 76 14 15 1070 2280x880x900
    BAY8/450 8 102 19 20 1950 2530x880x900
    BAY10/450 10 122 24 25 2170 2780x880x900
    BAY12/450 12 152 29 30 2400 3030x880x900
    BAY16/450 16 203 39 40 2870 3530×880×900
    BAQ10/610 10 550 x 550 122 15 16 0.6 2030 2180x950x1010
    BAQ12/610 12 152 19 20 2290 2380x950x1010
    BAQ15/610 15 189 24 25 2610 2630x950x1010
    BAQ20/610 20 250 32 33 3120 3030x950x1010
    BAY10/610 10 122 15 16 2730 2230x950x1010
    BAY12/610 12 152 19 20 2990 2430x950x1010
    BAY15/610 15 189 24 25 3310 2680x950x1010
    BAY20/610 20 250 32 33 3820 3080x950x1010
    BAQ15/630 15 630 x 630 189 18 19 2620 2325x950x1010
    BAQ20/630 20 250 24 25 3100 2630x950x1010
    BAQ30/630 30 377 37 38 4130 3280x950x1010
    BAY15/630 15 189 18 19 2870 2630x950x1010
    BAY20/630 20 250 24 25 3950 2930x950x1010
    BAY30/630 30 377 37 38 4980 3580x950x1010
    BAY30/800 30 800 x 800 442 22 23 5710 3150x1300x1300
    BAY40/800 40 595 30 31 7126 3630x1300x1300
    BAY50/800 50 748 38 39 8543 4100x1300x1300





    About our Zhengzhou Toper Company:



    Zhengzhou Toper is the leading supplier of industrial eqipment in China,and also the professional export and service provider of fitler and separation equipment.Also ,we focus on full service for filtering project from desigh to after -sale service and fast supply of spare parts.

    1. We have professional person on line to advise you the most suitable type of machie according to your requirement.

    2. Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

    3. Arrange the schedule if you pay a visit to our factory

    4. Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.





    All of our products:



    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press

    15. SS type three-foot upper discharge centrifuge

    16. SD type three-foot and filter bag hoist discharge centrifuge

    17. PD type filter bag hoist discharge centrifuge

    18. Centrifuge of up discharge, three foot, clean series SSB, SB

    19. SX type manual top discharge centrifuge

    20. PS type manual top discharge centrifuge

    21. SGZ type automatic scraper bottom discharge centrifuge

    22. PGZ type scarper bottom discharge centrifuge

    23. LW series decanter centrifuge

    24. Tubular centrifuge

    25. Multi-layer stainless steel frame filter

    26. Bag filter

    27. Diatomite filter

    28. Filter late

    29. Filter cloth

    30. Vacuum disc filter





    How to select the suitable model, need the below infos:



    1. Pulp type.

    2. Per hour input capacity.

    3. Solid percentage and size in the pulp.

    4. Temperature and PH value of the pulp.

    That is all.
