Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | BY30/630-30U |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 30-40 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 20 sets per month |
Filtration Area: | 30m2 | Filter Plate Size: | 630*630mm |
---|---|---|---|
Filter Chamber Volume: | 298L | Plate And Frame Total Number Number: | 75pcs |
Filtrating Pressure: | 0.6Mpa | Motor Power: | 2.2kw |
Main Feature: | To Bear High Temperature To Be 300C. | Construction: | Cast Iron. |
Voltage: | 220V/380V/400V | Usage: | Waste Oil Clarify |
Filter Plate Material: | Cast Iron Or Ductile Iron | Function: | Solid-liquid Separation |
Application: | Petrochemical,metallurgy,oil,ceramics Industry | Conditon: | New |
Highlight: | stainless steel filter press,plate frame filter press |

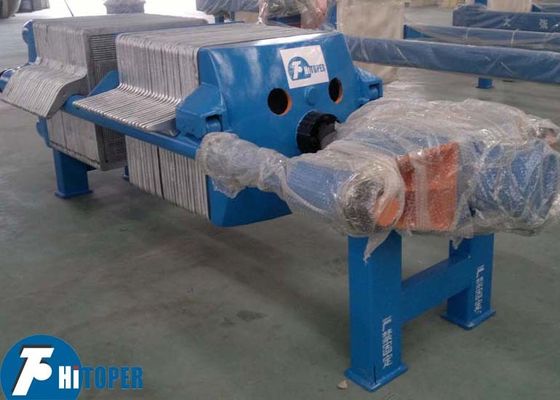

Cast Iron Plate And Frame Filter Press For Waste Engine Oil / Motor Oil Recycle
The so-called waste engine oil, one refers to the oil in the use of impurities, such as water, dust, other miscellaneous oil and metal powder generated by the wear of the machine parts, resulting in blackening of the color and increased viscosity. Second, the oil gradually deteriorates, producing organic acids, colloids and bituminous substances.
The waste engine oil body itself is not damaged much, but the additives inside have expired in the accumulated use of the product and contain impurities in the engine. After purification, adding new additives, it can become a regenerative oil to return to the market, and the performance remains unchanged. Some ships can use oil as fuel. A large amount of used motor oil can act as an inexpensive fuel. Used motor oil can be used as a release agent in construction. Waste oil can be used as a coating and waterproof material. Waste engine oil can refine non-standard diesel. Waste engine oil can be used to refine the base oil. And our membrane filter press is hot sale in this usage. To impove color, first mix fine activated carbon black powder into the waste oil, then use our membrane filter press to separate the carbon from oil.
.

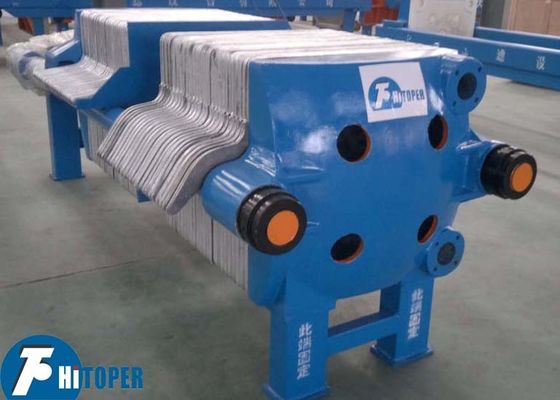

This cast iron plate and frame filter press is made of high-quality cast iron or ductile iron. It has the characteristics of high strength of filter plate, high filtration pressure, high temperature resistance, fast filtration speed, low water content of filter cake, fast discharge and long service life. It is suitable for filtration of ceramics, petrochemical, grease, mechanical oil decolorization and other products with high viscosity, high temperature and low water content. .
The filter press utilizes the pressure difference on both sides of the filter cloth to force most of the water in the material to pass through the filter cloth and out of the machine body, and the material is blocked in the filter chamber to form a filter cake to achieve the purpose of filtration. Due to the relatively large pressure difference on both sides of the filter cloth during the filtration process, the filtration speed is lowered to reduce the water content of the filter cake, and the special filter cloth is used to make the filtrate pure and the filtration effect is much better than that of the vacuum filter.
The filter press has good effects even when dealing with materials that are difficult to filter, and is easy to be used for anti-corrosion treatment. The structure is simple, the operation is convenient, and the price is lower than other filters. Therefore, choosing a filter press as a dewatering equipment is your best choice.
Technical data of this cast iron filter press,
Type |
Filter area (m2) |
Filter plate size (mm) |
Cake thickness (mm) |
Chamber volume (L) |
Plate number (pcs) |
Frame numbe r (pcs) |
Filtrating pressure (Mpa) |
Weight (kg) |
Dimensions(mm) L×W×H |
BQ1/320-25 | 1 | 320 x 320 | 25 | 13 | 4 | 5 | 1.0 | 380 | 1150×760×650 |
BQ2/320-25 | 2 | 25 | 9 | 10 | 500 | 1390×760×650 | |||
BQ3/320-25 | 3 | 38 | 14 | 15 | 620 | 1750×760×650 | |||
BQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 10 | 0.8 | 1060 | 1780×760×650 |
BQ6/450-25 | 6 | 76 | 14 | 15 | 1160 | 2055×870×880 | |||
BQ8/450-25 | 8 | 102 | 19 | 20 | 1360 | 235×870×880 | |||
BQ12/450-25 | 12 | 152 | 29 | 30 | 1530 | 2785×870×880 | |||
BQ16/450-25 | 16 | 203 | 39 | 40 | 1760 | 3305×870×880 | |||
XQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 1.0 | 960 | 1900×870×880 | |
XQ6/450-25 | 6 | 76 | 14 | 1140 | 2030×870×880 | ||||
XQ8/450-25 | 8 | 102 | 19 | 1460 | 2280×870×880 | ||||
XQ12/450-25 | 12 | 152 | 29 | 1960 | 2780×870×880 | ||||
XQ16/450-25 | 16 | 203 | 39 | 2460 | 3280×870×880 | ||||
BQ20/630-25 | 20 | 630 x630 | 25 | 298 | 24 | 25 | 0.6 | 3300 | 2750×1150×1100 |
BQ30/630-25 | 30 | 452 | 37 | 38 | 4500 | 3220×1150×1100 | |||
BQ40/630-25 | 40 | 295 | 49 | 50 | 5600 | 3870×1150×1100 | |||
BY20/630-25 | 20 | 298 | 24 | 25 | 3700 | 2960×1150×1100 | |||
BY30/630-25 | 30 | 452 | 37 | 38 | 5000 | 3610×1150×1100 | |||
BY40/630-25 | 40 | 595 | 49 | 50 | 6100 | 4210×1150×1100 | |||
XQ20/630-25 | 20 | 25 | 248 | 24 | 0.8 | 3400 | 2600×1100×1100 | ||
XQ30/630-25 | 30 | 377 | 37 | 4700 | 3250×1100×1100 | ||||
XQ40/630-25 | 40 | 496 | 49 | 5900 | 3900×1100×1100 | ||||
XY20/630-25 | 20 | 248 | 24 | 3800 | 2950×1100×1100 | ||||
XY30/630-25 | 30 | 377 | 37 | 5200 | 3580×1100×1100 | ||||
XY40/630-25 | 40 | 496 | 49 | 6400 | 4180×1100×1100 |
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
