    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: CX-Ф300

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: about 15 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 100 sets per month for this laminated plate and frame filter
    Contact Now
    Detailed Product Description
    Filter Area: 0.7 Filter Material Diameter: 310mm
    Filter Plate And Number Number: 10 Filtrating Pressure: 0.2-0.6Mpa
    Water Flow: 4t/h Material: SS304/SS316L
    Highlight:

    industrial filter press

    ,

    plate frame filter press

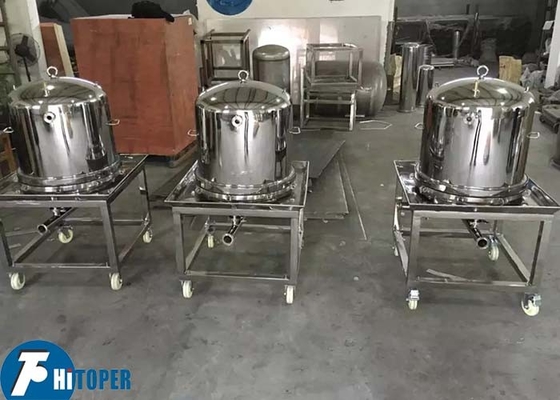

    Laminated Plate And Frame Filter , Stainless Steel Stack Filtration Machine





    Laminated plate and frame filter, is our new design stacked plate and frame filter, is widely used in chemical, pharmaceutical, oil and environmental protection industries, is a new filter equipment for all kinds of tiny impurities in the liquid filtration, clarification, purification treatment. Also is a new filter with sophisticated technology, stability performance, corrosion-resistant, durable, novel structure, easy to operation, energy-efficient and flexible, adaptable multipurpose filtration equipment.





    Laminated plate and frame filter structure:

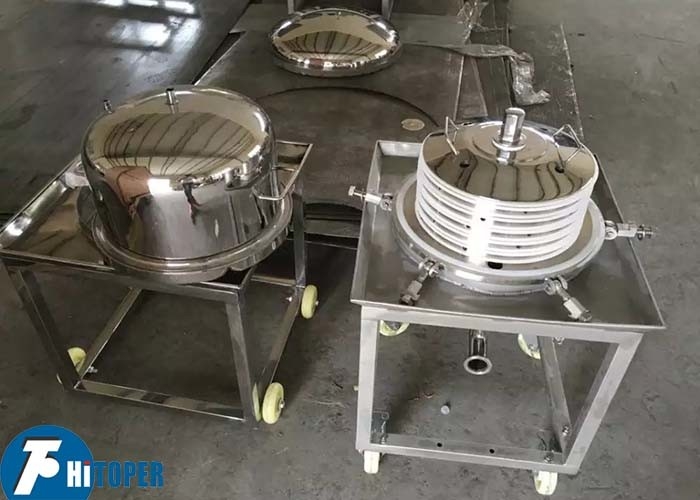

    This filter consists of multi-overlap filter plates and filter frames. The holes on the plates is drilling by the computer programs, small and uniform, which ensures evenly filtration pressure on the filter plates, to give you a better filtration effect, With the pump raw solution get into the cylinder body, go into the chamber by the holes on the frames, get through the filter medium and flow out from the small holes on the plates, then qualified liquid discharge. We can give you suitable filter medium with your requirments, like polypropylene membrane, enhanced membrane, filter paper, cloth, special decarbonization filter membrane and so on.





    Laminated plate and frame filter features:



    Besides big flow rate, high speed, more activated carbon alive, small footprint, large filter area, easy operation and so on. The machine is particularly used in chemical liquid and viscous liquid filtration. Solve the problem of a viscous liquid filtration in chemical industry. Ensure filtration liquid odor in closed state work, so do not run liquid filtration (seepage of liquid), no residual liquid within the filter, do clean and odorless in operation and workshop, forward on environmental management step.





    Laminated plate and frame filter advantages, compare to traditional stainless steel multi-layers filter:



    1. This filter can withstand the pressure 0.1--0.6Mpa, no leakage, because this machine adopts mechanical pressing and closed flange connection, eliminate leakage phenomenon.

    2. The maximum flow can be done 200T / h, due to the unit enters from the inlet DN40 or DN50, DN80, DN100, DN120, which divided two to three inlets into the filter, get into the chambers by the 6-8 holes in the frames, get through the filter medium and flow out from the small holes on the plates, the discharge outlet is DN40 or DN50, DN80, DN100, DN120, fully ensure that the inlet fluid also ensures that the liquid discharge. can ensure a large flow and shorten the filtration cycle.

    3. There is two types of insulation filter and normal temperature filter, insulation filter solve the problems of low temperature crystallization and slow flow in pharmaceutical, fine chemical liquid filtration. Available three kinds of heating ways, steam heating, hot water heating or electric heating tube(jacket), three sandwich also can be.





    Laminated plate and frame filter technical parameters:



    Specification Layers Filter area ( m2) Size of the filter material (mm) Filtration pressure (MPa) Water flow(t/h) Activated carbon alive(kg)
    CX-Ф300 10 0.7 Ф310 0.2-0.6 4 1-4
    CX-Ф300 20 1.4 Ф310 0.2-0.6 8 3-8
    CX-Ф300 30 2.1 Ф310 0.2-0.6 12 4-12
    CX-Ф400 20 2.5 Ф410 0.2-0.6 14 5-18
    CX-Ф400 30 3.7 Ф410 0.2-0.6 21 8-22
    CX-Ф400 40 5.0 Ф410 0.2-0.6 28 10-30
    CX-Ф500 20 3.9 Ф510 0.2-0.6 25 11-28
    CX-Ф500 40 7.8 Ф510 0.2-0.6 50 22-56
    CX-Ф600 20 5.6 Ф610 0.2-0.6 60 20-50
    CX-Ф600 30 8.4 Ф610 0.2-0.6 90 30-80
    CX-Ф600 40 11.3 Ф610 0.2-0.6 120 40-100
    CX-Ф700 20 7.7 Ф710 0.2-0.6 100 30-100
    CX-Ф700 40 15.3 Ф710 0.2-0.6 160 50-150
    CX-Ф800 30 15.0 Ф810 0.2-0.6 160 50-150
    CX-Ф800 40 20.0 Ф810 0.2-0.6 220 70-200
    CX-Ф1000 30 23.5 Ф1010 0.2-0.6 250 100-300
    CX-Ф1000 40 31.4 Ф1010 0.2-0.6 350 150-400


    All of our products:



    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press

    15. SS type three-foot upper discharge centrifuge

    16. SD type three-foot and filter bag hoist discharge centrifuge

    17. PD type filter bag hoist discharge centrifuge

    18. Centrifuge of up discharge, three foot, clean series SSB, SB

    19. SX type manual top discharge centrifuge

    20. PS type manual top discharge centrifuge

    21. SGZ type automatic scraper bottom discharge centrifuge

    22. PGZ type scarper bottom discharge centrifuge

    23. LW series decanter centrifuge

    24. Tubular centrifuge

    25. Multi-layer stainless steel frame filter

    26. Bag filter

    27. Diatomite filter

    28. Filter late

    29. Filter cloth

    30. Vacuum disc filter





    Why choose us:



    1. Manufacture experience,

    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

    2. Technology capacity,

    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

    3. Our superiority,

    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

    4. Best after-sales,

    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
