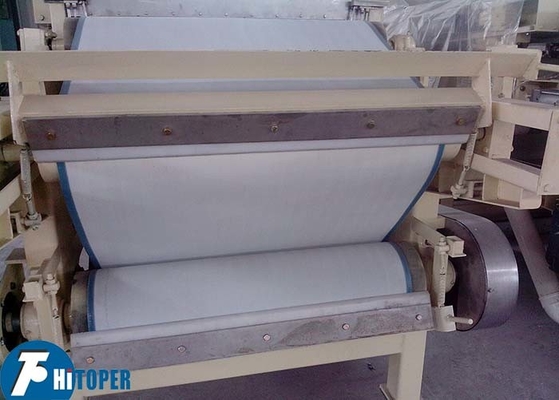

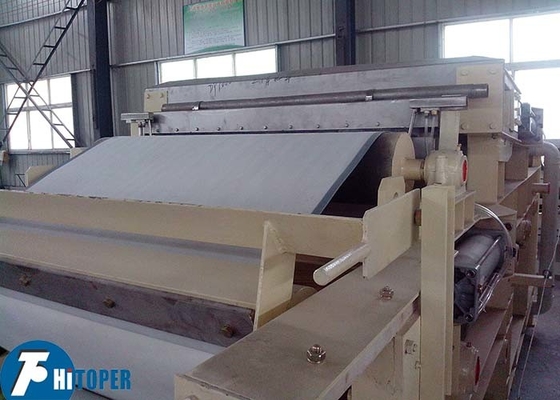

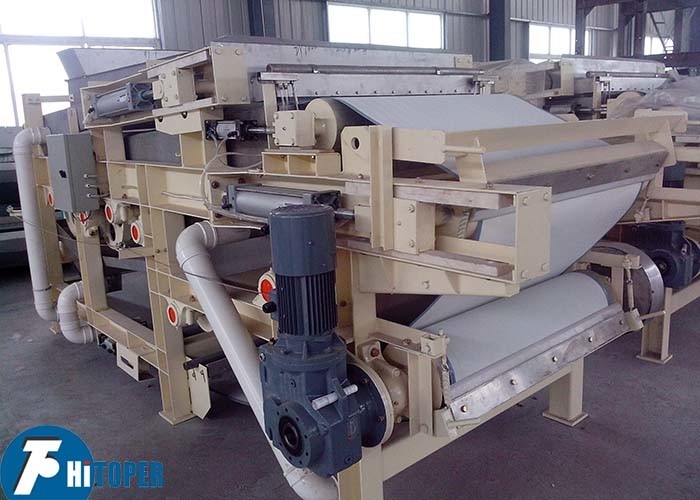

Long Wedge-Shaped Dewatering Zone Belt Filter Press for Sludge Dewatering

Long Wedge-Shaped Dewatering Zone Belt Filter Press for Sludge Dewatering

    • Long Wedge-Shaped Dewatering Zone Belt Filter Press for Sludge Dewatering
    • Long Wedge-Shaped Dewatering Zone Belt Filter Press for Sludge Dewatering
    • Long Wedge-Shaped Dewatering Zone Belt Filter Press for Sludge Dewatering
  • Long Wedge-Shaped Dewatering Zone Belt Filter Press for Sludge Dewatering

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DY1000

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Standard container.
    Delivery Time: about 30 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 10 sets per month for this belt filter press
    Contact Now
    Detailed Product Description
    Filter Cloth Width: 1000mm Capacity: 8-12m3/h
    Dry Volume: 150-300kg/h Moisture Content: 63-84.5%
    Motor Power: 1.5kw Reference Dimension: 4250*1880*2100mm
    Main Material: Carton Steel And Stainless Steel Application: Petrochemical,metallurgy,oil,ceramics Industry
    Function: Solid-liquid Separation Voltage: 380V/220V /400-450V/Customized
    Conditon: New
    Highlight:

    industrial filter press

    ,

    filter press unit

    Industrial Belt Filter Press Machine Continuous Work Type For Sludge Dewatering





    DY series belt filter press is the national research institutes with the introduction of foreign advanced technologies based on the successful development of new models, widely used in urban waste water treatment, chemical, oil refining, metallurgy, paper, leather, food, coal washing, printing and dyeing industry, sludge dewatering. Machine continuous operation, high degree of automation, energy saving, high efficiency, easy maintenance, is ideal for sludge dewatering equipment.





    Belt filter press design features:



    1. Austrial advanced technology, beautiful appearance.

    2. Structural rigidity, smooth operation, low noise.

    3. Configure the advanced pre-enrichment equipment, sludge flocculation effect, low operating costs.

    4. Gravity dewatering zone configuration advanced distributor, distribution of material to extend the filter life.

    5. With a long wedge-shaped gravity dewatering zone and dewatering zone, the material dehydrated fully to ensure that material will not overflow in the press area.

    6. Rolls arranged in a scientific and orderly system, gravity dehydration, wedge-shaped dehydration, press dehydration were discharged without disturbing each other. Ratio of large diameter roller press dehydration, dehydration effect, the production capacity, energy efficient.

    7. From feeding to discharge the cake continuous operation, high degree of automation, PLC interface can be installed as needed, to facilitate centralized control computer.

    8. Power transmission by mechanical or frequency conversion speed range, wide adaptability.

    9. Backwash device with reliable, guaranteed filter with the dewatering effect.

    10. Pneumatic tension and pneumatic automatic correction device to ensure normal operation of the filter with the security.

    11. Safe and reliable operation, infrared security and safety of a full range of emergency stop devices.

    12. Can be configured according to different materials with different specifications of the filter, filtering and high precision.





    Belt filter press technical parameters:



    Type

    DY750 DY1000 DY1500 DY2000 DY2500 DY3000
    Filter width(mm) 750 1000 1500 2000 2500 3000

    Capacity Into concentration (s.s.1.5~2.5%)

    6~9 8~12 12~18 16~24 20~30 28~38
    Dry volume(kg/hr) 110~225 150~300 225~450 300~600 375~750 420~950
    Moisture content(%) 63~84.5 63~84.5 63~84.5 63~84.5 63~84.5 63~84.5
    Motor power(HP) 1.5 1.5 1.5 2.2 2.2 2.2

    Reference Dimensions

    (mm)

    L 4250 4250 4250 4250 4250 4250
    W 1630 1880 2380 2920 3420 3920
    H 2100 2100 2100 2100 2100 2100
    Weight(kgs) 2570 2920 3590 4490 5520 6220





    Belt filter press typical slurry usage:



    Long Wedge-Shaped Dewatering Zone Belt Filter Press for Sludge Dewatering





    Why choose us:



    1. Manufacture experience,

    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

    2. Technology capacity,

    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

    3. Our superiority,

    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

    4. Best after-sales,

    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.





    Long Wedge-Shaped Dewatering Zone Belt Filter Press for Sludge Dewatering
