High Precision Cardboard Filter Press , Pharmacy / Biology Industry Blood Separator

High Precision Cardboard Filter Press , Pharmacy / Biology Industry Blood Separator

    • High Precision Cardboard Filter Press , Pharmacy / Biology Industry Blood Separator
    • High Precision Cardboard Filter Press , Pharmacy / Biology Industry Blood Separator
  • High Precision Cardboard Filter Press , Pharmacy / Biology Industry Blood Separator

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: BAY30/610-25U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 30-40 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 20 sets per month for this cardboard filter press
    Contact Now
    Detailed Product Description
    Filter Area: 30m2 Filter Plate Size: 550*550mm
    Filter Plate And Number Number: 49pcs Filtrating Pressure: 0.4Mpa
    Motor Power: 2.2kw Filter Chamber Volume: 378L
    Plate Type: Plate And Frame Type Plate Material: Reinforced Polypropylene
    Plate Color: White Filter Function: Solid-liquid Separation
    Voltage: 380V/220V /400-450V/Customized
    High Light:

    wastewater filter press

    ,

    industrial filter press

    High Precision Cardboard Filter Press , Pharmacy / Biology Industry Blood Separator

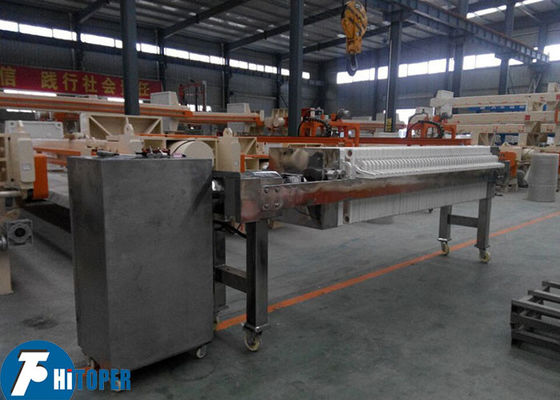

    Cardboard filter press structure includes the beam, pipeline system, fine filter plate group and hydraulic clamping device. Filtration cardboard as the filter medium, is a high-precision filtration equipment. It can meet the requirements of the liquid for further purification to the liquid, which has primary filtration and reach the concentration values. The performance can be achieved in accordance with cardboard clear filtration and sterile filtration, diatomite can also be pre-coated on the cardboard, to achieve higher filtration requirements, clarification filtration of up to 99.9%, after filtration turbidity (EBC) can reach 0.3 or less. The machine is generally used in conjunction with the front channel filter. Product novel structure, easy to move, simple operation, filter plate of reinforced polypropylene, acid corrosion, non-toxic, long service life.





    Filtration principle,



    Under the influence of certain pressure, the filtrate goes into the machine, and flows into each filter unit, at adsorption, interception of cardboard, to remove the residue. After each filter unit to filter out the serum pooled together. Flow out the filter, to reach the filtrate further purification.





    Application,



    This machine is mainly applied to medicine, food, biological, beverages, brewing, chemical and other industries, when used for filtration of blood products, also known as plasma separation machine.





    Technical data,



    TYPE

    Filter area

    (m2)

    Filter chamber volume

    (L)

    plate size

    (mm)

    Cake thickness

    (mm)

    Number plate

    (pcs)

    Number frame

    (pcs)

    Weight

    (kg)

    Pressure

    (Mpa)

    Dimensions

    L x W x H(mm)

    BAY10/610-25u 10 128 550 25 16 17 690 0.4 2650x1020x1020
    BAY15/610-25u 15 189 550 25 24 25 715 0.4 3050x1020x1020
    BAY20/610-25u 20 257 550 25 33 34 727 0.4 3450x1020x1020
    BAY25/610-25u 25 317 550 25 41 42 738 0.4 3820x1020x1020
    BAY30/610-25u 30 378 550 25 49 50 750 0.4 4300x1020x1020





    All of our products:



    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press

    15. SS type three-foot upper discharge centrifuge

    16. SD type three-foot and filter bag hoist discharge centrifuge

    17. PD type filter bag hoist discharge centrifuge

    18. Centrifuge of up discharge, three foot, clean series SSB, SB

    19. SX type manual top discharge centrifuge

    20. PS type manual top discharge centrifuge

    21. SGZ type automatic scraper bottom discharge centrifuge

    22. PGZ type scarper bottom discharge centrifuge

    23. LW series decanter centrifuge

    24. Tubular centrifuge

    25. Multi-layer stainless steel frame filter

    26. Bag filter

    27. Diatomite filter

    28. Filter plate

    29. Filter cloth

    30. Vacuum disc filter





    Why choose us:



    1. Manufacture experience,

    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

    2. Technology capacity,

    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

    3. Our superiority,

    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

    4. Best after-sales,

    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.







    High Precision Cardboard Filter Press , Pharmacy / Biology Industry Blood Separator
