Cast Iron Material Filtration Machine, Plate and Frame type Oil Filter Press

Cast Iron Material Filtration Machine, Plate and Frame type Oil Filter Press

    • Cast Iron Material Filtration Machine, Plate and Frame type Oil Filter Press
    • Cast Iron Material Filtration Machine, Plate and Frame type Oil Filter Press
  • Cast Iron Material Filtration Machine, Plate and Frame type Oil Filter Press

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: BY50/800-25

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 30-40 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Filtration Area: 50m2 Filter Plate Size: 800*800mm
    Filter Chamber Volume: 624L Plate Number: 38pcs
    Frame Number: 39pcs Motor Power: 2.2kw
    Main Feature: To Bear High Temperature To Be 300C. Construction: Cast Iron.
    Voltage: 220V/380V/400V/Customized Usage: Oil Cleaner
    Filtrareting Pressu: 0.6Mpa Weight: 7650kg
    Dimensions: 3970*1380*1300mm Filter Medium: Filter Cloth, Filter Cardboard ,filter Paper
    Plate Compress Type: Hydraulic Compress Feeding Method: Pump Feeding
    Cake Discharge Type: Manual Discahrge Conditon: New

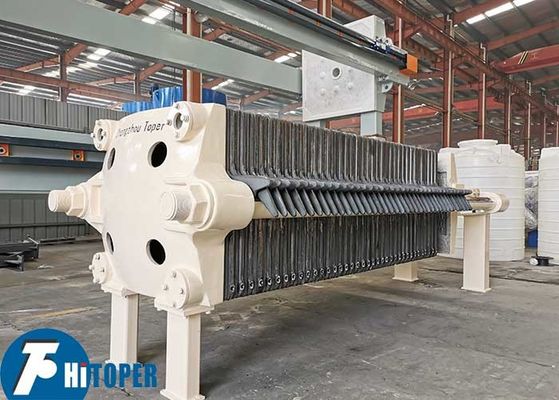

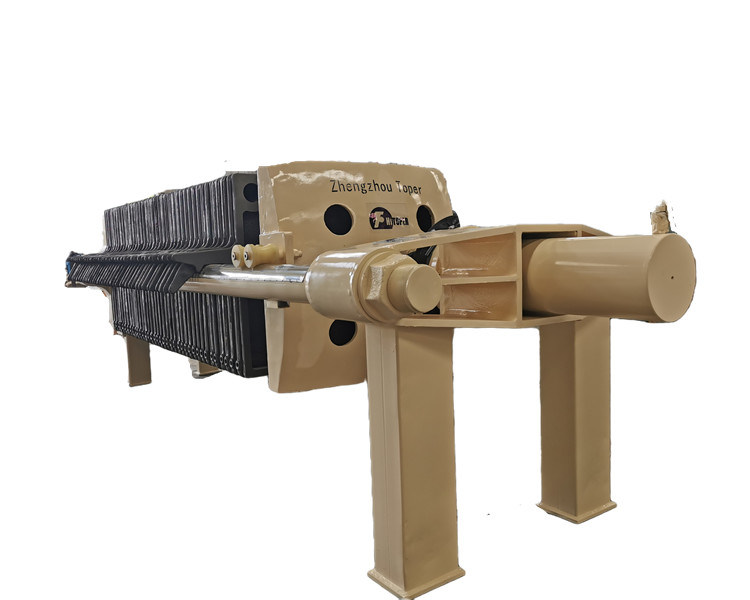

    Cast Iron Material Filtration Machine Plate And Frame Structure, Oil Filter Press Machine





    This flter press machine is widely used in new condition olive oil,palm oil,cosmetic oil, and various types waste oil, is made of high quality steel and cast iron, which can bear high pressure, high temperature, filtration speed, low cake moisture, unloading fast and so on. Best suitable for Sunflower oil,olive oil, cottonseed oil palm oil,cosmetic oil industry.



    Our Zhengzhou Toper company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. With high quality and best sale-service, having received a good reputation.



    Cast iron plate and frame filter press is made by high quality cast iron or ductile iron precision casting, with characteristics of high strength to withstand large filtration pressure, high temperature, filtration speed, low cake moisture, unloading,

    and long service life.





    Technical data of this cast iron filter press,



    Type

    Filter area (m2)

    Filter plate size (mm) Cake thickness (mm) Chamber volume (L) Plate number (pcs) Frame number (pcs) Filtrating pressure (Mpa) Weight (kg)

    Dimensions(mm)

    L×W×H

    BQ1/320-25 1 320 x 320 25 13 4 5 1.0 380 1150×760×650
    BQ2/320-25 2 25 9 10 500 1390×760×650
    BQ3/320-25 3 38 14 15 620 1750×760×650
    BQ4/450-25 4 450 x 450 25 51 9 10 0.8 1060 1780×760×650
    BQ6/450-25 6 76 14 15 1160 2055×870×880
    BQ8/450-25 8 102 19 20 1360 235×870×880
    BQ12/450-25 12 152 29 30 1530 2785×870×880
    BQ16/450-25 16 203 39 40 1760 3305×870×880
    XQ4/450-25 4 450 x 450 25 51 9   1.0 960 1900×870×880
    XQ6/450-25 6 76 14 1140 2030×870×880
    XQ8/450-25 8 102 19 1460 2280×870×880
    XQ12/450-25 12 152 29 1960 2780×870×880
    XQ16/450-25 16 203 39 2460 3280×870×880
    BQ20/630-25 20 630 x630 25 298 24 25 0.6 3300 2750×1150×1100
    BQ30/630-25 30 452 37 38 4500 3220×1150×1100
    BQ40/630-25 40 295 49 50 5600 3870×1150×1100
    BY20/630-25 20 298 24 25 3700 2960×1150×1100
    BY30/630-25 30 452 37 38 5000 3610×1150×1100
    BY40/630-25 40 595 49 50 6100 4210×1150×1100
    XQ20/630-25 20 25 248 24   0.8 3400 2600×1100×1100
    XQ30/630-25 30 377 37 4700 3250×1100×1100
    XQ40/630-25 40 496 49 5900 3900×1100×1100
    XY20/630-25 20 248 24   3800 2950×1100×1100
    XY30/630-25 30 377 37 5200 3580×1100×1100
    XY40/630-25 40 496 49 6400 4180×1100×1100







    Features of this cast iron filter press,



    1. Widely be used for dewatering high temperature materials.

    2. Plate and frame of filter press, the heart of filter press

    3. Material of plate and frame: cast iron

    4. Max temperature: up to 300 degree celsius

    5. Resistance to high temperature and high pressure.

    6. Long use life.

    Cast Iron Material Filtration Machine, Plate and Frame type Oil Filter Press
