| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | 5m2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | about 45 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 60 sets per month for this cotton cake filtre press |
| Filter Plate Size: | Diamter Of 400mm | Filter Chamber Volume: | 138L |
|---|---|---|---|
| Filter Plate Number: | 22pcs | Filtrating Pressure: | Less Than 2Mpa |
| Motor Power: | 1.1kw | Max. Pressure Inner Frame: | 3kg/cm2 |
| Flow Rate: | 55L/min | Oil Steady Pressure: | 12Mpa |
| Dimension: | 2630*1050*670mm | Motor Speed: | 1460r/min |
| Steady Pressure: | 12MPa | After-sales Service Provided: | Online Support |
| Warranty: | 12 Months | Function: | Liquid Solid Separation |
| High Light: | plate and frame filter press,filter press machine |
||

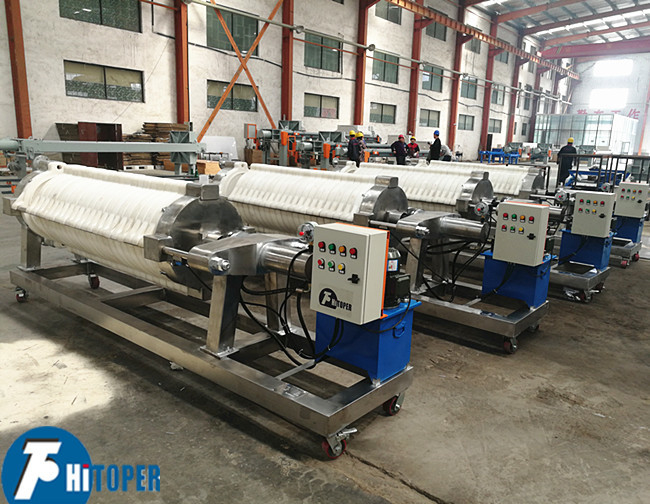

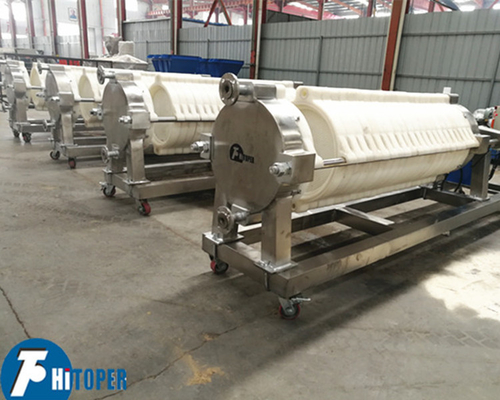

Wine / Water Filtration Cotton Cake Filter Press 1.1kw Motor Power 12Mpa Steady Pressure
1.Brief introduction:
Cotton cake filter press our company manufactured belongs to plate and frame type filter press.It is suitable for filtering and purifying liquid .It is widely used in chemical industry,metallurgy,pharmaceutical ,food and other industries.This filter press has such features of large filter area ,convenient operation and maintenance.Filter plate and frame adopts round structure.It is better than square structure.The material is of aluminum alloy and reinforced polypropylene.And the quantity of frame can be increased or reduced ,the machine can be applied to different liquid filtration.
It is used in fermentation ,enzymes,RNA gelatin,food and beverage ,and other high precision requirement industries.
Cotton filter press can be repeated using recycled fiber material as filter media to remove traces of oil in the liquid material, mechanical impurities, suspended complexes and other impurities, so that filtered liquid clear and transparent.
1. Round plate, 500mm, or 400mm
2. Feeding type, corner one.
3. Liquid flow type, close one.
4. Material type, aluminum alloy or reinforced polypropylene.
5. WIth wheels, canbe movable.
2.Technical data,
|
Filter area (m2) |
Plate size (mm) |
Frame thickness (mm) |
Filter pressure (Mpa) |
Plate quantity (pcs) |
Max. pressure Inner frame (kg/cm2) |
Volume inside frame (L) |
Dimension L×W×H |
Flow( L/min) |
Motor power (kw) |
Motor speed (r/min) |
Steady pressure (Mpa) |
Max. displacement (mm) |
| 8 | Ф500 | 50 | ≤2 | 22 | 3 | 216 |
2630×1150 ×770 |
87 | 1.1 | 1460 | 12 |
350
|
| 5 | Ф400 | 50 | ≤2 | 22 | 3 | 138 |
2630×1050 ×670 |
55 | 1.1 | 1460 | 12 | 350 |
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.
3. Other type of Toper's filtration filter press machine :
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cardboard filter press
10. DY belt filter press
11. DYX high pressure belt filter press
12. DNY rotary drum thickning/dehydrating belt filter press
13. Triple-belt thickning and dehydrating filter press
4. Toper's service
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.We can also send our technical engineer to your area guid for installation,degiggomg and training the workers if required .
