Manual Discharge Platform Base Centrifuge For Chemical / Food Intermittent Operation

Manual Discharge Platform Base Centrifuge For Chemical / Food Intermittent Operation

    • Manual Discharge Platform Base Centrifuge For Chemical / Food Intermittent Operation
    • Manual Discharge Platform Base Centrifuge For Chemical / Food Intermittent Operation
    • Manual Discharge Platform Base Centrifuge For Chemical / Food Intermittent Operation
    • Manual Discharge Platform Base Centrifuge For Chemical / Food Intermittent Operation
  • Manual Discharge Platform Base Centrifuge For Chemical / Food Intermittent Operation

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: PS1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 10-15 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 30 sets per month for this platform centrifuge
    Contact Now
    Detailed Product Description
    Drum Diameter: 1000mm Drum Volume: 150L
    Drum Load Limit: 200kgs Drum Rotate Speed: 1000r/min
    Separation: 560G Motor: 7.5kw
    Weight: 2000kgs Dimension: 2050*1500*1140mm
    Warranty: 12 Months Voltage: 380V 50HZ
    Operation: Batch Centrifugal Type: Basket Centrifuge
    Function: Solid And Liquid Separator
    High Light:

    industrial scale centrifuge

    ,

    liquid solid separation centrifuge

    Manual Discharge Platform Base Centrifuge For Chemical / Food Intermittent Operation







    Our company:



    We, Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter press ,centrifuge and separation equipment. Also, we focus on full service for filtering project from design to after-sales service and fast supply of spare parts.

    Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of more than 30 countries and areas excluding China mainland.

    We provide: 1) Top quality products and best service to our customers 2) Build famous brand.
    Category Activities: Filter Press, Water Treatment equipment, centrifuge and so on.
    Type: Manufacturer
    Year of Establish: 2006


    Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.





    Why choose us:

    1. Manufacture experience,
    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
    2. Technology capacity,
    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
    3. Our superiority,
    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
    4. Best after-sales,
    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.





    The centrifuge is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top. The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.



    This platform centrifuge is mainly used for data acquisition and analysis of various types of research machinery, universities, corporate laboratories, pilot phase. By focusing on the analysis and comparison of the various stages of adaptation and separation of materials data, convenience and mass production in the pilot phase of the production and application selection.



    The machine looks, compact and flexible, can be placed directly on the table to operate, with material contact parts can be used for production of various materials or spray, in order to meet the needs of the experiment. Its working principle is by accelerating the centrifugal force, so that the particle sedimentation rate significantly faster, and through the filter media, such as cloth and other separation work.



    PS series Flat Direct filtration centrifuge's bowl is based parts,direct-coupled motor drives the bowl rotate at high speed to form a centrifugal force field.Suspension liquid flow into the bowl from the top of the feeding tube,under the action of centrifugal force,threw to the drum wall,then into the inter-layer between shell and bowl through the filter holes in the bowl.Next,threw into the liquid collection chamber at the bottom of machine,discharged by the drain pipe,and solid phase retained the bowl.

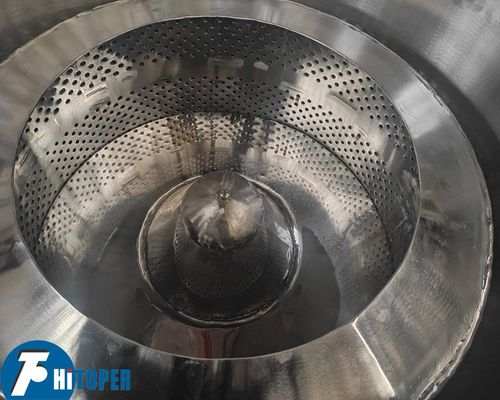

    The bowl of centrifuge

    Name: The bowl(drum) of centrifuge

    The bowl(drum) is the main parts of centrifuge.
    There are many holes on the bowl(drum).The solid will leave at the filter bag,and the liquid will flow to the outlet at the bottom.
    The rotating speed of PS450 is 0-2000rpm.
    The user can adjust the speed by control cabinet.



    The samll/big cover


    Name: The small/big cover

    The customer can choose small/big cover, we can design.



    On the cover, it is feeding inlet,washing port,viewport,etc.
    If the raw liquid is inflammable,such as ethyl alcohol,we can add nitrogen gas inlet for user. And it you need long distence control of explosive-motor, please tell us.
    Other requirement,please inform us,we can design for you.



    Design features of this platform centrifuge:


    1. Structure designed to effectively eliminate a health corner, the structure transition is smooth, the surface has been polished, outside structure parts, fasteners, and drum are not stainless steel, shell clamshell, can centrifuge drum shell and mezzanine space for thorough cleaning.
    2. Shell flip, set the feed pipe, wash pipe, mirrors, lighting hole. Automatic online cleaning system(sprinkler system), the centrifuge shell wall, inside and outside surface of the drum, set the liquid pool surface is not visible centrifuge parts cleaning Ensure the cleanliness requirements, meet the GMP standard.
    3. Simple structure, easy operation and maintenance.
    4. Versatility for a wide range. Both for the solid phase for the separation of granular suspensions can also be used for the separation of fibrous materials.
    5. Inverter can be started, start a smooth, adjustable separation factor; non-contact power brake system. anti-static belt drive; body enclosed structure, seals silicone rubber of fluorine rubber, anti-explosion requirements for toxic and flammable and explosive applications.
    6. Nitrogen protection system to ensure that the centrifuge chamber and the outside air.
    7. Grain is not easy to break.



    Application of this platform centrifuge:


    It is applicable to the filtrating of suspension containing granules and also be used for the dehydration of fiber substances and especially applicable to the filtrating of materials of high viscosity and fine granules as well as toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc. for example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.





    Technical parameters of this platform centrifuge:



    Type Drum

    Separation factor
    (w2r/g)

    Motor power
    (kw)

    Weight(kg) Dimension(mm)
    Dia.(mm) Volum(L) Load limit(kg) Rotation speed(r/min)
    PS300 300 5 10 2500 1050 1.1 180 890×600×500
    PS450 450 20 25 1900 910 1.5 250 980×650×870
    PS600 600 40 50 1500 756 3.0 800 1300×880×900
    PS800 800 100 135 1200 645 5.5 1300 1800×1200×1140
    PS1000 1000 150 200 1000 560 7.5 2000 2050×1500×1400
    PS1200 1200 250 300 800 431 11 2500 2350×1650×1370
