| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | GQ75 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | in 20 calander days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 60 sets per month for this tubular centrifuge |
| Drum Diameter: | 75mm | Drum Volume: | 2.7L |
|---|---|---|---|
| Drum Rotate Speed: | 21000r/min | Separation Factor: | 300 |
| Water Flow Capacity: | 500kg/h | Power: | 1.5kw |
| Motor: | Customized | Material: | 304 Or 316L Stainless Steel |
| Drum Height: | 450mm | Warranty: | 1 Year |
| Operation: | Manual | Application: | Liquid Liquid Solid Separation |
| High Light: | high speed centrifuge machine,tubular bowl centrifuge |
||

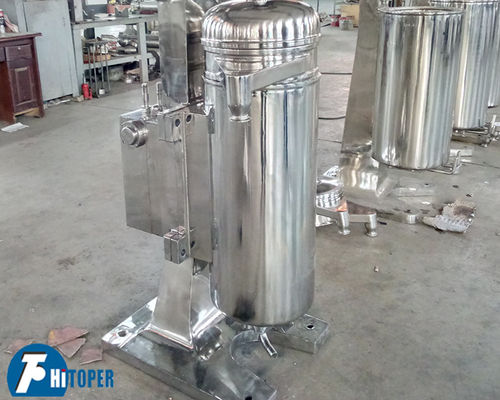

Stainless Steel Tubular Centrifuge For Virgin Coconut Oil Dehydrator System
GQ Tubular Clarification Centrifuge separator is mainly used for liquid-solid separation.It is a high-speed centrifuge with strong separating capacity. The bowl of the separator rotates around its axis and forms a strong centrifugal force and the centrifugal force separates the suspension into liquid and solid. It is suitable for clarifying the liquids with very fine solids content.
Working principle:
The suspension is fed through the bottom of the machine and introduced into the bowl which has one outlet at the top. The clarified liquid comes out from the top outlet and leaving the solids deposit on the bowl's wall. When the bowl full accumulated with solids, there will be no liquid comes out, the machine shall be power off.
Technical parameters:
|
Model |
Drum | Nozzle diameter (mm) |
Productivity(water flow) (kg/h) |
Power |
Weight (kg) |
||||
|
Inner diameter |
Height |
Volume |
Rotary speed |
Separation factor | |||||
| GQ45 | 45 | 280 | 0.4 | 28000 | 90 | 2,3 | 100 | 0.55 | 90 |
| GQ75 | 75 | 450 | 2.2 | 19000 | 300 | 4,6 | 600 | 1.5 | 300 |
| GQ105 | 105 | 730 | 6 | 16300 | 480 | 6,8 | 1200 | 2.2 | 570 |
| GQ125 | 125 | 730 | 7.4 | 15000 | 520 | 5,8,9 | 1500 | 3.0 | 610 |
| GQ150 | 142 | 730 | 10 | 14000 | 550 | 8,10,12 | 2500 | 3.0 | 665 |
