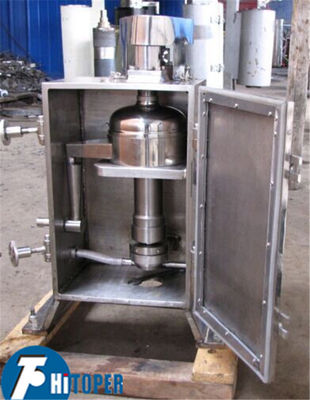

Stainless Steel Industrial Tubular Centrifuge For Fuel / Oil / Yeast / Protein Fine Separation

Stainless Steel Industrial Tubular Centrifuge For Fuel / Oil / Yeast / Protein Fine Separation

    • Stainless Steel Industrial Tubular Centrifuge For Fuel / Oil / Yeast / Protein Fine Separation
    • Stainless Steel Industrial Tubular Centrifuge For Fuel / Oil / Yeast / Protein Fine Separation
  • Stainless Steel Industrial Tubular Centrifuge For Fuel / Oil / Yeast / Protein Fine Separation

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: GF75

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 10-15 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 60 sets per month for this tubular centrifuge
    Contact Now
    Detailed Product Description
    Drum Diameter: 75mm Drum Volume: 2.7L
    Drum Rotate Speed: 21000r/min Separation Factor: 22500
    Water Flow Capacity: 500kg/h Power: 1.5kw
    Inner Dia.: 75mm Motor: 380V,50hz Or As Require
    Material: Stainless Steel Drum Height: 450mm
    Warranty: 1 Year Operation: Manual
    Application: Liquid Liquid Solid Separation
    High Light:

    high speed centrifuge machine

    ,

    tubular bowl centrifuge

    Stainless Steel Industrial Tubular Centrifuge For Fuel Oil Yeast Protein Fine Separation





    GF series tubular centrifuge: it is mainly used for various industrial suspension very difficulty to separate, especially suitable for liquid-liquid suspension with small specific gravity difference between solid phase and liquid phase, and liquid-liquid-solid separation with few impurities. liquid with larger Density deposit on the outer wall of the drum. liquid with smaller Density deposit on the inner wall of the drum. Both of them get to the upper part of the drum to discharge. solid particles deposit on the drum wall to be artificially discharged after downtime.



    It is a high speed separator. It has better separation. The separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats. The upper of the bowl is flexible mainshaft and the lower of it is damp floating. The mainshaft is connected with a driven wheel by the coupling seat with the buffer.





    Working principle:


    When works, the mixed solution is sprayed onto the bowl from the inlet on the bottom, with the strong centrifugal force, allowing the milk flow upper along the wall of the bowl, together with different gravity of the oil and water, heavy liquid(water) forms outer ring and light liquid(oil) forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little particle is settled on the wall of the bowl and discharged manually after the machine stops.

    GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually discharged after the machine is shut down.





    Application Scope

    The high speed tubular centrifuge is mainly used in liquid-solid separation, liquid-liquid-solid separation in bio-pharmacy, beverage, chemical industry. It is an ideal separation equipment by centrifuging, especially for those feeding with little gravity difference, and small dimension in diameter.
    It is mainly used for liquid-solid separation. For example:
    1) Clarifying process for pharmaceutical industry(medicine intermediate, herb medicine extracts, medicinal plant fiber, oral liquid etc)
    2) Extraction of protein, seaweed and jelly(plant extraction, soy bean lecithin extraction, herb extraction, pigment extraction)
    3) Refinement molasses




    Technical parameters:



    Model

    Drum

    Nozzle

    diameter
    (mm)

    Productivity

    (water flow)

    (kg/h)

    Power
    (KW)

    Weight
    (kg)

    Inner diameter
    (mm)

    Height
    (mm)

    Volume
    (L)

    Rotary speed
    (r/min)

    Separation

    factor

    GF45 45 280 0.4 28000 19800 2,3 100 0.55 90
    GF75 75 450 2.2 19000 15700 4,6 600 1.5 300
    GF105 105 730 6 16300 15620 6,8 1200 2.2 570
    GF125 125 730 7.4 15000 18000 5,8,9 1500 3.0 610
    GF150 142 730 10 14000 15700 8,10,12 2500 3.0 665
