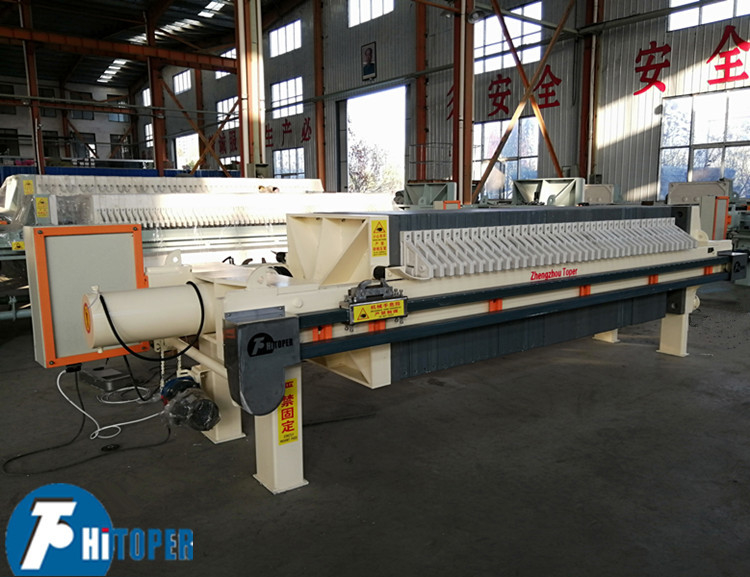

PLC Controlled Automatic Membrane Filter Press , Wastewater Treatment Filter Press Unit

PLC Controlled Automatic Membrane Filter Press , Wastewater Treatment Filter Press Unit

    • PLC Controlled Automatic Membrane Filter Press , Wastewater Treatment Filter Press Unit
    • PLC Controlled Automatic Membrane Filter Press , Wastewater Treatment Filter Press Unit
    • PLC Controlled Automatic Membrane Filter Press , Wastewater Treatment Filter Press Unit
  • PLC Controlled Automatic Membrane Filter Press , Wastewater Treatment Filter Press Unit

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XG50/870-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 20-30 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 500 sets per month for this membrane filter press
    Contact Now
    Detailed Product Description
    Filter Area: 50m2 Filter Plate Size: 870*870mm
    Filter Chamber Volume: 676L Filter Number: 37pcs
    Filtrating Pressure: 0.6Mpa Motor Power: 4.0kw
    Contorl: PLC Automatic System Voltage: Customized
    Function: Separation,concentration,extract,refine,clarify Etc. Application: Food,beverage,chemcial,mineral,pharmacy,biological Etc.
    Color: Orange Or Customized Conditon: New
    High Light:

    sludge dewatering equipment

    ,

    filter press machine

    PLC controlled automatic membrane filter press dewatering municipal in wastewater treatment

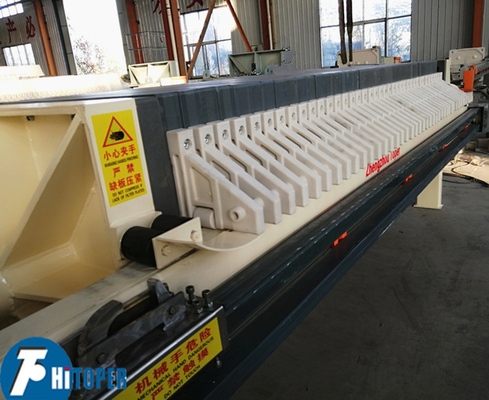

    Membrane filter press consists of the membrane plate and the chamber plate, when works, with the help of the feeding pump, the solid and liquid are separated by the filter cloth, after the cake forms, and then air or water goes into the membrane plate, the second squeezing happens by the membrane plates swell up, more liquid will flow out to give you a lower cake mositure. membrane filter press is suitable for the filtration of viscous material and user who has higher requirements about the moisture content of filter cake.





    This membrane filter press is hot sale in the below industry:



    Effluent treatment plants: Textile, Paper, Leather, Jute, Sewages, Industrial and municipal waste water

    Ceramics: Clay, Porcelain, Fine earth, Marble and Granite

    Metallurgy: , Electroplating and Electro Polishing, Steel Mill Waste, Nickel, Copper, Zinc Lead, Silver

    Pharma Industries: Antibiotic, Syrup, Intermediates and Bulk Drugs

    Chemical Industries: Basic Chemicals, Organic and Inorganic, Resins, Starch, Enzymes, Pesticides, Activated Clay, Phosphoric compounds, Marine Chemicals

    Dye Stuffs: Pigments, Dyes, Intermediates

    Food Indust: Vegetable Oils, Cane Juice, Food Colors Soups, Distilleries, Dairies and Hotels





    With membrane filter press, also you can choose other automatic device.



    1. Automatic filter cloth varicose device, that is with some viscosity slurry, this device we design can change angle of the filter cloth into V shape, at the same time, the spring conned with vloth vibrates and the filter caks fall off.

    2. Automatic bomb door. When filtration process, due to capollary leakage of cloth, there maybe a drip between the filter plates, so not only causing environmental pollution, but also increasing the moisture content of the mud, our design bomb door can collect leakage, then avoid pollution contamination of the filter press work site.

    3. Belt conveyor, it can help to collect the cake and delivery to the place you prefet to.

    4. Sludge storage bucket. After filtration, the filter cake canbe unloaded down to the matching sludge storage bucket, easy to focus on shipping.





    All technical data of our membrane filter press:





    Type

    Filter area(m2) Filter plate size(mm) Filter cake thickness(mm) Filter chamber volume(L)

    Filter plate number

    (pcs)

    Filtrating pressure

    (Mpa)

    Motor power

    (kw)

    Weight

    (kg)

    Dimension

    (L×W×H)(mm)

    XG30/870-30U 30 870×870 30 427 23 0.6 4.0 2680 3490×1250×1300
    XG40/870-30U 40 534 29 3050 3880×1250×1300
    XG50/870-30U 50 676 37 3465 4400×1250×1300
    XG60/870-30U 60 818 45 4003 4920×1250×1300
    XG70/870-30U 70 960 53 4584 5240×1250×1300
    XG80/870-30U 80 1103 61 5082 5760×1250×1300
    XG50/1000-30U 50 1000×1000 665 27 0.6 4.0 4352 4270×1500×1400
    XG60/1000-30U 60 808 33 4480 4770×1500×1400
    XG70/1000-30U 70 950 39 5263 5130×1500×1400
    XG80/1000-30U 80 1093 45 5719 5560×1500×1400
    XG100/1000-30U 100 1378 57 6555 6410×1500×1400
    XG120/1000-30U 120 1663 69 7466 7260×1500×1400



    Type

    Filter area

    (m2)

    Filter plate size(mm)

    Filter cake thickness

    (mm)

    Filter chamber volume

    (L)

    Filter plate number

    (pcs)

    Filtrating pressure

    (Mpa)

    Motor power

    (kw)

    Weight

    (kg)

    Dimension

    (L×W×H)

    (mm)

    XGZY80/1250-35U 80 1250×1250 35 1364 29 0.6 4.0 10900 4830×1800×1600
    XGZY100/1250-35U 100 1680 37 11750 5440×1800×1600
    XGZY120/1250-35U 120 2092 45 12600 6060×1800×1600
    XGZY150/1250-35U 150 2547 55 13620 6820×1800×1600
    XGZY160/1250-35U 160 2729 59 14470 7130×1800×1600
    XGZY200/1250-35U 200 3457 73 15320 8200×1800×1600
    XGZY240/1250-35U 240 4093 89 16170 9420×1800×1600
    XGZY250/1250-35U 250 4276 91 17020 9570×1800×1600
    XGZY200/1500-35U 200 1500×1500 3922 49 7.5 26120 7140×2200×2000
    XGZY250/1500-35U 250 4463 61 26930 7730×2200×2000
    XGZY300/1500-35U 300 5274 73 28160 8720×2000×1820
    XGZY350/1500-35U 350 6221 85 29600 10110×2000×1820
    XGZY400/1500-35U 400 7032 99 31500 11260×2000×1820
    XGZY450/1500-35U 450 7844 111 33400 12250×2000×1820
    XGZY500/1500-35U 500 8791 123 33380 13240×2000×1820
    XGZY600/2000-40U 600 2000×2000 40 12000 85 54164 13030×3520×2500
    XGZY700/2000-40U 700 14000 99 58300 14390×3000×2500
    XGZY800/2000-40U 800 16000 107 624460 15770×3000×2500
    XGZY900/2000-40U 900 18000 127 66620 17150×3000×2500
    XGZY1000/2000-40U 1000 20000 141 70780 18530×3000×2500





    Why choose us:



    1. Manufacture experience,

    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

    2. Technology capacity,

    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

    3. Our superiority,

    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

    4. Best after-sales,

    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
