| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | BQ1/320 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | in 10 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 50 sets per month |
| Filtration Area: | 1m2 | Filter Plate Size: | 320*320mm |
|---|---|---|---|
| Filter Chamber Volume: | 15L | Plate And Frame Total Number Number: | 9pcs |
| Filtrating Pressure: | 0.6Mpa | Customized: | Provided |
| High Light: | stainless steel filter press,dewatering filter press |
||

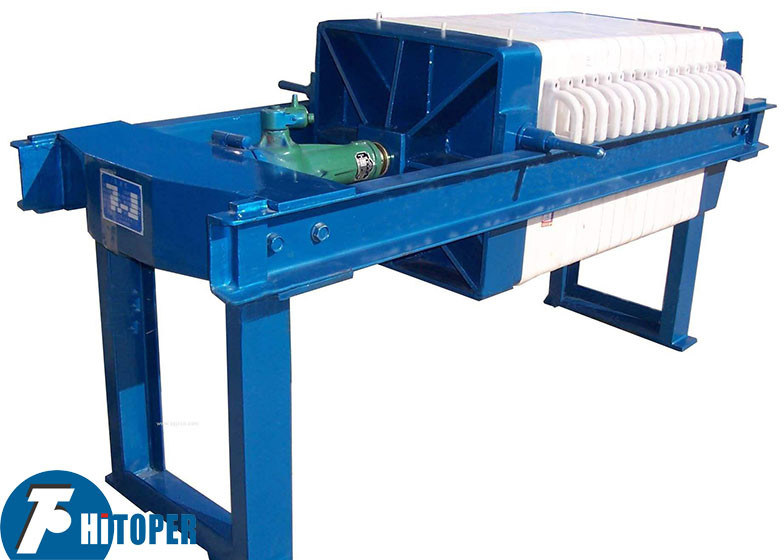

Manual Jack Operation Plate And Frame Filter Press With 1m2 - 40m2 Filtration Area
Mainly includes two types filter press in our company.
1. Chamber type. there is only one type filter plate on the beam, that is chamber fitler press.

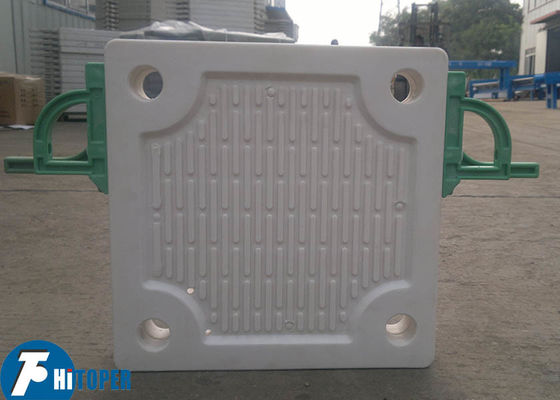

2. Plate and frame type, there is two types filter plates on the beam, together to form the chamber.
1. A screw jack as the pressing device, don’t need power.
2. Filter area ranges from 1m2 to 40m2, smaller than hydraulic or automatic filter press, better for beginner start production one.
3. Chamber type and plate & frame type for your choosing.
This Manual operation/jack screw filter press is the simplest type one, it consists of screw jack, beam, filter plate and filter cloth.
Operation process:
1. Press. Sort filter cloth to be flat and no folding, then put the strength adding rod into the jack of screw jack. Adjust the direction valve, rotate the screw jack in clockwise, until one man’s strength is use up.
2. Return. Put the strength adding rod into the jack of screw jack, adjust the direction valve, rotate out the screw jack in counterclockwise.
3. In the process of press or return, if the slippage situation comes out, it shows your direction valve’s direction is wrong. Change to another direction is ok.
4. The press strength is ok with one man’s strength. If there is leakage, add the press strength.
5. After the filtration process, return the head plate, pull the filter plates one by one to discharge the cake, then sort the filter plate and cloth, to start another cycle.
Technical data,
| Type |
Filter area (m2) |
Filter plate size (mm) | Cake thickness (mm) | Chamber volume (L) | Plate number (PCS) | Filtrating pressure(MPa) | Weight (kg) |
Dimensions (mm) (L×W×H) |
| XQ1/320-30U | 1 | 320 x 320 | 30 | 15 | 4 | 0.6 | 490 | 1070×570×660 |
| XQ2/320-30U | 2 | 31 | 9 | 528 | 1295×570×660 | |||
| XQ3/320-30U | 3 | 46 | 14 | 550 | 1520×570×660 | |||
| XQ4/450-30U | 4 | 450 x 450 | 60 | 9 | 0.6 | 780 | 1630×800×900 | |
| XQ6/450-30U | 6 | 91 | 14 | 830 | 1880×800×900 | |||
| XQ8/450-30U | 8 | 121 | 19 | 880 | 2130×800×900 | |||
| XQ10/450-30U | 10 | 151 | 24 | 930 | 2380×800×900 | |||
| XQ12/450-30U | 12 | 182 | 29 | 980 | 2630×800×900 | |||
| XQ15/450-30U | 15 | 225 | 36 | 1030 | 2980×800×900 | |||
| XQ16/450-30U | 16 | 243 | 39 | 1050 | 3130×800×900 | |||
| XQ15/630-30U | 15 | 630 x 630 | 226 | 18 | 0.6 | 1257 | 2370×1080×1060 | |
| XQ20/630-30U | 20 | 297 | 24 | 1347 | 2670×1080×1060 | |||
| XQ30/630-30U | 30 | 452 | 37 | 1693 | 3320×1080×1060 | |||
| XQ40/630-30U | 40 | 595 | 49 | 2193 | 4020×1080×1060 |
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
