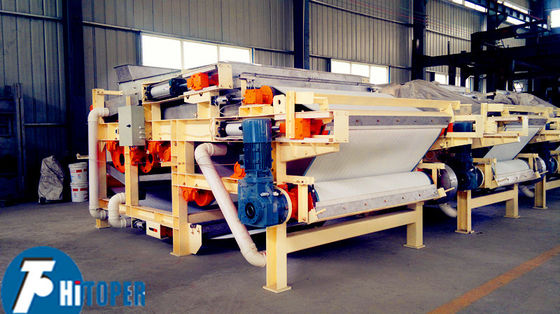

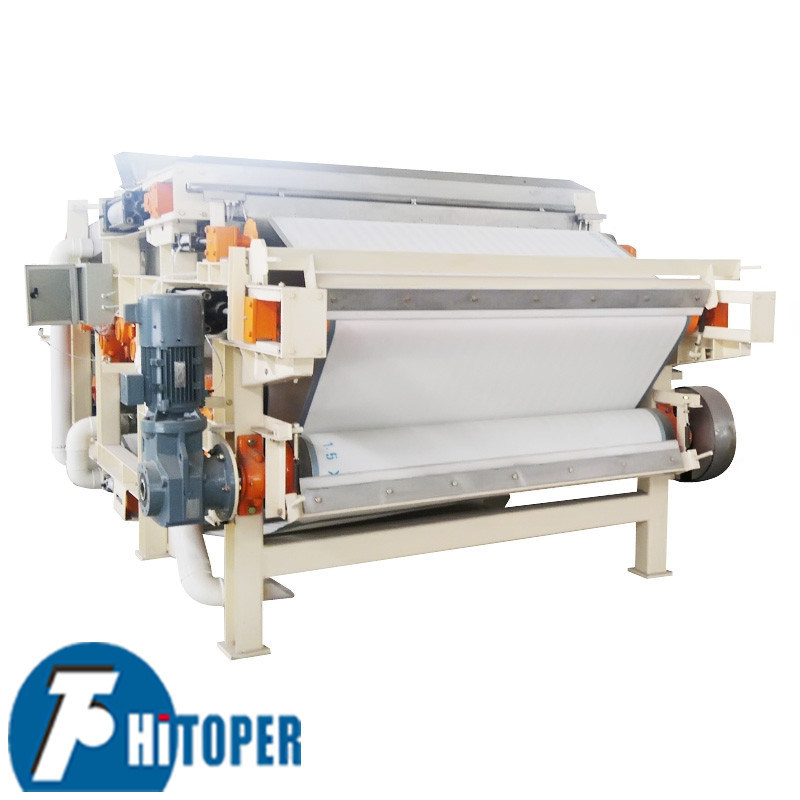

Smooth Belt Conveyor Juice Filter Press , Solid Liquid Separation Belt Press Machine

Smooth Belt Conveyor Juice Filter Press , Solid Liquid Separation Belt Press Machine

    • Smooth Belt Conveyor Juice Filter Press , Solid Liquid Separation Belt Press Machine
    • Smooth Belt Conveyor Juice Filter Press , Solid Liquid Separation Belt Press Machine
  • Smooth Belt Conveyor Juice Filter Press , Solid Liquid Separation Belt Press Machine

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DY1000

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Standard container
    Delivery Time: about 30 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 10 sets per month for this belt filter press
    Contact Now
    Detailed Product Description
    Filter Belt Width: 1000mm Capacity: 8-12m3/h
    Dry Volume: 150-300kg/h Moisture Content: 63-84.5%
    Motor Power: 1.5kw Reference Dimension: 4250*1880*2100mm
    Weight: 2920kg Application: Leather,paper, Printing And Dyeing
    High Light:

    belt press machine

    ,

    filter press unit

    Smooth Operation Conveyor Juice Belt Press For Solid Liquid Separation from Professional supplier factory





    DY series belt filter press is the national research institutes with the introduction of foreign advanced technologies based on the successful development of new models, widely used in urban waste water treatment, chemical, oil refining, metallurgy, paper, leather, food, coal washing, printing and dyeing industry, sludge dewatering. Machine continuous operation, high degree of automation, energy saving, high efficiency, easy maintenance, is ideal for sludge dewatering equipment.





    Belt filter press design features:



    1. Austrial advanced technology, beautiful appearance.

    2. Big structural rigidity, smooth operation, low noise.

    3. Configure the advanced pre-enrichment equipment, sludge flocculation effect, low operating costs.

    4. Gravity dewatering zone configuration advanced distributor, distribution of material to extend the filter life.

    5. With a long wedge-shaped gravity dewatering zone and dewatering zone, the material dehydrated fully to ensure that material will not overflow in the press area.

    6. Rolls arranged in a scientific and orderly system, gravity dehydration, wedge-shaped dehydration, press dehydration were discharged without disturbing each other. Ratio of large diameter roller press dehydration, dehydration effect, the production capacity, energy efficient.

    7. From feeding to discharge the cake continuous operation, high degree of automation, PLC interface can be installed as needed, to facilitate centralized control computer.

    8. Power transmission by mechanical or frequency conversion speed range, wide adaptability.

    9. Backwash device with reliable, guaranteed filter with the dewatering effect.

    10. Pneumatic tension and pneumatic automatic correction device to ensure normal operation of the filter with the security.

    11. Safe and reliable operation, infrared security and safety of a full range of emergency stop devices.

    12. Can be configured according to different materials with different specifications of the filter, filtering and high precision.





    Compostion of parts:



    1. Frame

    2. Slurry distribution device

    3. Upper tray of liquid receiving

    4. Dehydration roller system

    5. Squeezing roller system

    6. Tensioning device

    7. Middle tray of liquid receiving

    8. Washing device

    9. Upper adjusting roller

    10. Upper filter belt

    11. Upper scraper

    12. Bottom scraper

    13. Driving device

    14. Bottom filter belt

    15. Bottom adjusting roller

    16. Bottom tray of liquid receiving



    NOTE:



    1. The machine works smoothly, no vibration impact

    2. Bade load is 1.6 times of machine weight. The thickness of concrete durface layer, set of steel bar of concrete foundation are detremined by the user.

    3. In addition to the side near to the converyor belt, the other three sides is about 1m away from the machine.

    4. Making water collection tank is to collect water, also determined by user

    5. The unit is mm.





    Belt filter press technical parameters:



    Type

    DY750 DY1000 DY1500 DY2000 DY2500 DY3000
    Filter width(mm) 750 1000 1500 2000 2500 3000

    Capacity Into concentration (s.s.1.5~2.5%)

    6~9 8~12 12~18 16~24 20~30 28~38
    Dry volume(kg/hr) 110~225 150~300 225~450 300~600 375~750 420~950
    Moisture content(%) 63~84.5 63~84.5 63~84.5 63~84.5 63~84.5 63~84.5
    Motor power(HP) 1.5 1.5 1.5 2.2 2.2 2.2

    Reference Dimensions

    (mm)

    L 4250 4250 4250 4250 4250 4250
    W 1630 1880 2380 2920 3420 3920
    H 2100 2100 2100 2100 2100 2100
    Weight(kgs) 2570 2920 3590 4490 5520 6220





    Belt filter press typical slurry usage:



    Urban sewage treatment, Metallurgical and mining, steel plant, coal plant, chemical, petrochemical, drewery, dyeing, tannery, paper making factory and so on.





    Our Company



    Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.





    Our service



    1. We have professional person on line to advise you the most suitable type of machie according to your requirement.

    2. Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

    3. Arrange the schedule if you pay a visit to our factory

    4. Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
